Configuration Setting: In the Configuration Setting, the following
settings are available: Product Name, MAC Address, IP Address,
Subnet Mask, Gateway, Set Trap to (Trapping IP Address), System
name, Location, Password, Group Interval and DHCP ON/OFF (OFF
is default). All of value in this dialog are design to setting switch not
SmartConsole Utility. The Group Interval send IGMP v1 report
packet by switch, it is for SmartConsole Utility to discovery our
switch when we in IGMP protocol, zero means disable Group Interval,
and 120~1225 means send IGMP v1 report according the value which
unit is seconds.
After selecting the device from the Discovery List or Monitor List and
pressing Configuration Setting, modify the information necessary and
press “Set”.

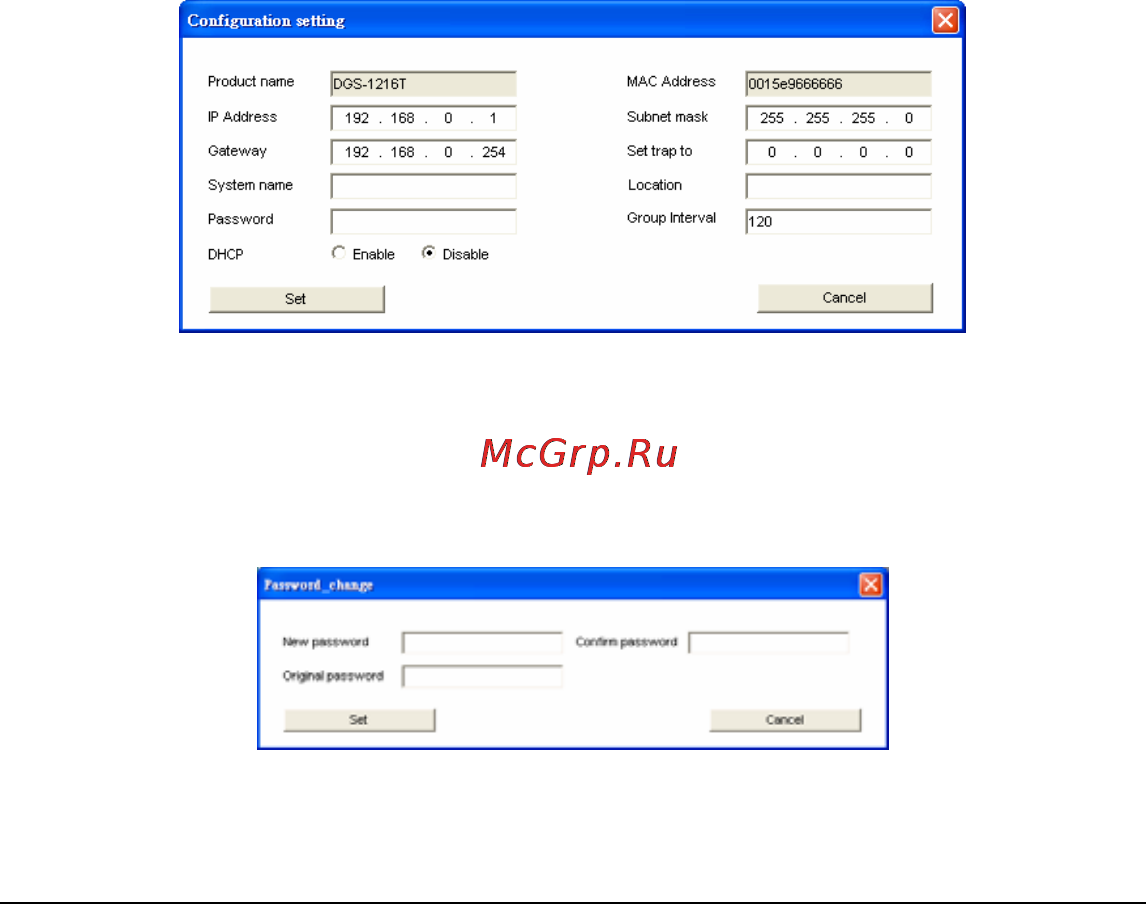

Figure 10 – Configuration Setting
Password Change: To change the password, fill in the new and
original password, and press “Set”.
Figure 11 – Password Change
