Configuration > Jumbo Frame

By default, the Jumbo Frame function is set to Disabled. Enabling this

function will allow the Switch to receive packets sizes of up to 10,240

bytes.

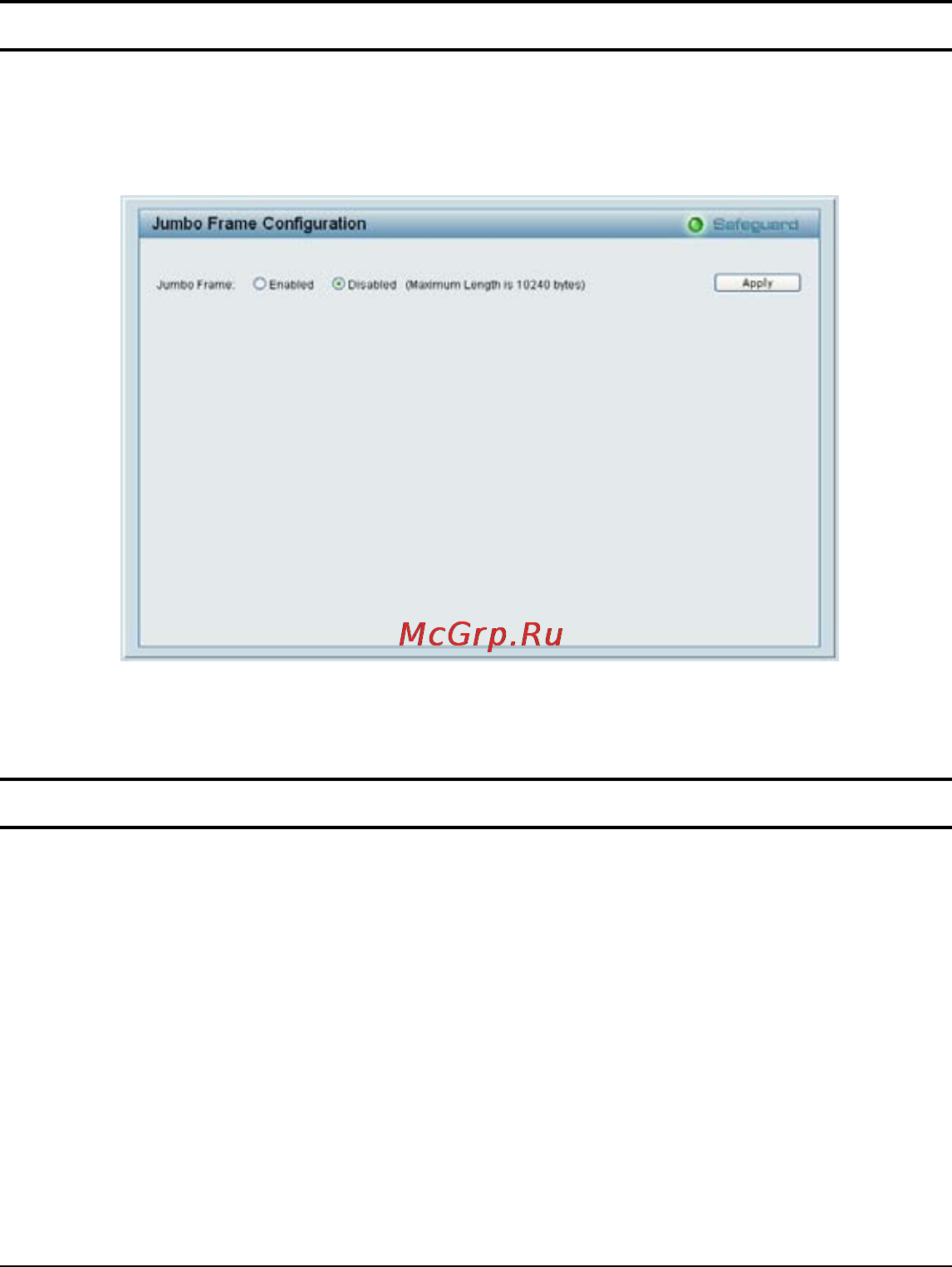

Figure 28 – Configuration > Jumbo Frame

Configuration > 802.1Q VLAN

The IEEE 802.1Q VLAN Configuration page provides powerful VID

management functions. By default, VID is 01, is named “default”, and

includes all 16 ports as “Untagged” (see Figure 29).

Rename: Press to rename the VLAN group.

Delete VID: Press to delete the VLAN group.

Add New VID: Press to create a new VID group, assigning ports

from 01 to 16 as Untag, Tag, or Not Member. A port can be

“Untagged” in only one VID. To save the VID group, press Apply.
