D-Link DES-3250TG Standalone Layer 2 Switch

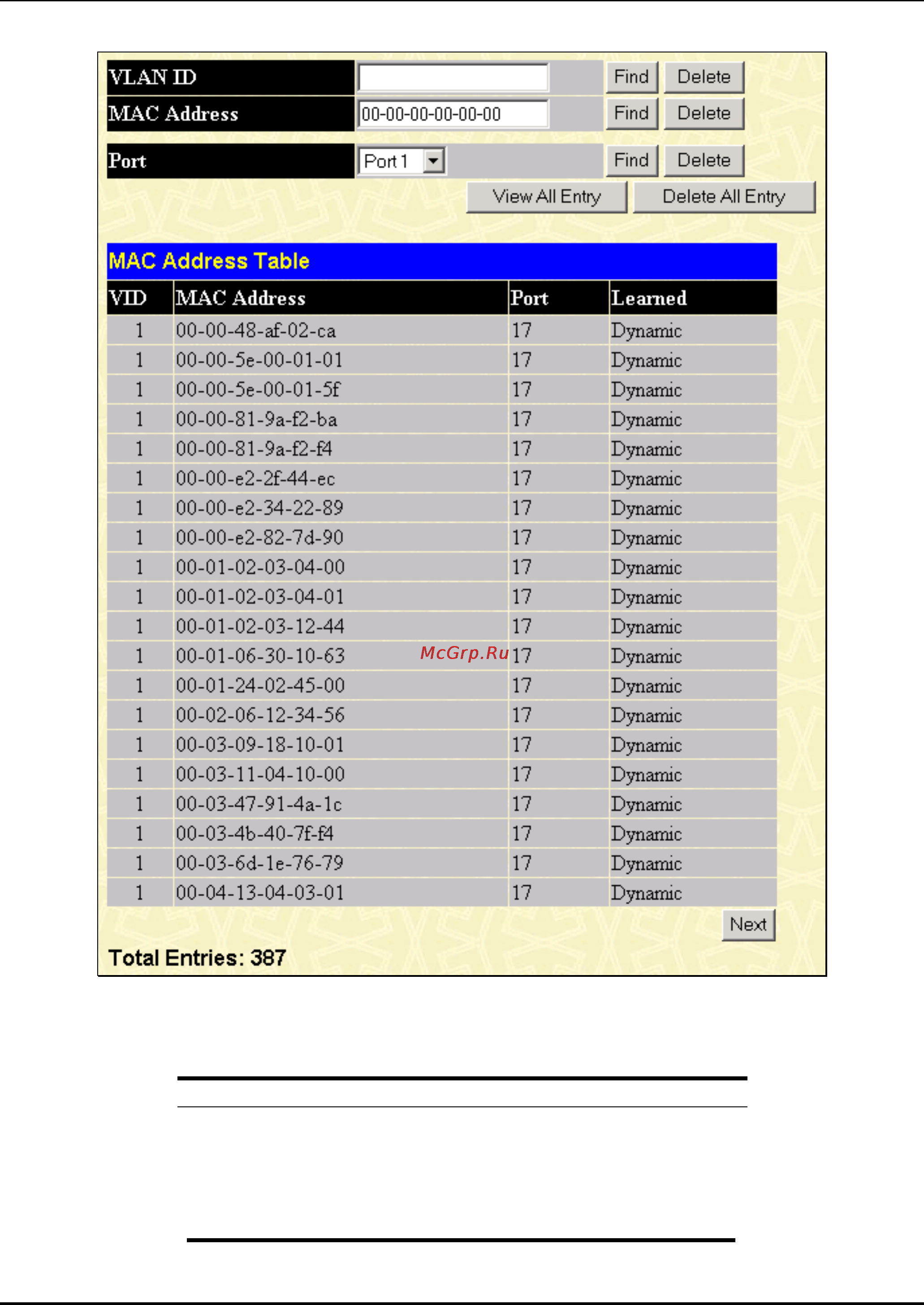

Figure 9- 15. MAC Address Table window
The following fields can be set:
Parameter Description
VLAN ID
Enter a VLAN ID for the forwarding table to
be browsed by.
MAC Address
Enter a MAC address for the forwarding
table to be browsed by.
138
