D-Link DES-3250TG Standalone Layer 2 Switch

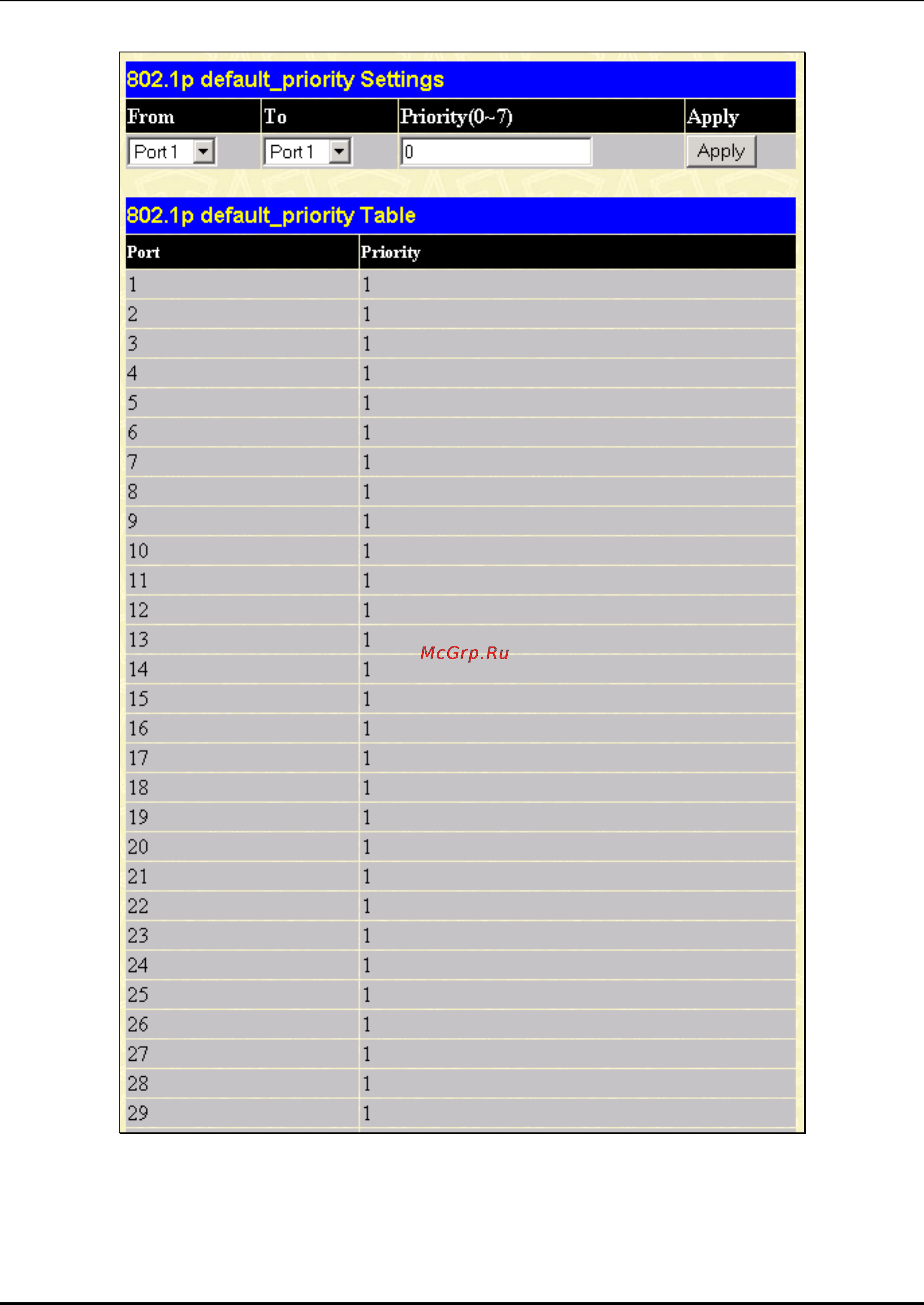

Figure 7- 33. 802.1p default_priority Settings window
This window allows you to assign a default 802.1p priority to any given port on the switch. The priority queues are numbered
from 0 − the lowest priority − to 7 − the highest priority.
73
