DGS-3024 Gigabit Ethernet Switch Manual
11

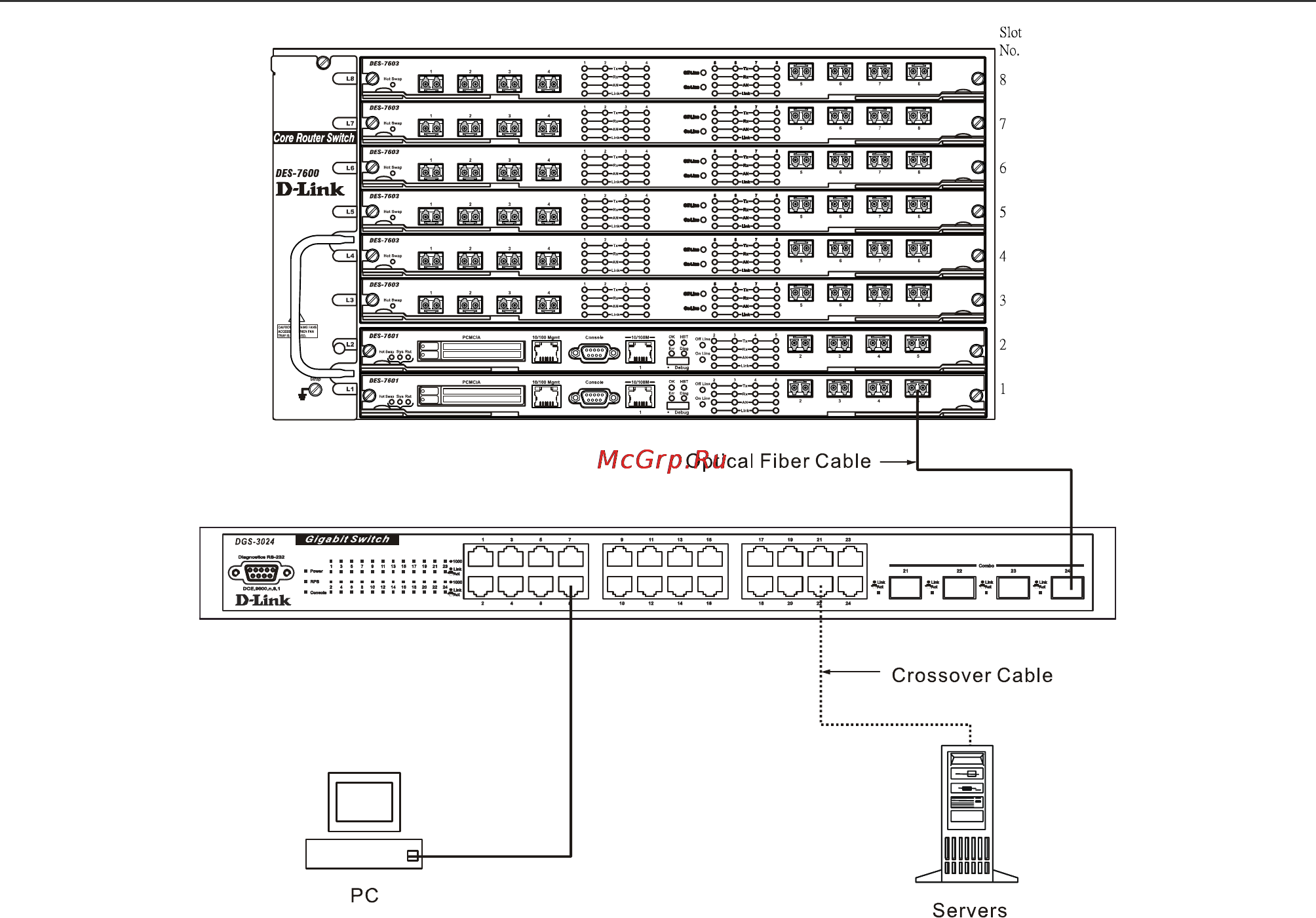

Figure 4- 3. Switch connected by optical fiber cable to a Core Router Switch, with a server connected by
crossover cable and a PC connected by a Category 3, 4, 5, or 5e UTP/STP cable
