1. Removing the roller assembly

Please note:

If possible, it is recommended to unwrap the roller before removing it.

It will be easier to refit the roller without covering.

Wrapping/Unwrapping Program

• Set up the steam ironer in a working position.

• Plug the steam ironer into the mains supply.

• While pressing the „continuous steam“ key, switch on the steam ironer.

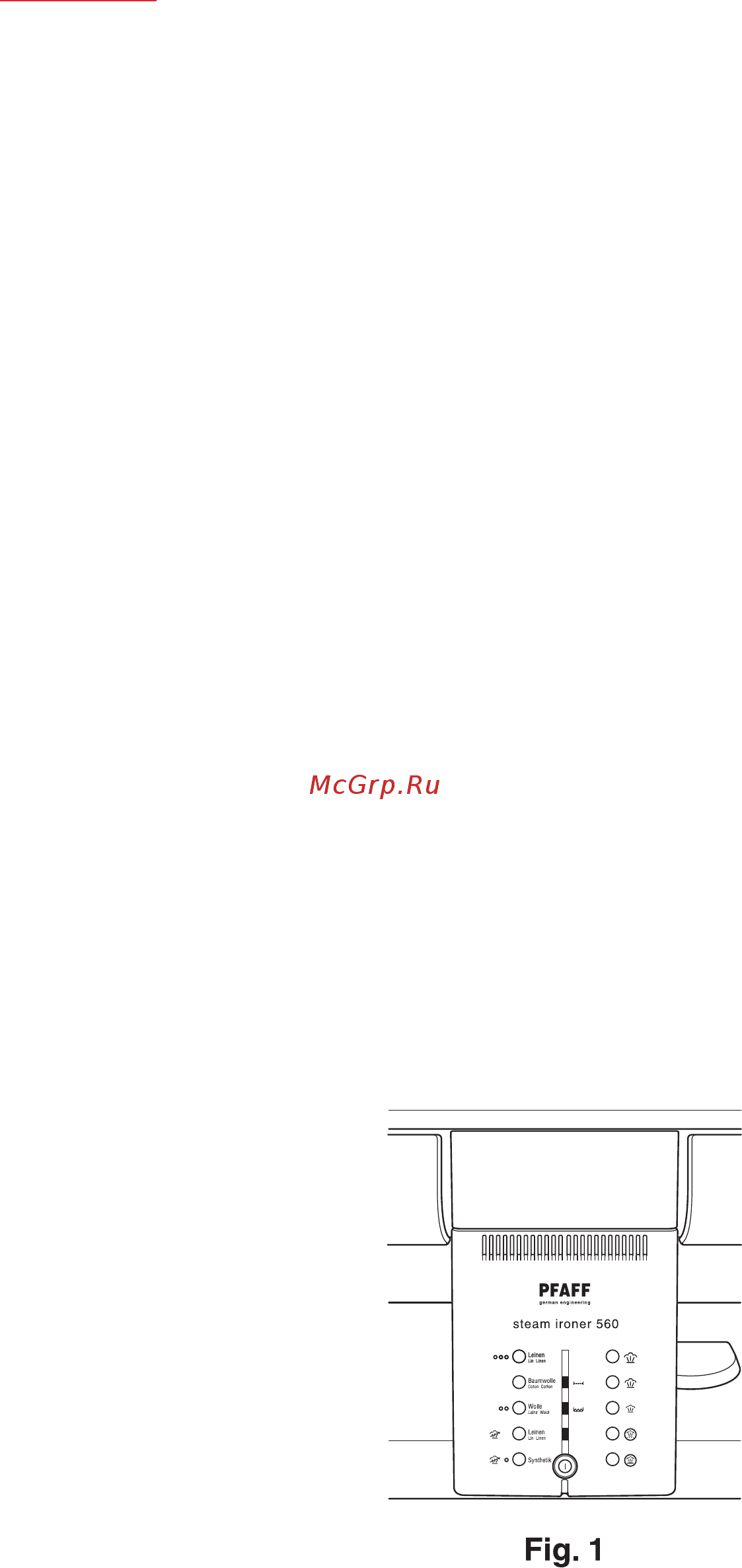

• The Wrapping Program is now activated and displayed (fig. 1).

• Operate the pedal bar and remove roller covering and padding.

• Press the „steam level 3“ key.

• Press the „steam level 1“ key.

• Operate the pedal bar. The roller assembly is lowered and stops. Release the pedal bar.

• Push lever 1 to the back. Loosen set screw in the lever and pull out the lever (fig. 1a).

• Press the „steam level 1“ key. The roller moves upwards.

• Terminate the program by switching off the steam ironer.

• Remove torx screws 2 to 5 from the arm covers.

• Remove arm covers.

• Switch on the steam ironer.

• Operate the pedal bar and bring crank in the position shown in fig. 1b.

• Switch off the steam ironer.

• Support lever bearing as shown in fig. 1b.

• Disconnect the steam ironer’s mains plug.

• Tilt the steam ironer over.

• Remove both screws 6 of the cover plate (fig. 1c).

• Remove cover plate.
