62D-Link DIR-635 User Manual

Section 4 - Security

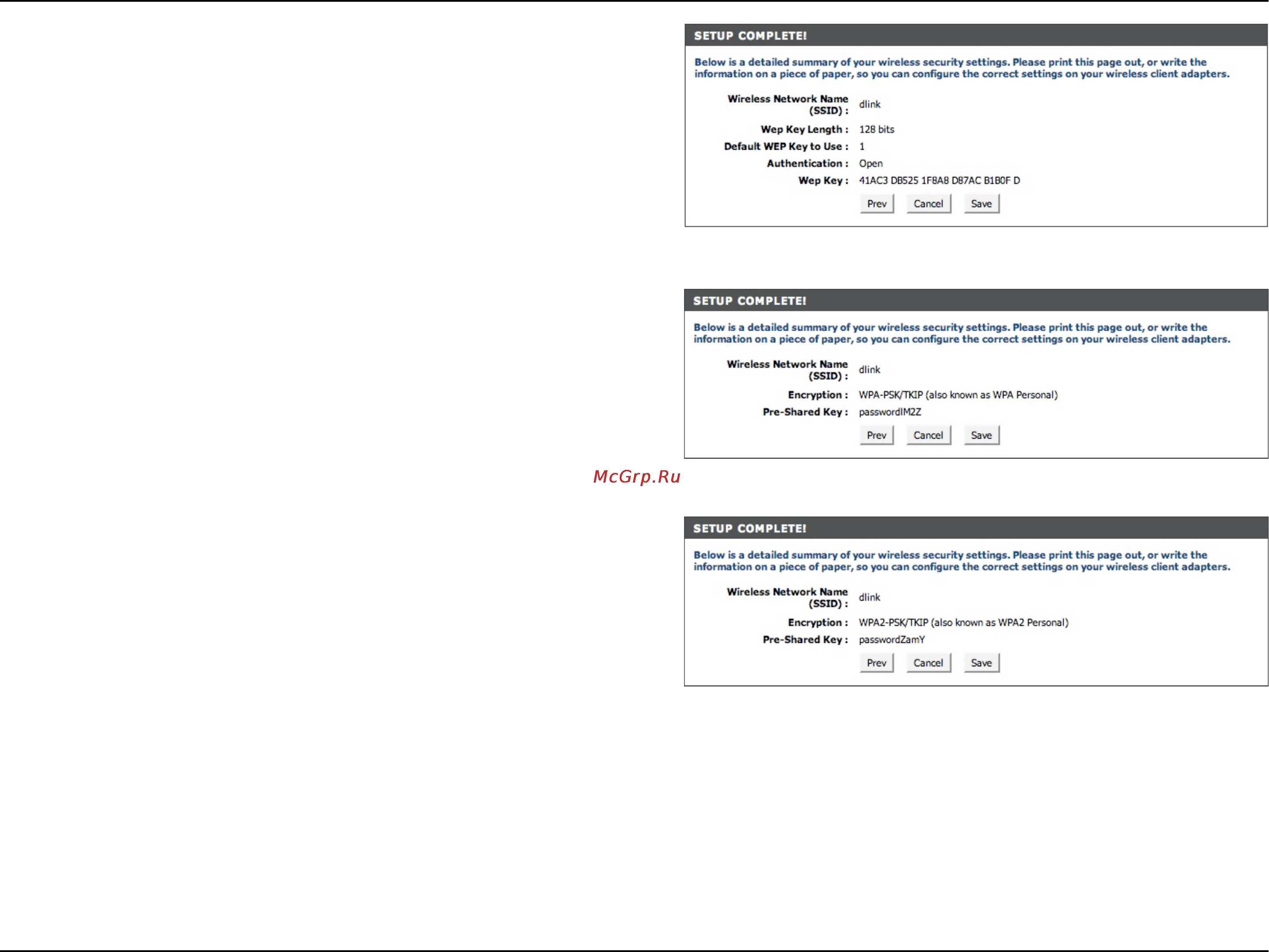

If you selected Good, the following screen will show you your

WEP key to enter on your wireless clients.

Click Save to nish the Security Wizard.

If you selected Better, the following screen will show you your

Pre-Shared Key to enter on your wireless clients.

Click Save to nish the Security Wizard.

If you selected Best, the following screen will show you your

Pre-Shared Key to enter on your wireless clients.

Click Save to nish the Security Wizard.

If you selected WPA-Enterprise, the RADIUS information will be displayed. Click Save to nish the Security Wizard.
