68
D-Link DWL-8200AP User Manual

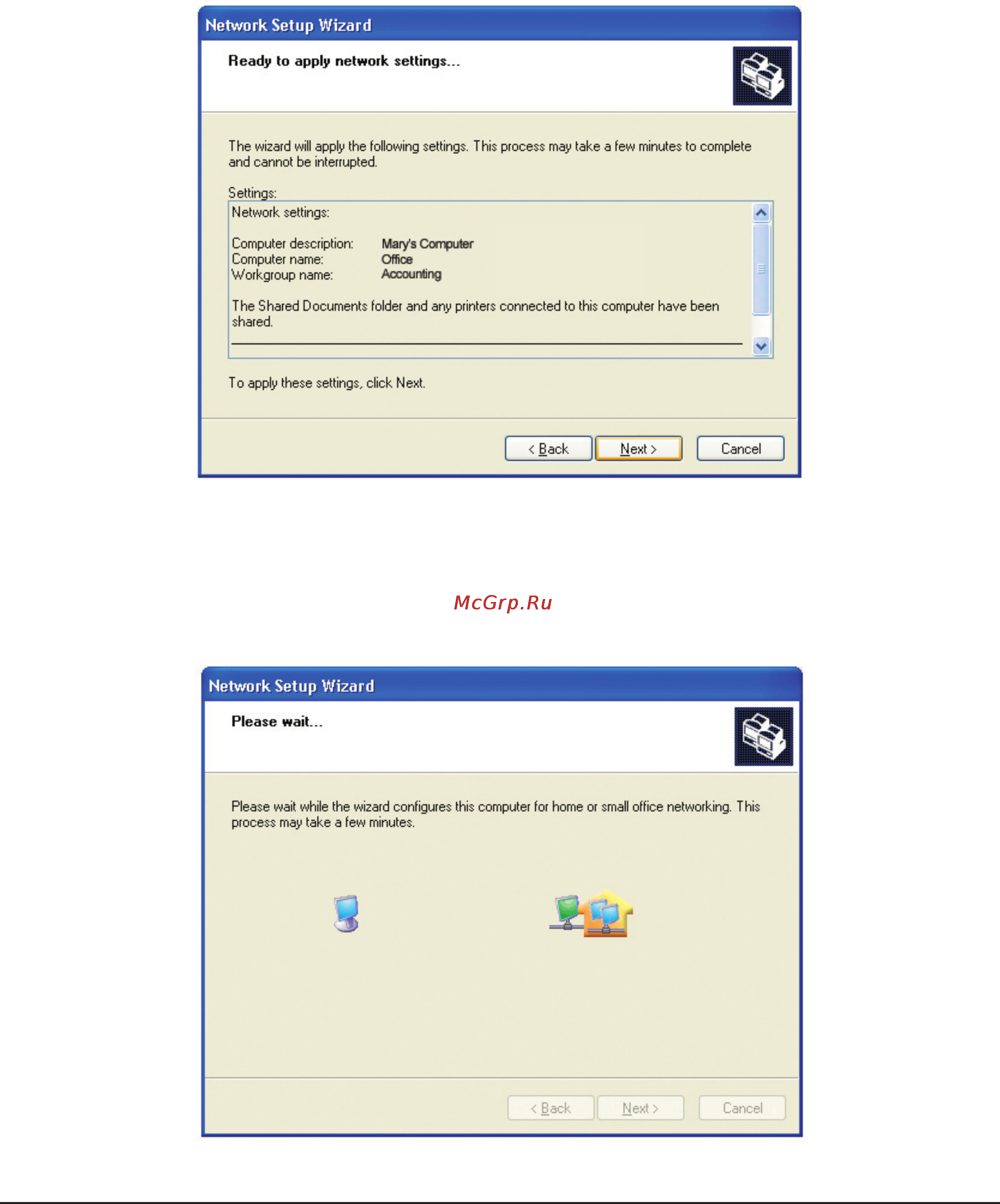

Please wait while the Network Setup Wizard applies the changes.
When the changes are complete, click Next.
Please wait while the Network Setup Wizard configures the computer. This may take a few
minutes.
