71
D-Link DWL-8200AP User Manual

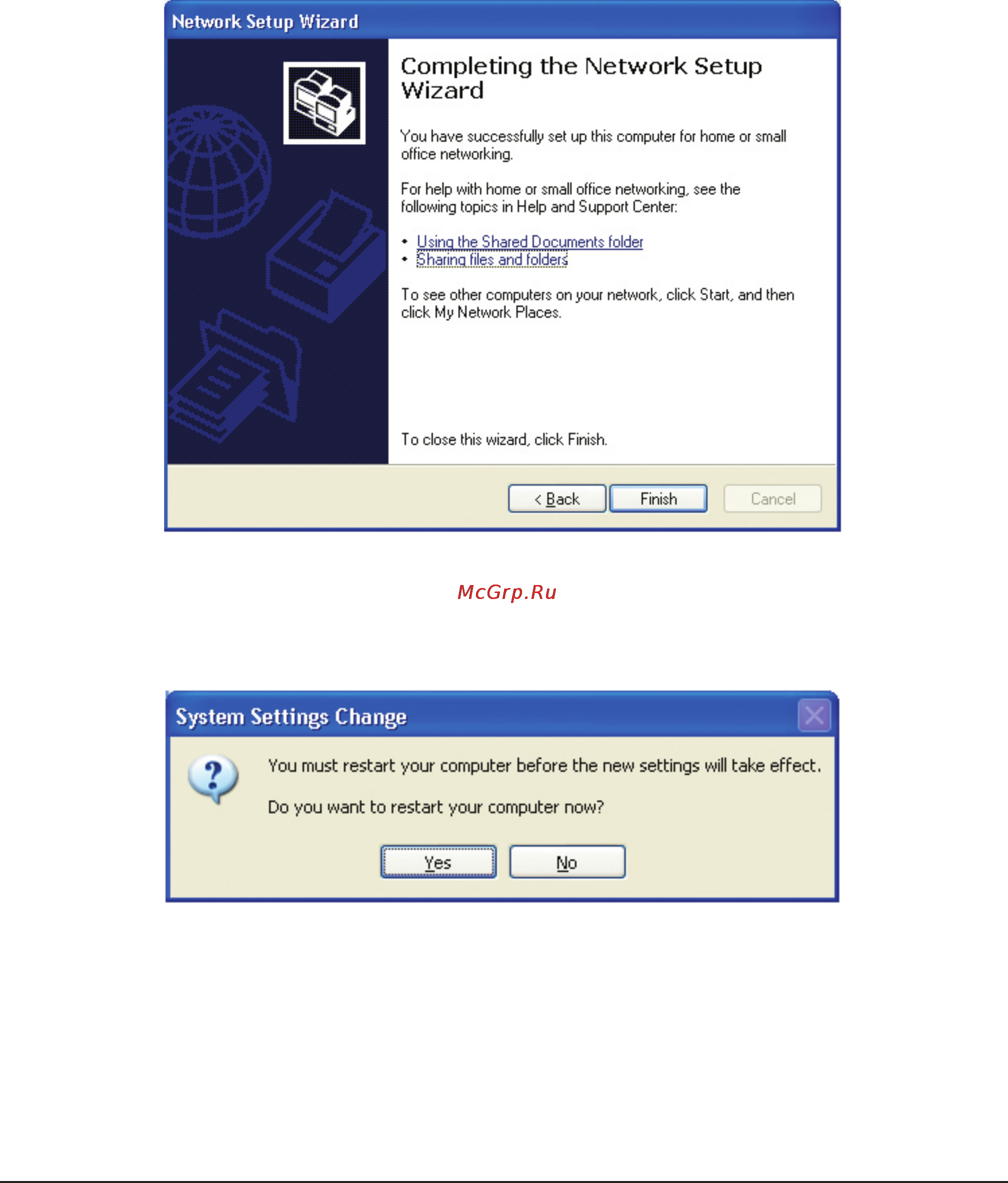

Please read the information on this screen, then click Finish to complete the Network Setup
Wizard.
The new settings will take effect when you restart the computer. Click Yes to restart the
computer.
You have completed configuring this computer. Next, you will need to run the Network Setup
Disk on all the other computers on your network. After running the Network Setup Disk on all
your computers, your new wireless network will be ready to use.
