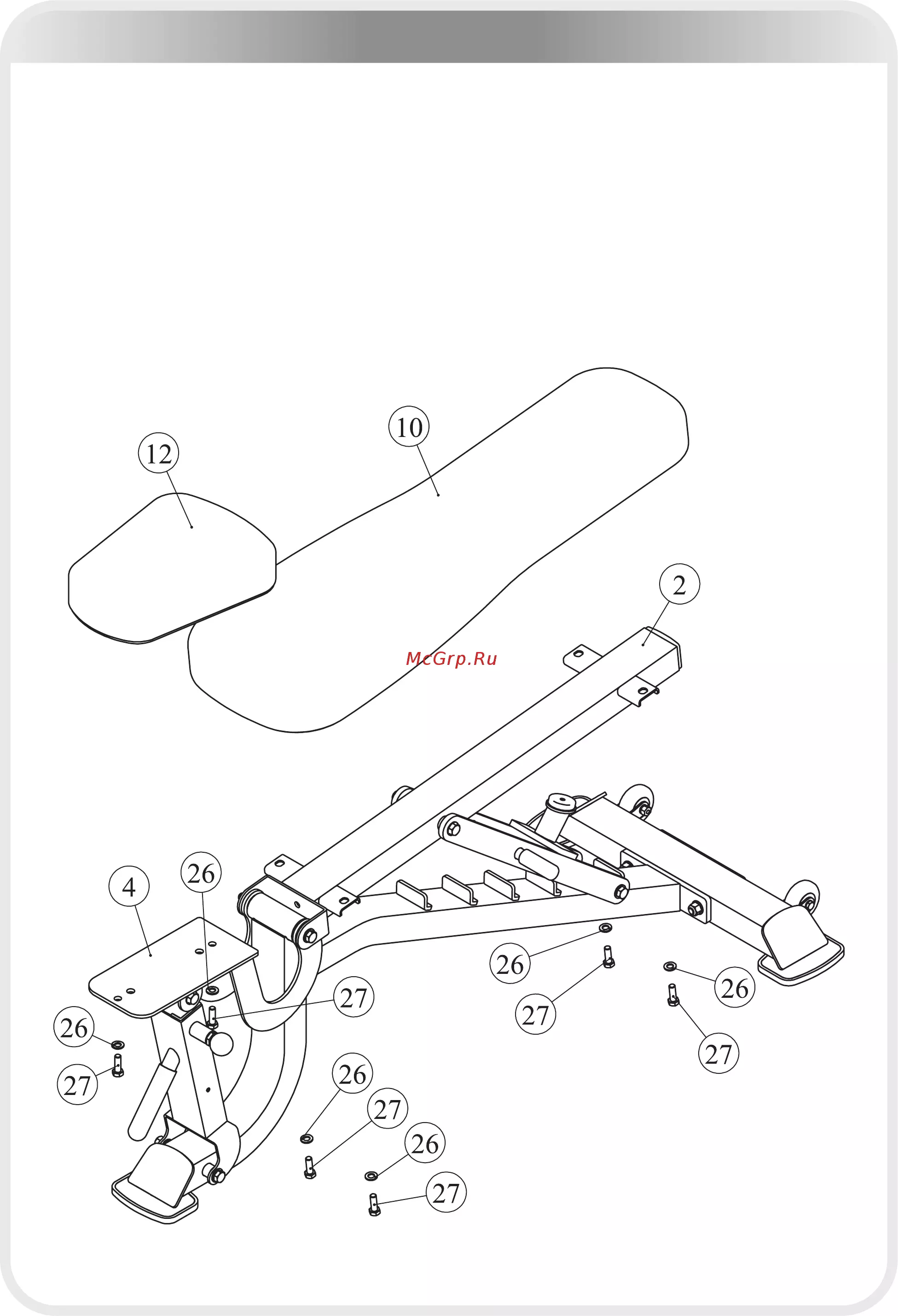

Assembly

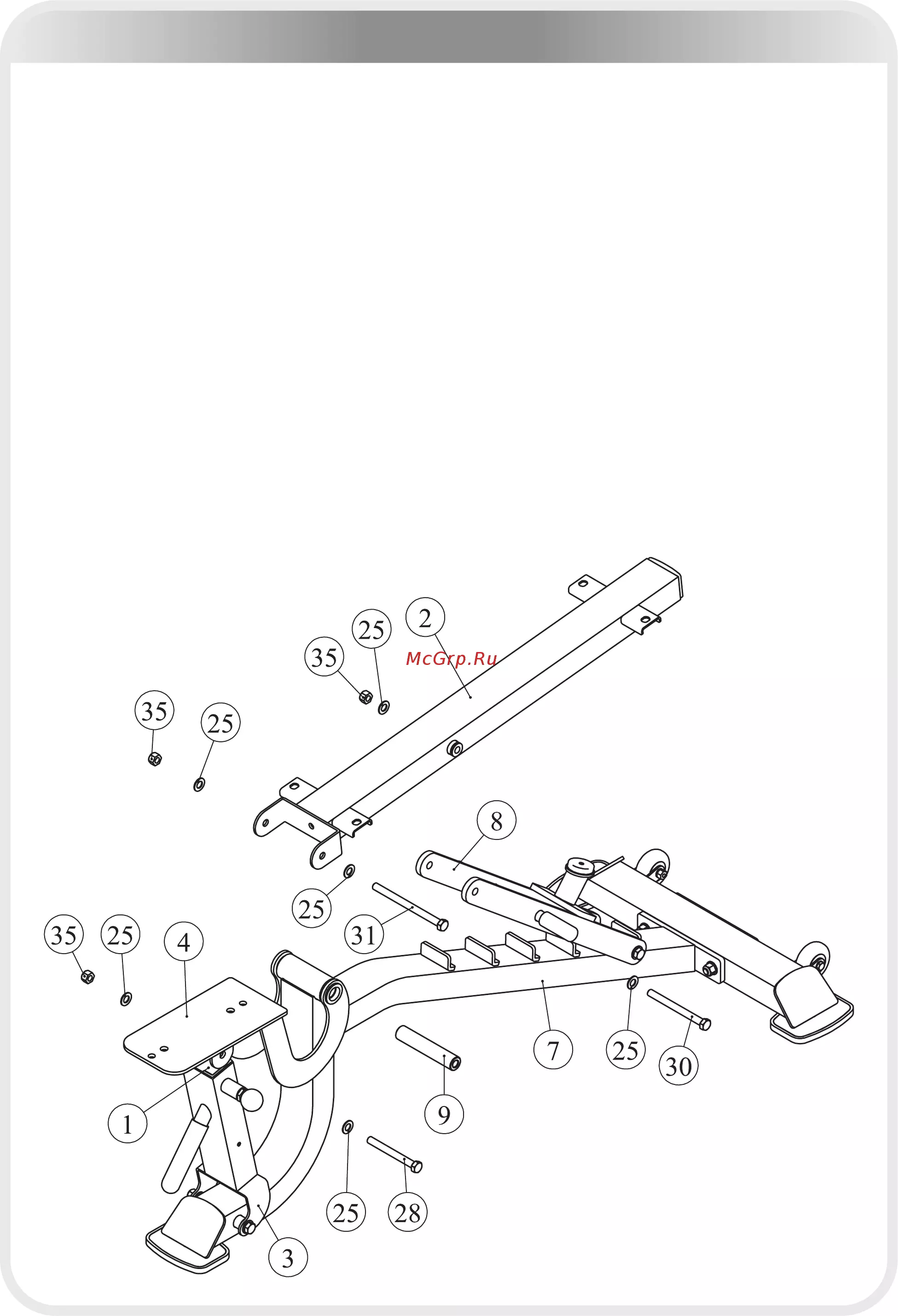

Step 2

1. Attach Frame, Seat Pad Support (#4) to Main Frame (#7) and Frame,

Adjustable Seat Pad (#1), using:

one M12*110 SHCS (#28)

one M12 Nylon lock Nut (#35)

two Φ13*Φ24*1.5 Flat Washer (#25)

one Φ25.4*132.5 Axle (#9)

2. Attach Frame, Back Pad Support (#2) to Frame, Adjustable Back Pad (#8)

and Main Frame (#7), using:

one M12*135 SHCS (#30)

one M12*160 SHCS (#31)

two M12 Nylon lock Nut (#35)

four Φ13*Φ24*1.5 Flat Washer (#25)

NOTE: Wrench Tighten bolts and Nylon Lock Nuts.
