14
Displays current preference settings. •
A check
ed box enables the feature. The check •
box is a toggle.
Enable Context Menu on desktop is checked •
(On) by default. Enable Context menu
displays SmartControl Lite selections for
Select Preset and Tune Display in the desktop
right-click context menu. Disabled removes
SmartControl Lite from the right click context
menu.
Enable Task Tray icon is checked (On) by •
default. Enable context menu shows the task
tray menu for SmartControl Lite. A right
click on the task tray icon displays the menu
options for Help, Technical Support. Check for
Upgrade, About, and Exit. When Enable task
tray menu is disabled, the task tray icon will
only display EXIT.
Run at Startup is checked (On) by default. •
When disabled, SmartControl Lite will not
launch at start or be in the task tray. The only
way to launch SmartControl Lite is either from
the desktop short cut or from the program
file. Any preset set to run at startup will not
load when this box is unchecked (Disabled).
Enable transparency mode (Windows 7, Vista, •
XP). Default is 0% Opaque.

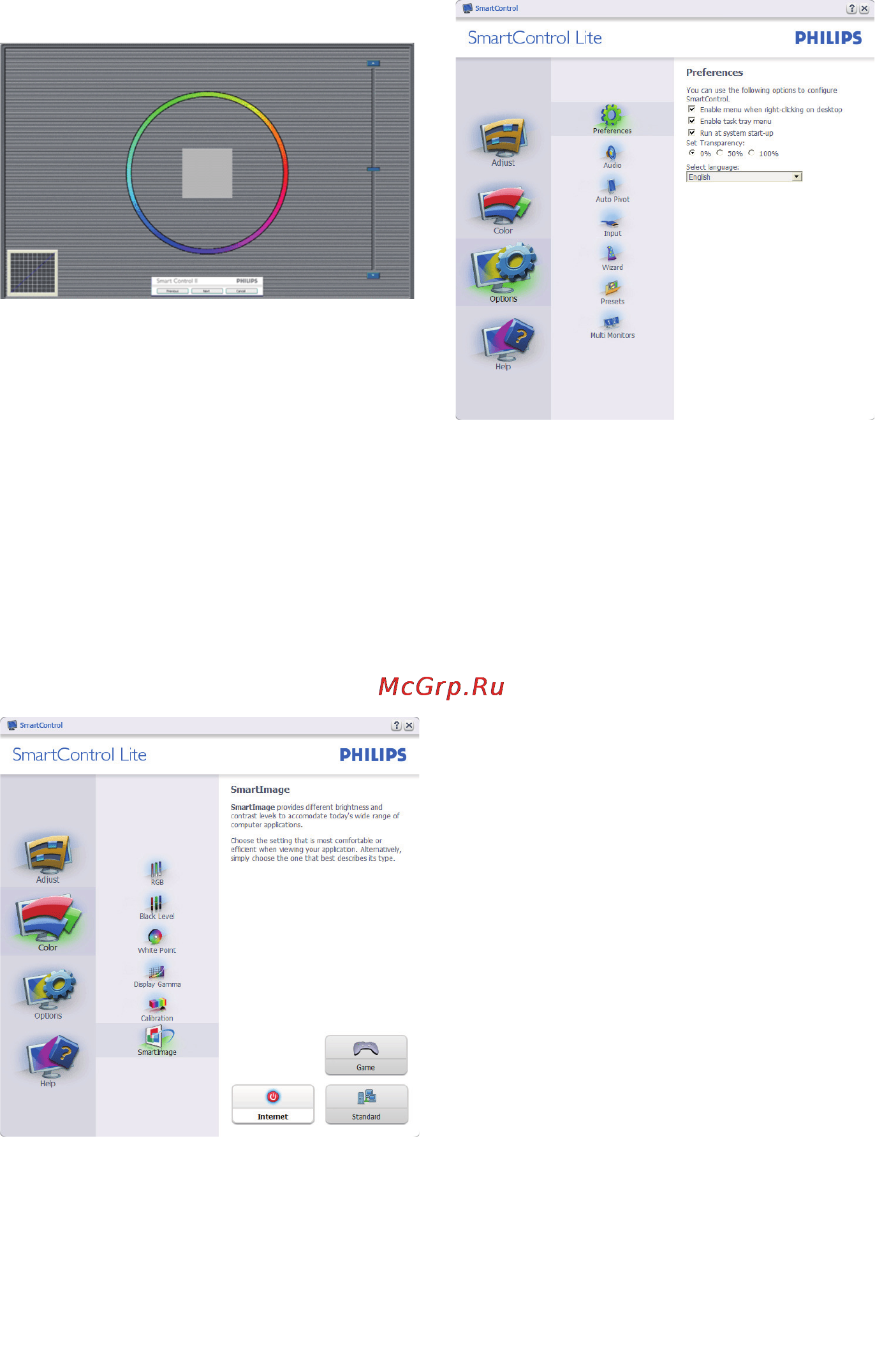

First color Calibration Screen:
• Previous button is disabled until the second
color screen.
Next goes to the succeeding target (6-targets). •
Final next goes File>Presets pane. •
• Cancel closes the UI and returns to the plug
in page.
SmartImage Lite
Allows user to change setting for better display
setting based on content.
When Entertainment is set, SmartContrast and
SmartResponse are enabled.
Options>Preferences - Will only be active
when selecting Preferences from the drop-down
Options menu. On a non-supported display
capable of DDC/CI, only the Help and Options
tabs are available.
