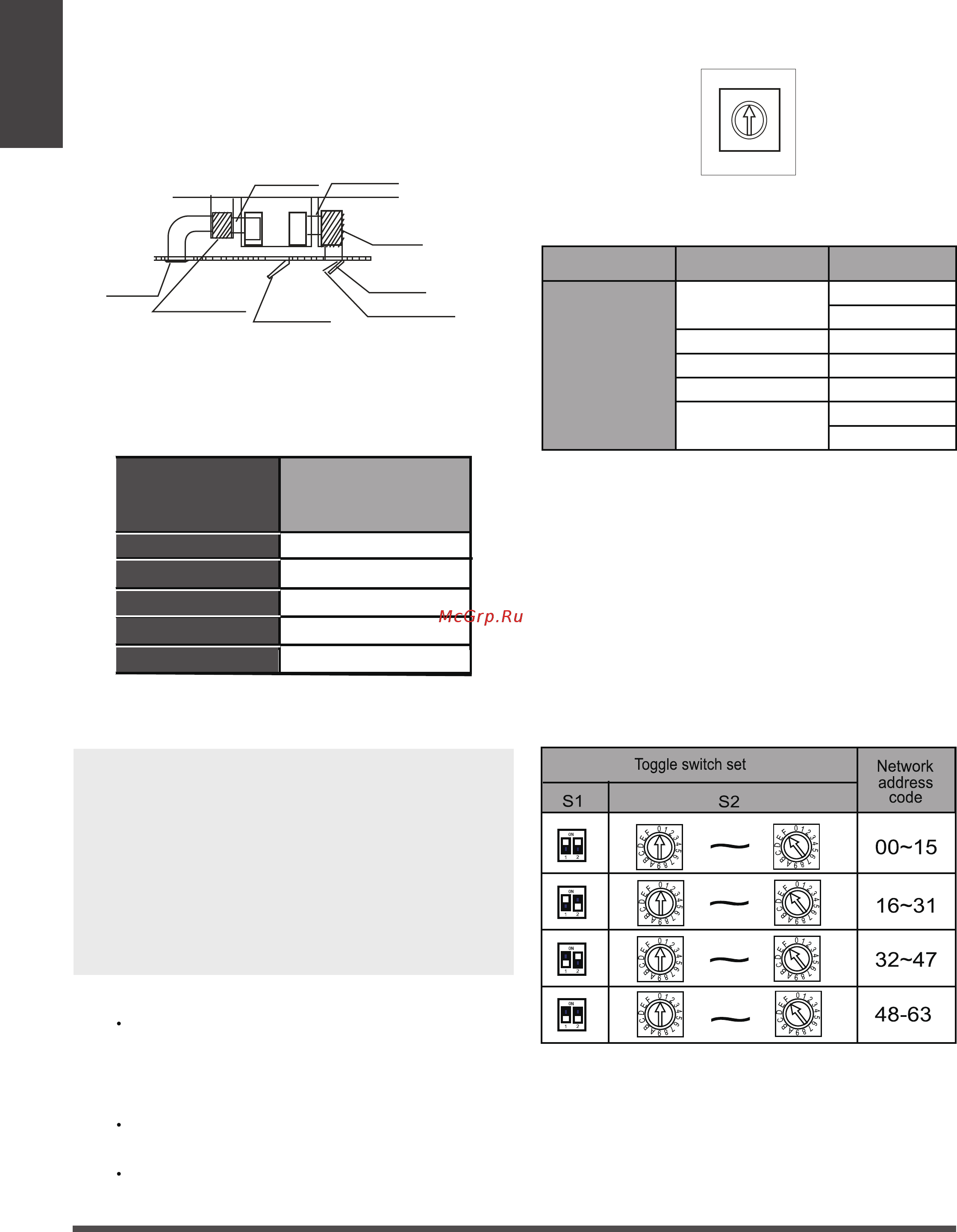

Indoor Unit
Installation
Fig. 4.10
Step 3: Duct and accessories installation
NOTE: 1.Do not put the connecting duct weight
on the indoor unit.
2. When connecting the duct, use an
nonflammable canvas tie-in to prevent
vibrating.
3. Insulation foam must be wrapped outside the
duct to avoid condensate. An internal duct
underlayer can be added to reduce noise,
if the end-user requires.
Step 4: Control (only for inverter units)
The capacity of the system and the network
address of the air-conditioner can be set by
the switches on the indoor Main Control
Board.
Before setting, turn off the power. After
setting, restart the unit.
Setting is not allowed when the unit is
power on.
Table 4-3
1 Horsepower code setting
The capacity of the indoor unit has been set
in the factory according to the below table.
Horsepowe r code
ENC1
PO WER_S
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
ENC1
Note: The
capacity has
been set in the
factory, anyone
can’t adjust it
except the
qualified person.
Toggle switch Code
Capacity(kw)
4
5.3
5.6
5
7.1
7
9.0
8
10.5
9
14.0
16.0
Every air-conditioner in network has only one
network address to distinguish each other.
Address code of air-conditioner in LAN is set by
code switches S1 & S2 on
the Main Control Board of the indoor unit, and
the set range is 0-63.
2 Network address set
Table 4-4
1.
Install the filter(optional) according to air inlet size.
5. Refer to the following static pressure guidelines
when installing the indoor unit.
Change the fan motor static pressure
according to external duct static pressure.
2.
Install the canvas tie-in between the body and duct.
3. The air inlet and air outlet duct should be far
enough apart enough to a avoid air passage
short-circuit.
4. Connect the duct according to the following
diagram:
Canvas tie-in Canvas tie-in
Air outlet
Isolation booth
Isolation booth
checking orifice
Air inlet
Air dust filter
Table.4-2
MODEL
(Btu/h)
Static Pressure
(Pa)
30
12K
70
18K
70
24K
80
30K~36K
100
42K~60K
