- 81 - Appendix

Step 3:

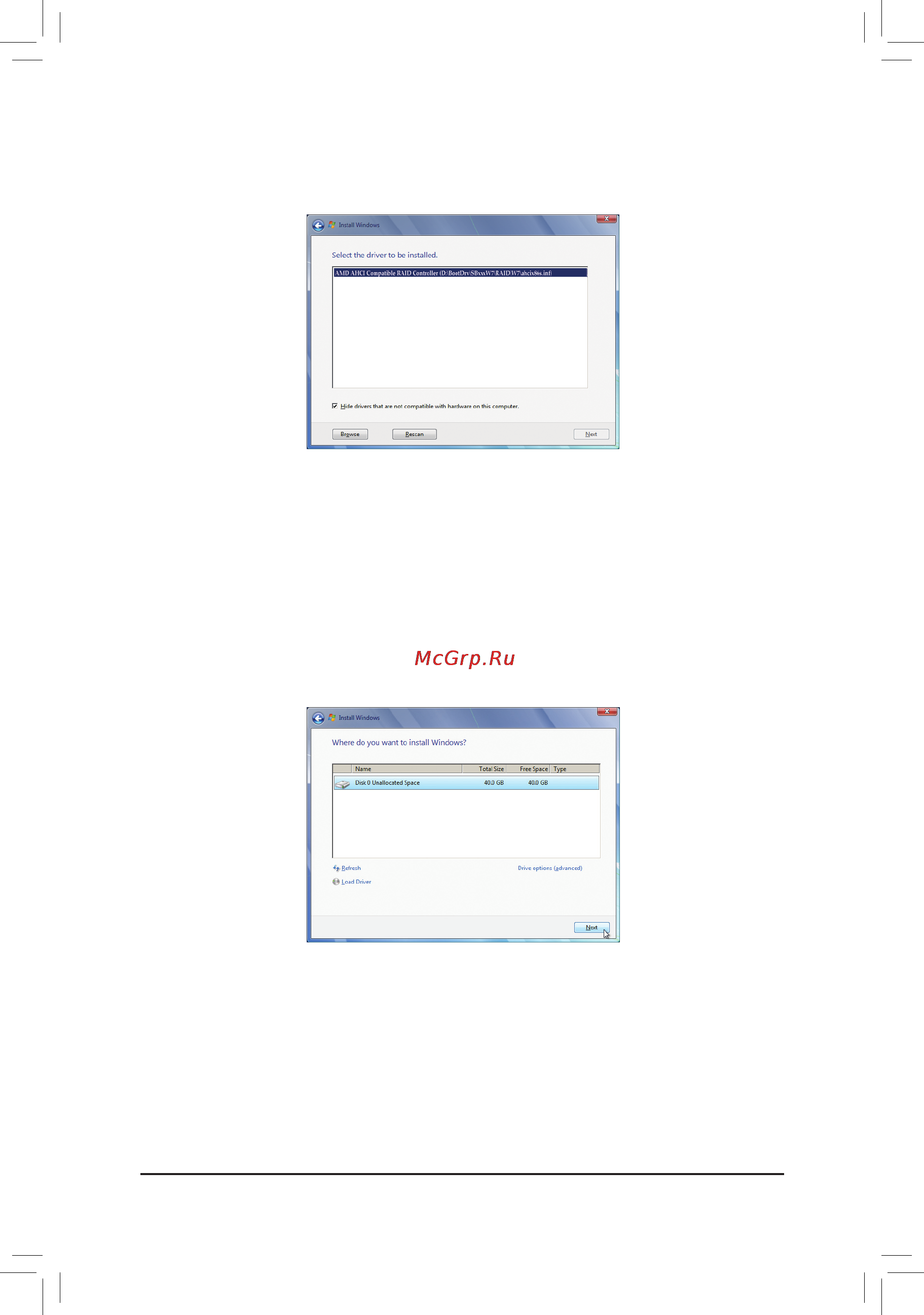

When a screen as shown in Figure 4 appears, select AMD AHCI Compatible RAID Controller and click

Next.

Step 4:

After the driver is loaded, the RAID drive will appear. Select the RAID drive and then click Next to continue

the OS installation (Figure 5).

Figure 4

Figure 5
