RIGOL Chapter 1 Quick Guide
1-6 DG900 User's Guide
to select the desired parameter. Then, rotate the knob to modify the
parameter, and press it down again to confirm your modification.
— It is used to select the desired configuration type in the Preset interface.
Press down the knob to confirm your selection. At this time, a dialog box is
displayed. Use the knob to select the corresponding button, then press
down the knob to perform the corresponding operation (note that only
when the button turns green, can your operation on the knob be valid).
10. Menu Key
Enters the waveform mode selection interface.
11. Home Key
Enters the main interface of the instrument.

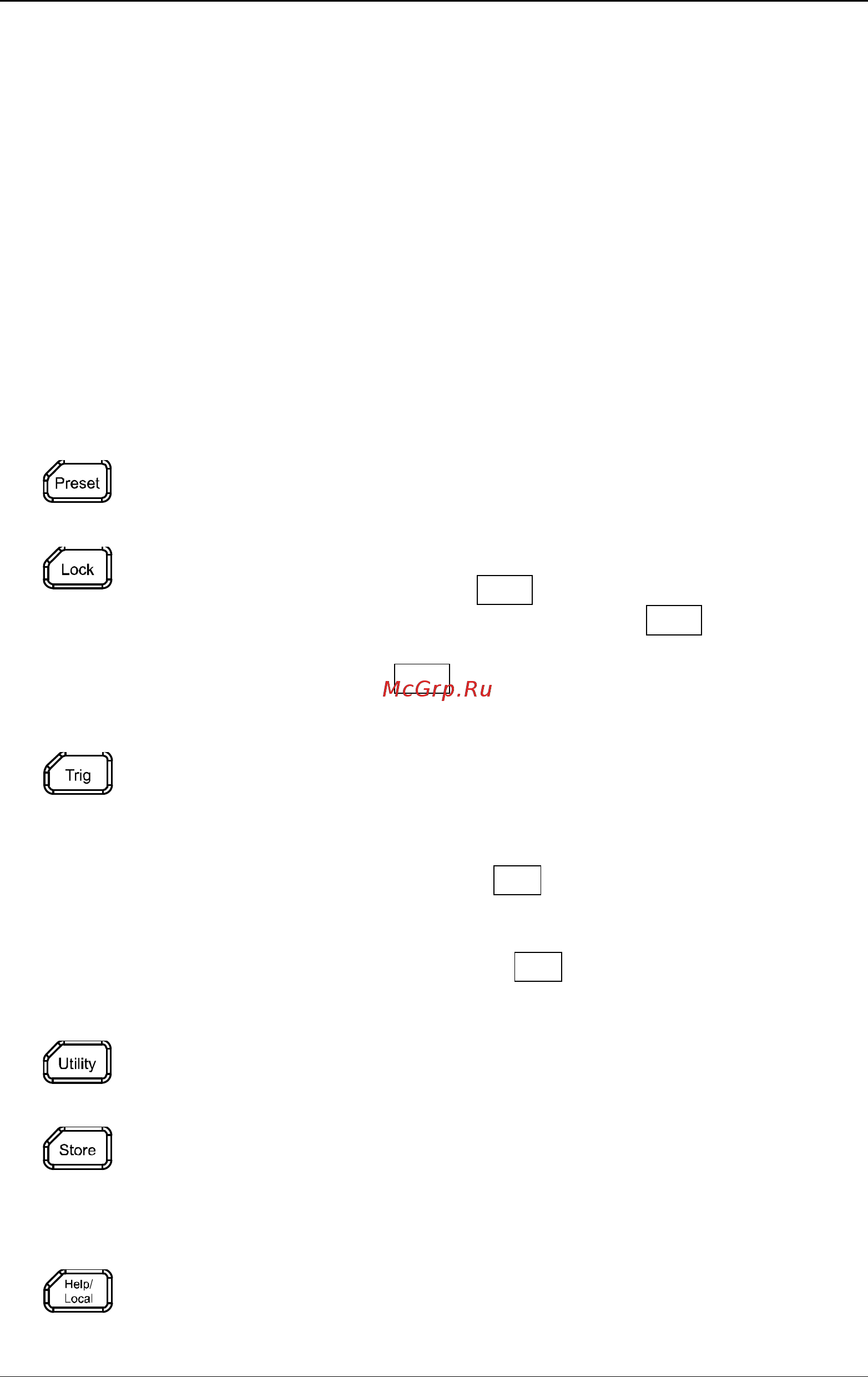

12. Function Keys
Restores the instrument to its preset state. At most 10 states
can be preset.
Locks or unlocks the front-panel keys and the touch screen. In
the unlocked state, press Lock to lock the front-panel keys and
the touch screen. At this time, except the Lock key, all other
keys on the front panel and the touch screen operation are
invalid. Press the Lock key again to unlock the keys and the
touch screen.
Used for manual trigger.
— The default trigger setting for the generator is Internal
trigger. In this mode, when you select the sweep or burst
mode, the generator outputs the waveforms continuously.
At this time, press the Trig key, and instrument
automatically switches to the manual trigger mode from
auto trigger.
— Each time you press the Trig key, one sweep will be
triggered manually or one burst will be output.
It is used to set the utility function parameters and system
parameters.
Stores or recalls the instrument state or the user-defined
arbitrary waveform data. A non-volatile memory (Disk C) is built
in, and a USB storage device (Disk D) can be externally
connected.
Gets the help information of any front-panel keys and the help
information of the current interface.
