The tracing depth amounts to 0...0,5 meters..The

tracing depth depends of medium and application

When connecting in live circuits, safety regulations

must be followed.

The switching with button 4 from »LEVEL I« to

»LEVEL III« the sensitvity of Distance is increased

up to factor 5.

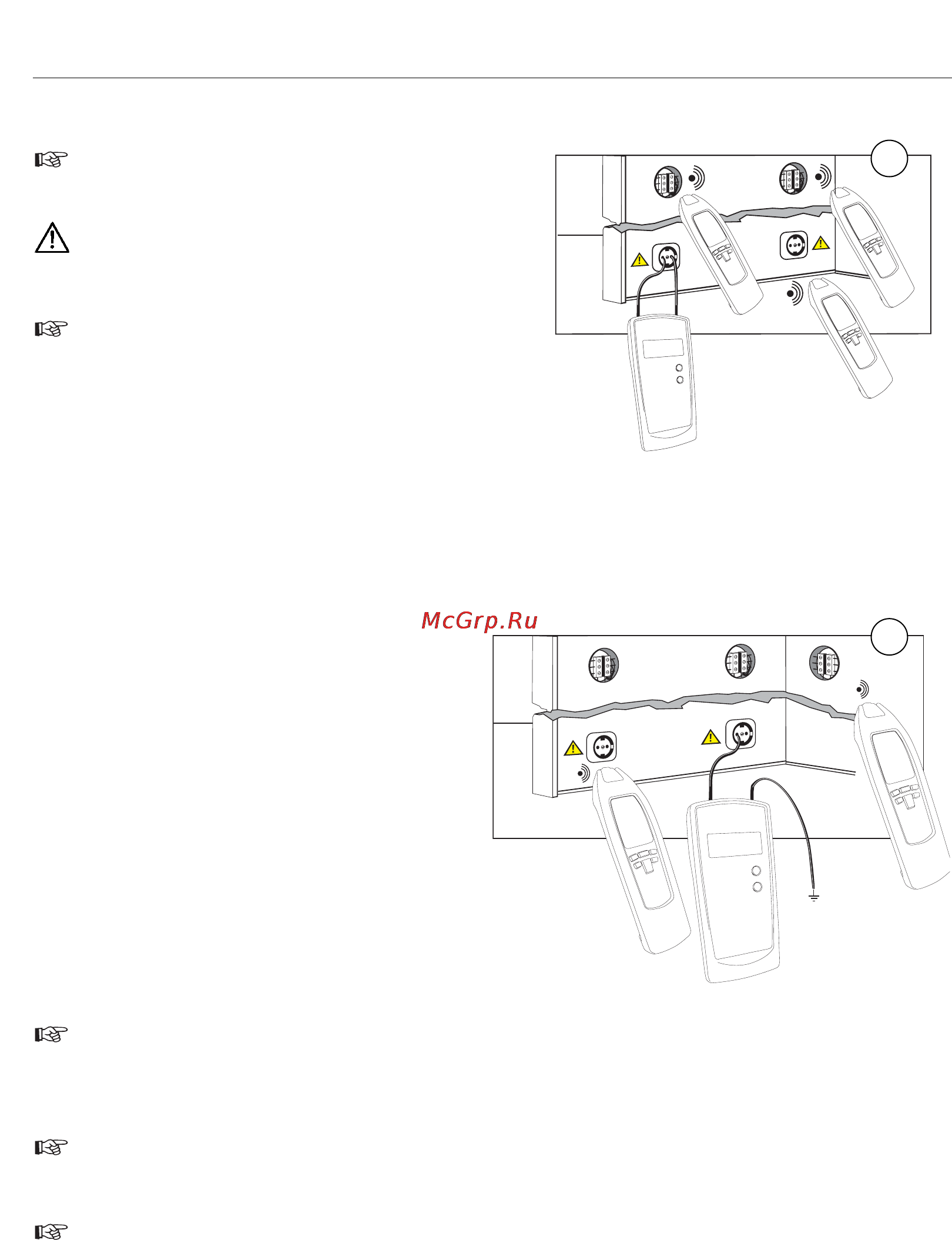

Locating and tracing of lines, sockets, switches and junctions in

house installations circuits (one-pole application)

Requirements:

• The circuit must be dead.

• Neutral line and ground must be connected

and fully operational.

• Connect transmitter to phase and neutral ac-

cording to figure 7.

• Carry out this example as described in the ap-

plication example.

With the one-pole indication, also lateral circuit

branches can be traced.

If the supply cable fed with the signal via the transmitter is located, e.g. directly in parallel to

other conductors (e.g. cable duct), or if these conductors are crossed, the signal is also input

into the other conductors.The fuse must be removed during this example.

The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-

sed up to a factor of 5.

Setup: manual mode, minimal sensitivity.Tracing depth max. 2 meters.

Fluke 2042

Users manual
