English | 27
Bosch Power Tools 1 609 929 P97 | (20.2.08)
The tightening tension of the clamping lever 30
can be readjusted. For this, unscrew the clamp-
ing lever 30, and screw it back again turned off-
set by at least 30° in anticlockwise direction.
Adjusting the Cutting Angle
It is best to place the machine on the face side
of the blade guard 7.
Loosen wing bolt 15. Tilt the saw sidewards. Ad-
just the desired setting at the scale 16. Tighten
wing bolt 15 again.
Note: For bevel cuts, the cutting depth is small-
er than the setting indicated on the cutting-
depth scale 29.
Cutting Marks
The 0° cutting mark (12) indicates the position
of the saw blade for right-angled cuts. The 45°
cutting mark (13) indicates the position of the
saw blade for 45° cuts.

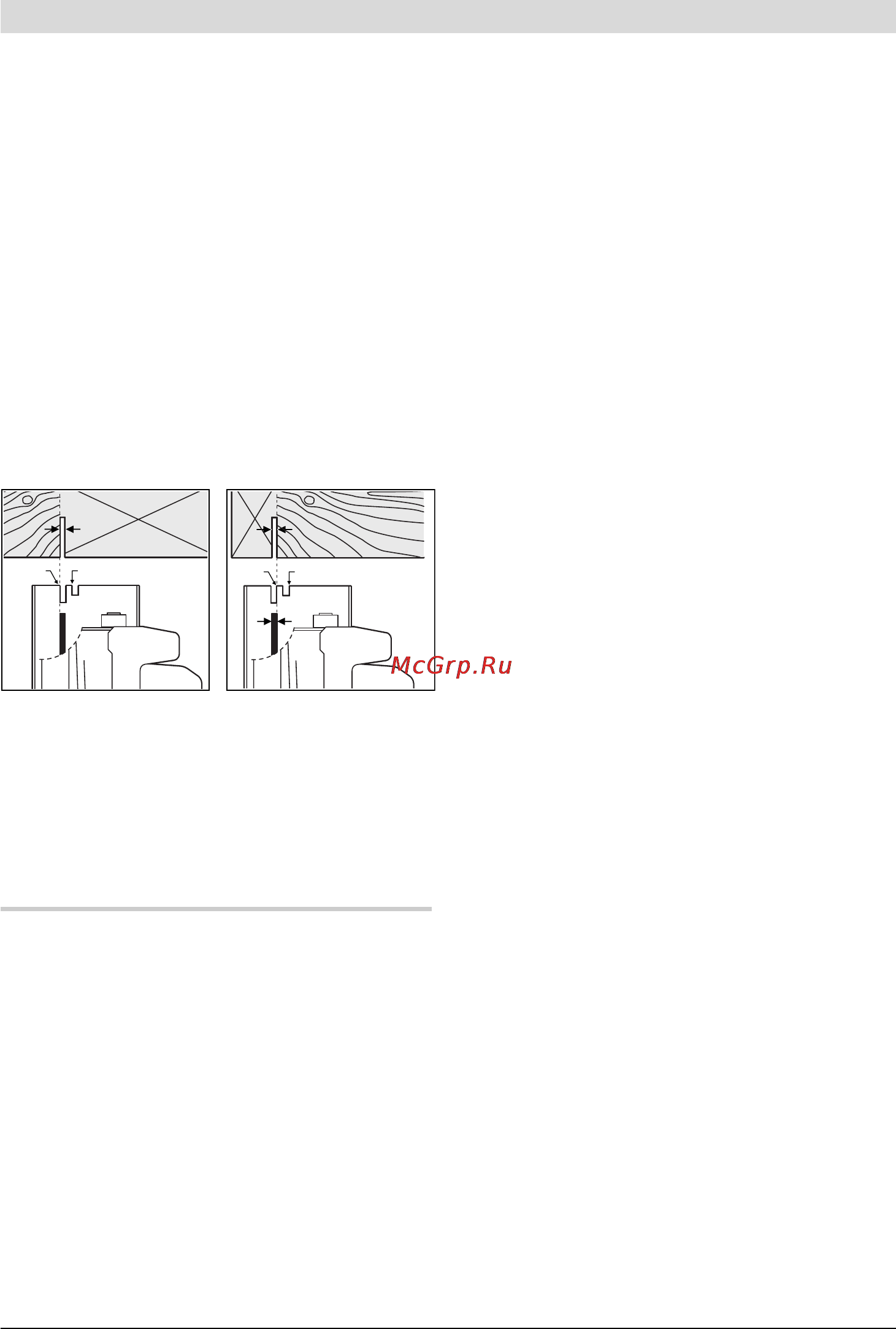

For precise cuts, position the circular saw
against the workpiece as shown in the figure. It
is best to carry out a trial cut.
Starting Operation
Inserting the Battery
f Use only original Bosch lithium ion batter-
ies with the voltage listed on the nameplate
of your power tool. Using other batteries can
lead to injuries and pose a fire hazard.
Insert the charged battery 6 from the front into
the base of the power tool. Push the battery
completely into the base until the red stripe can
no longer be seen and the battery is securely
locked.
Switching On and Off
To start the machine, first push the lock-off but-
ton for the On/Off switch 2 and then press the
On/Off switch 3 and keep it pressed.
To switch off the machine, release the On/Off
switch 3.
Note: For safety reasons, the On/Off switch 3
cannot be locked; it must remain pressed during
the entire operation.
Run-on Brake
An integrated run-on brake reduces the run-on
period of the saw blade after switching off the
machine.
Temperature Control Indicator
The red LED of the temperature control indica-
tor 28 signals that the battery or the electronics
of the power tool (when the battery is inserted)
are not within the optimum temperature range.
In this case, the power tool will not operate at
full capacity.
Temperature control of the battery:
– The red LED 28 lights up continuously after
inserting the battery into the charger: The
battery is not within the charging tempera-
ture range between 0°C and 45 °C and can-
not be charged.
– The red LED 28 flashes when pushing button
26 or pressing the On/Off switch 3 (when the
battery is inserted): The battery is not wihin
the temperature range for operation of
–10 °C to +60 °C.
– For battery temperatures over 70 °C, the
power tool switches off until the battery is in
the optimal temperature range again.
Temperature control of the power tool electron-
ics:
– The red LED 28 lights up continuously when
pressing the On/Off switch 3: The tempera-
ture of the machine's electronics is below
5 °C or above 75 °C.
– At a temperature above 90 °C , the electron-
ics of the power tool switch off until the tem-
perature is within the allowable temperature
range again.
0° 45°
45°0°
