Replacement of the free@home®/Welcome 7" Panel
No liability for printing errors.
Doc.-Nr.:
9AKK106930A6026
This version is from the 06.02.2017
Author:
C. Bachenheimer-Schäfer
Page:
3/7

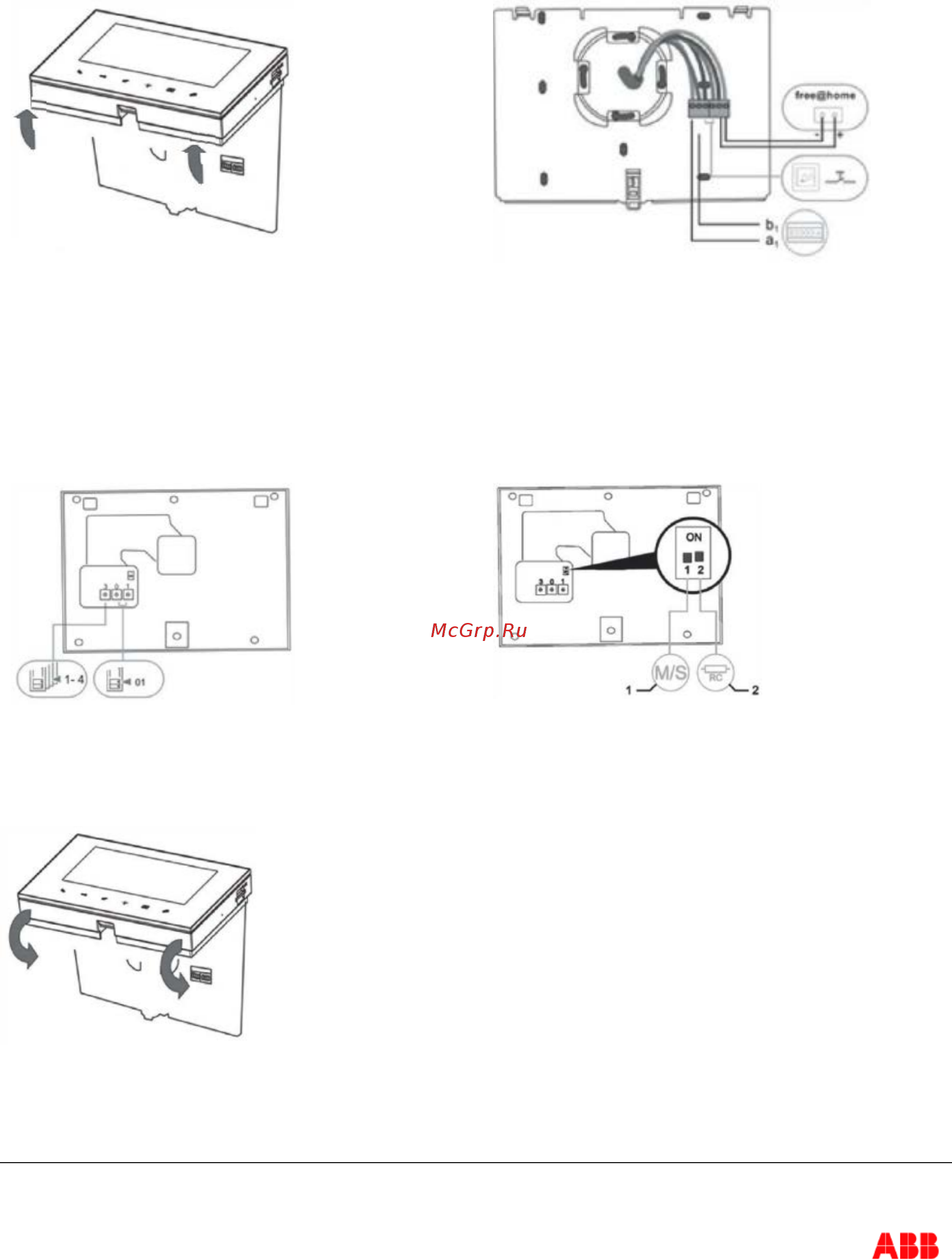

Physical replacement / programming in Welcome installations:
− For safety reasons, please first interrupt the power supply of the panel. To do this, switch off the
corresponding switch in the fuse box.
− The panel base can remain on the wall for only the panel to be lifted.
− In a Welcome installation, the potentiometers on the back of the housing upper part must be
programmed again (addressing the system):
• Address of the preferred outdoor stations
• Address of the indoor station
• Master/slave function
• Terminal resistor
Note! Please write down the exact old configuration or make a picture of the back of the panel.
− Install the new panel
Note! To protect the panel from unauthorized replacements, the fuse to which the Welcome system is
connected must be turned off and on. Only in this way is the complete functionality of the panel including
door handle and door opener will be again available.
