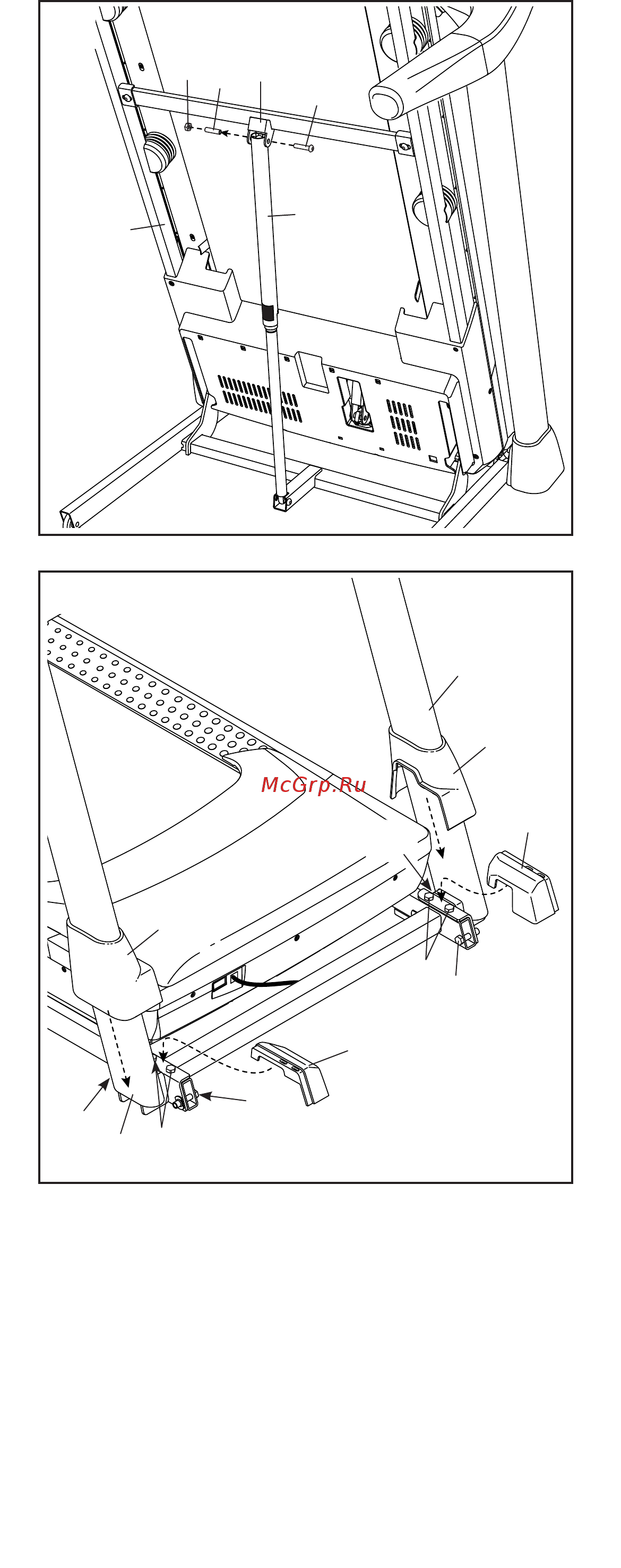

16. Remove the 5/16" Nut (34) and the 5/16" x 2 1/4"

Bolt (106) from the bracket on the Latch Crossbar

(114).

Align the upper end of the Storage Latch (52)

with the bracket on the Latch Crossbar (114),

and insert the 5/16" x 2 1/4" Bolt (106) through

the bracket and the Storage Latch. This will

push a spacer (M) out of the Storage Latch;

discard the spacer.

Next, tighten the 5/16" Nut (34) onto the 5/16" x

2 1/4" Bolt (106). Do not overtighten the Nut;

the Storage Latch (52) must be able to pivot.

Then, lower the Frame (56) (see HOW TO

LOWER THE TREADMILL FOR USE on page

25).

114

106

17. Firmly tighten the four 3/8" x 2 3/8" Screws

(7), the two 3/8" x 1 3/4" Screws (62), and the

two 3/8" x 1 1/4" Screws (63).

Next, set the Left Inner Base Cover (100) onto

the lower end of the Left Upright (89). Then, slide

the Left Base Cover (82) downward and press it

onto the Left Inner Base Cover.

Next, set the Right Inner Base Cover (101) onto

the lower end of the Right Upright (90). Then,

slide the Right Base Cover (83) downward and

press it onto the Right Inner Base Cover.

100

101
