VFDSoft User Manual

Revision Nov. 15th, 2007

2-21

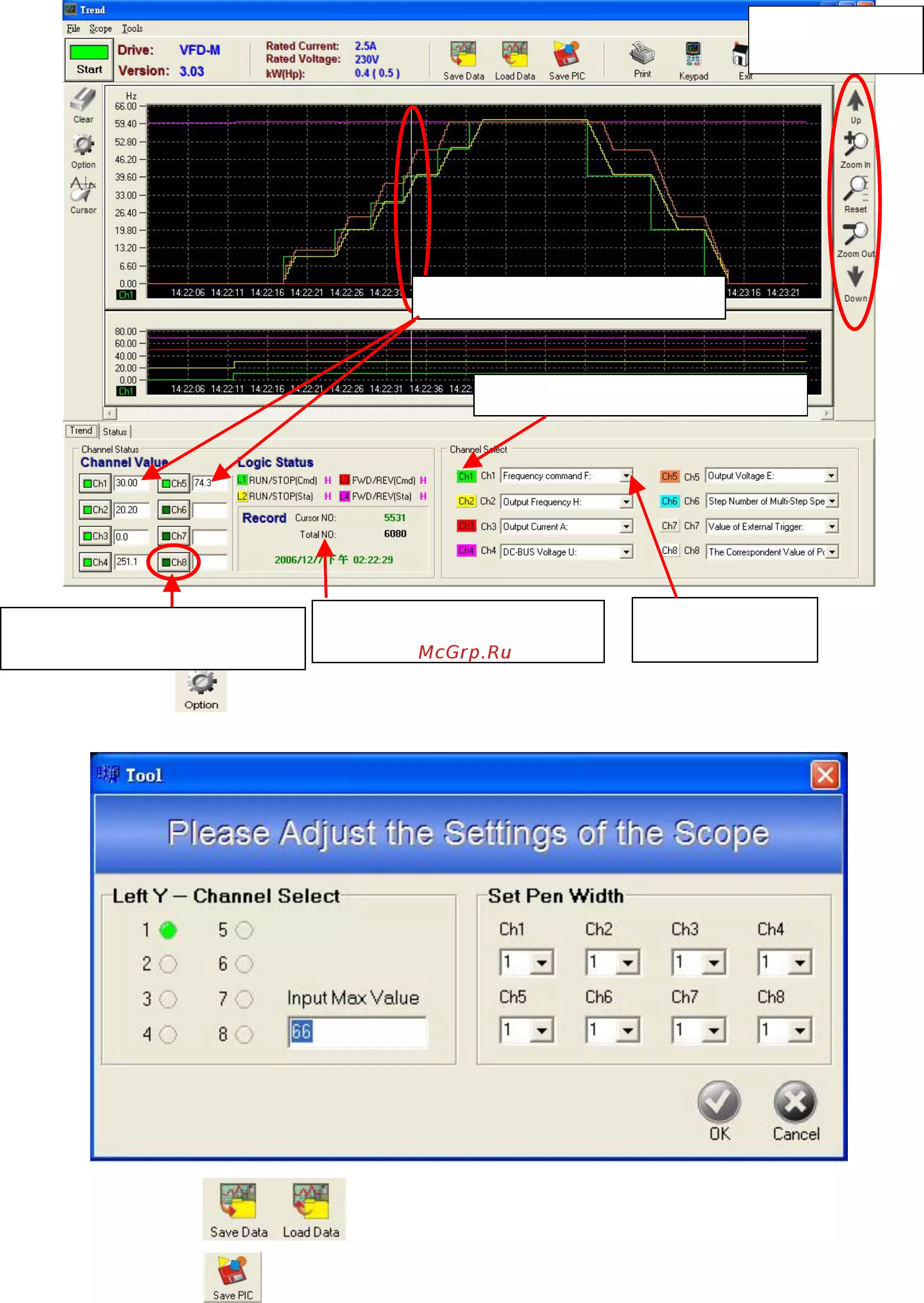

Following displays actual recording status

Select on the left it will appear the following frame. Then you can change the wave’s

thickness degree and each channel’s maximum value.

2. You can select from top of the upper window to save or load trend record wave (*.trd)

3. You can select

from top of upper window to save current page as picture format (*.bmpor*.jpg)

Here can select the needed channel,

with a maximum selection of 8 channels

Move the cursor to display current values

Channel’s wave and colors

are chan

eable

Here can select the

monitored data’s type

Above displays current data number

and bellowing displays total number.

Waves can be

magnified or reduced
