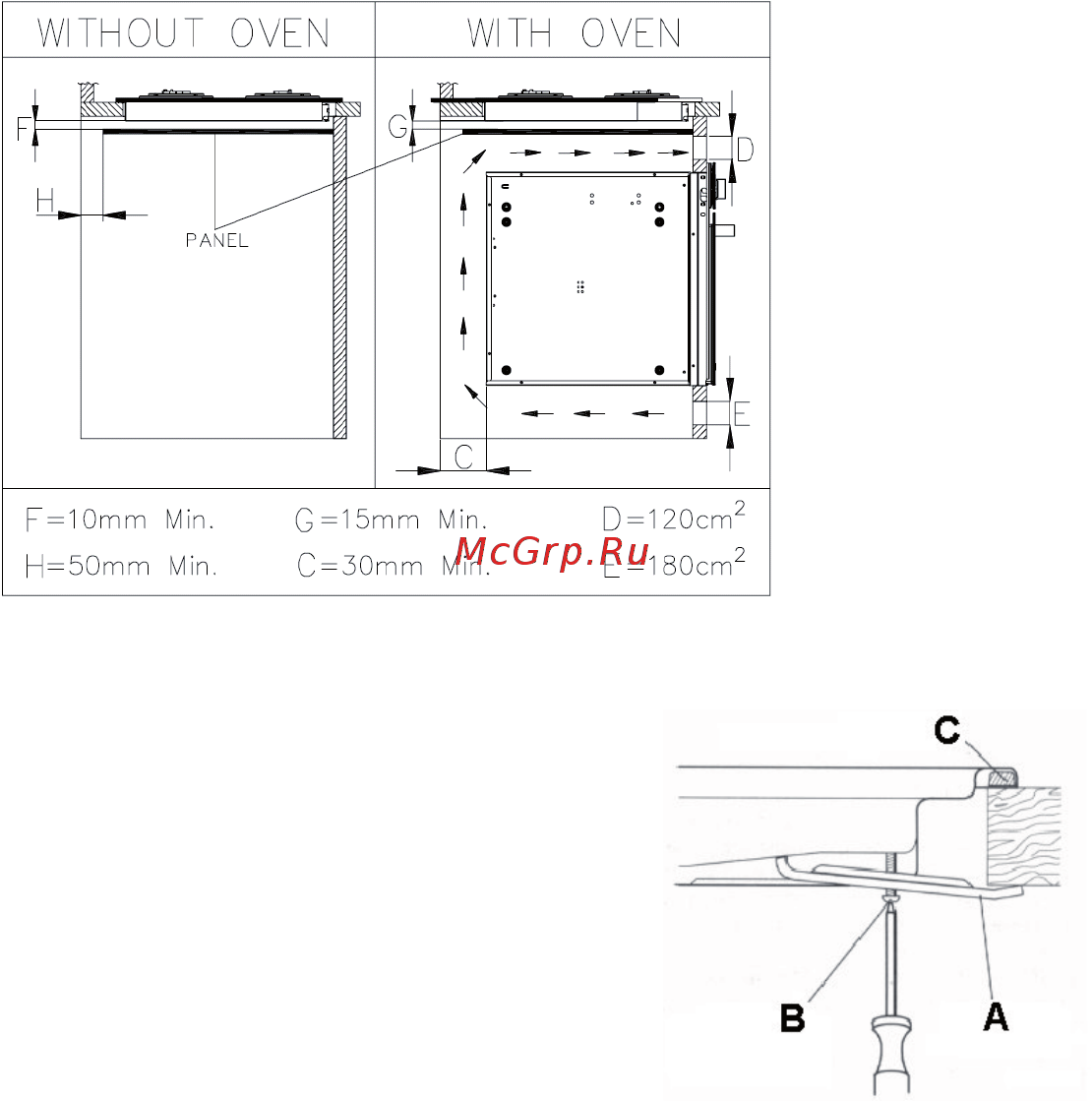

Isolation below (fig.7):
-
If the cooktop is installed without an oven below it, a separator panel must be placed between
the bottom of the cooktop and the housing below it, at a minimum distance of 10 mm.
-
If the cooktop is installed over an oven, place a separator panel at a minimum distance of 15mm and follow
the oven manufacturer's instructions, ensuring nonetheless sufficient aeration as specified in fig.7.
In any event, the electrical connection of the two appliances must be carried out
separately,
both for electrical safety and to facilitate removal.
It is advisable to use an oven equipped with an internal forced cooling system.
Fixing the cooktop (fig.8):
To fix the cooktop in the housing, proceed as follows:
-
Position the special gasket supplied [C] along the outer perimeter
of the worktop, following the diagram shown in fig.5, so that the
ends of the gasket meet exactly without overlapping
-
Position the cooktop into the worktop, taking care to ensure
it is placed exactly in the centre.
-
Fix the cooktop to the worktop using the special brackets
supplied [A], as shown in fig.8
Correct installation of the sealing gasket ensures complete protection against infiltration of liquids.
Installation area and removal of combustion fumes
The appliance must be installed and operated in suitable areas, and in compliance with current laws.
The installation technician must observe current laws governing ventilation and removal of
combustion fumes.
Please remind that the air required for combustion is 2m
3
/h per kW of power (gas) installed.
