NSCE 32-160/55/P25V CS4
Технические характеристики Страница: 128

Lowara NSCE 32-160/55/P25V CS4 Технические характеристики онлайн [128/204] 495963

128

NSCE 65, 80 SERIES

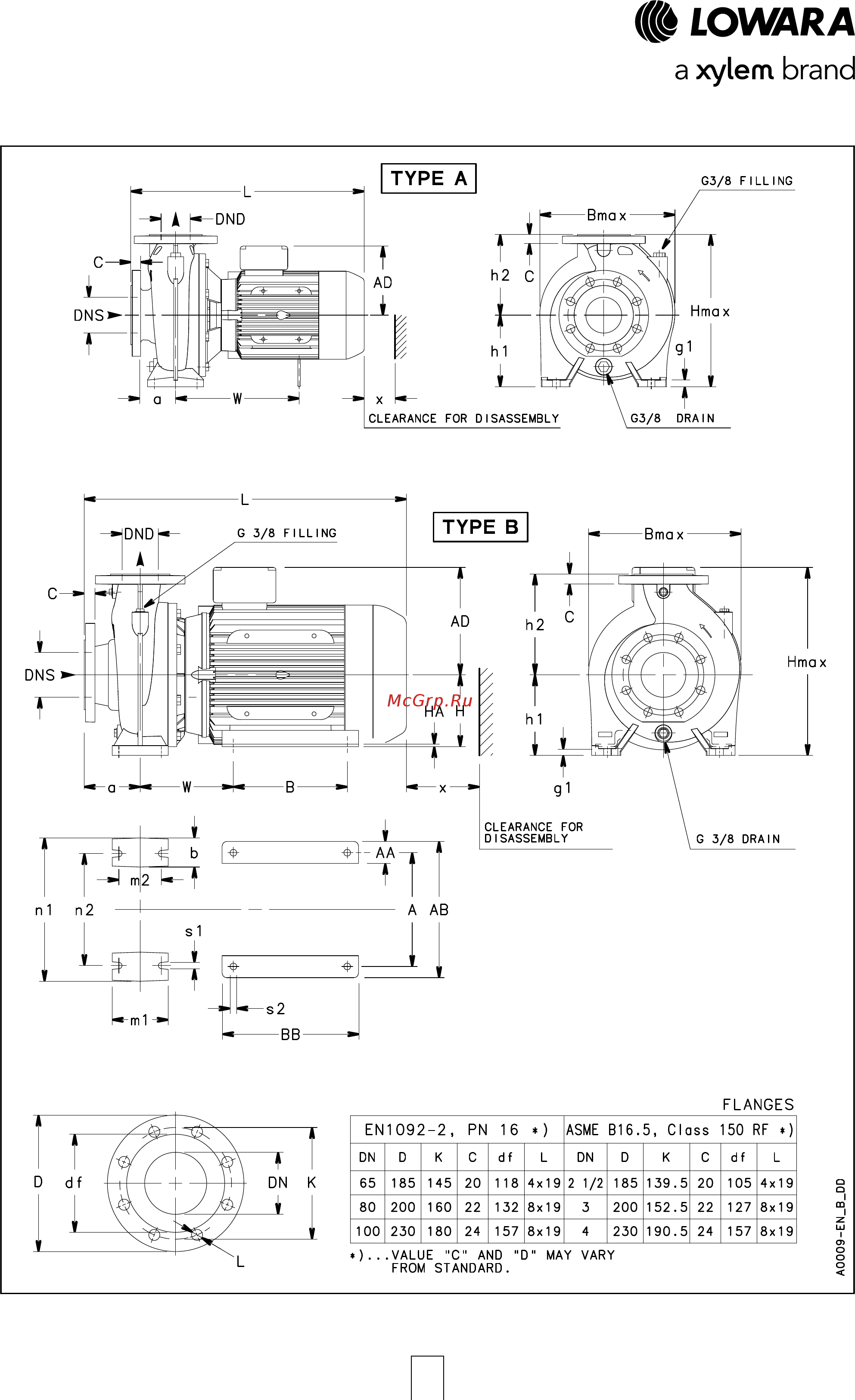

DIMENSIONS AND WEIGHTS AT 50 Hz, 2 POLES
