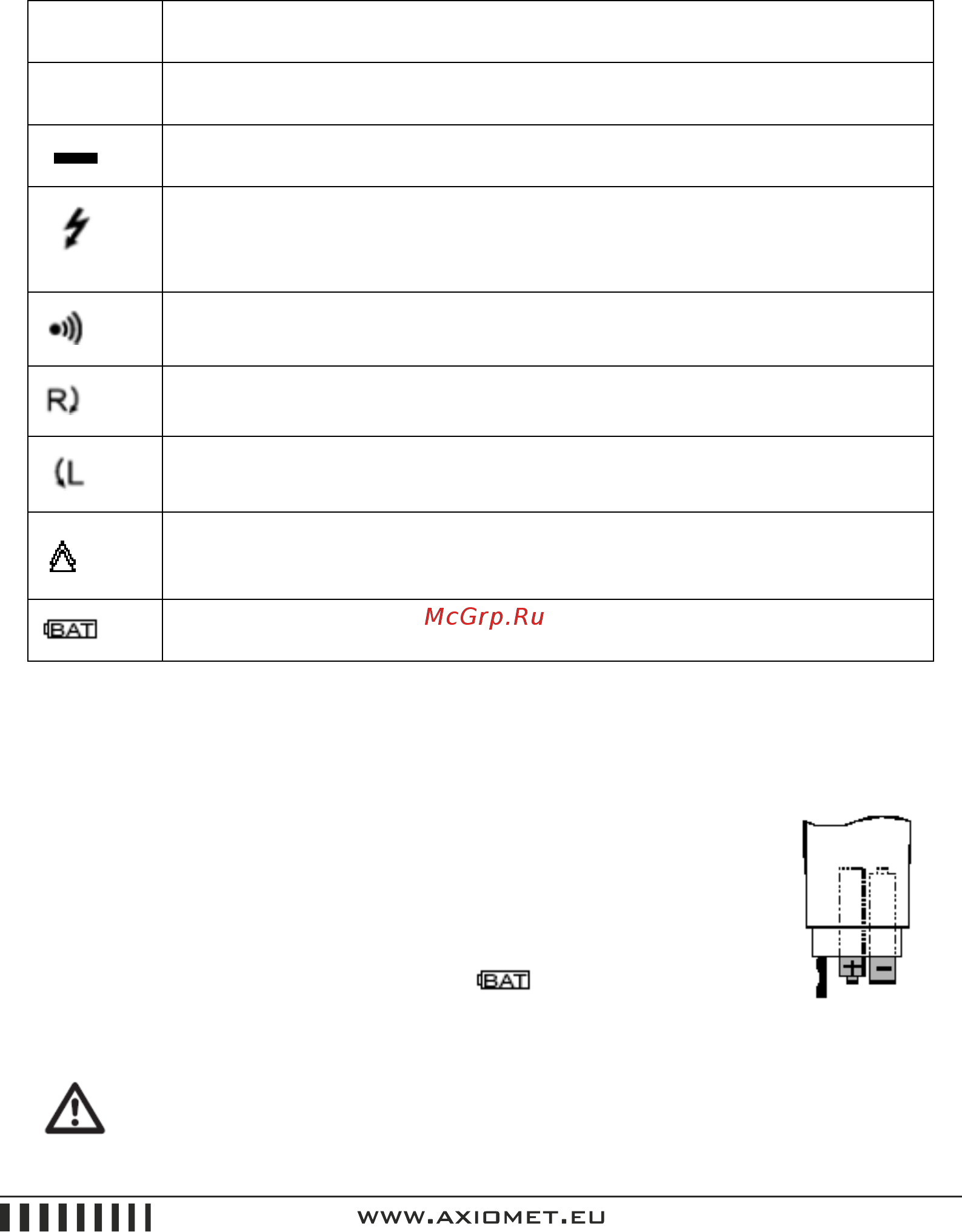

Explanations of Symbols

The voltage tester shows the following symbols:

Inserting/Changing the Batteries

The voltage tester is operated with two micro-batteries (type AAA, in the scope of delivery).

Proceed as follows to insert or change the batteries:

• Loosen the screw on the battery compartment lid (9) with a suitable screwdriver

and remove it.

• Insert two micro-batteries (AAA) into the battery compartment. Observe the

polarity information in the battery compartment. If possible, use alkaline

batteries.They guarantee a longer service life.

• Then, carefully close and screw down the battery compartment lid again.

The batteries need to be changed if the „Low Bat “symbol lights up on the

LCD display or when the LCD display stays dark after contacting both test tips.

The voltage tester will show no reading if the batteries are flat. The device must not

be operated with flat batteries or without batteries.

DC DC voltage

AC AC voltage

DC voltage negative potential (DC)

Phase display from 100 to 690V ~ 50/60Hz

when used as a „single-pole“ phase tester.

Continuity test symbol

Rotating field display clockwise

Rotating field display anticlockwise

Device for work to be performed with voltage present

Battery replacement symbol
