(6901-002112 <00>)

1-4

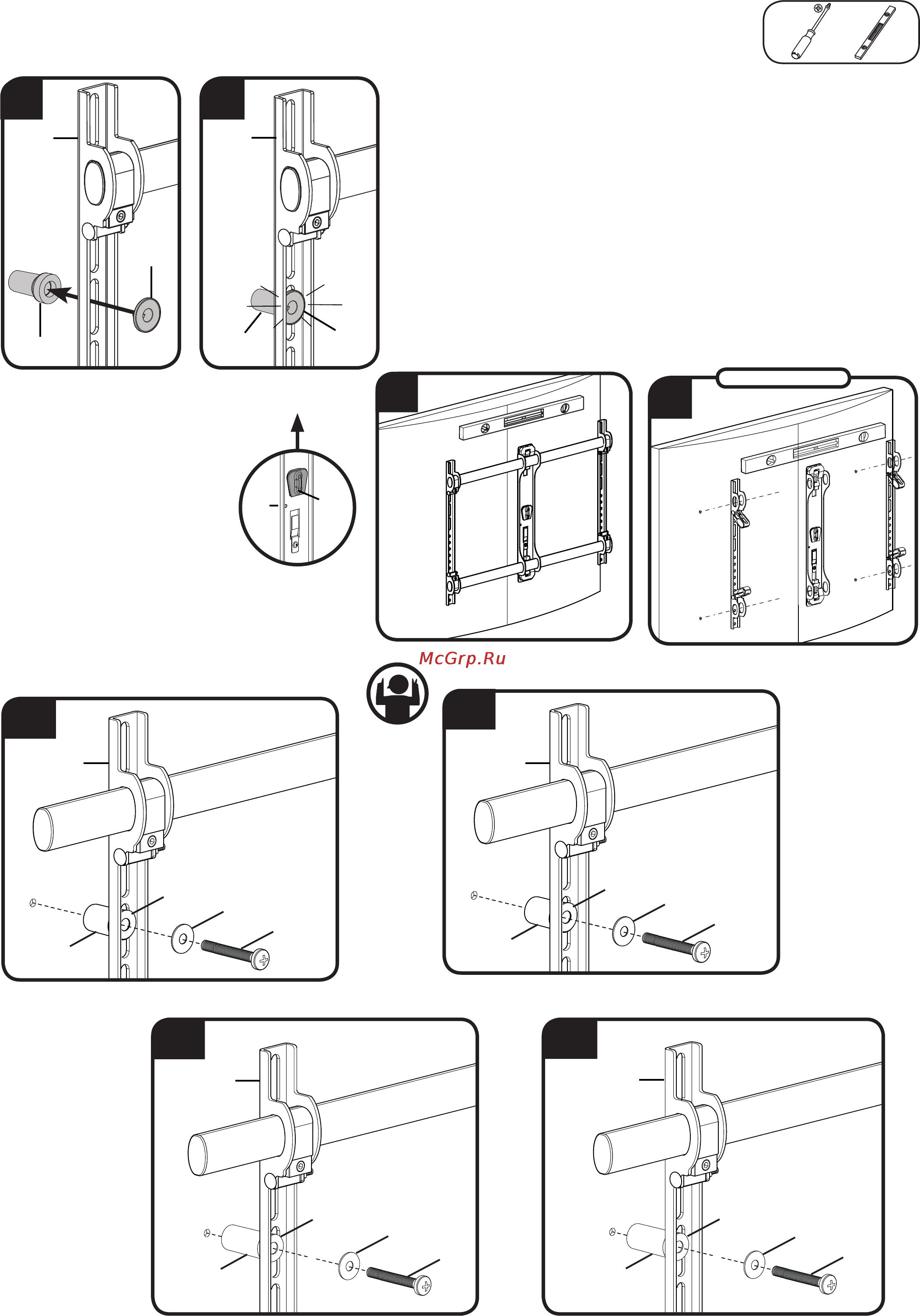

First, see step 1.

For TVs with an irregular/obstructed back.

A. Push the shoulder washer [21] through the appropriate openings of the

brackets [01].

B. Snap shoulder washer [21] into the spacer [19, 20].

C. Ensure that the brackets are level on the back of the TV.

Be sure the

wedge (W) is toward the top, as shown.

Standard con gurations are shown. For special applications, or if you are

uncertain about your hardware selection, contact Customer Service.

For 400 x 400mm hole spacing: Resecure the locking carriages (c) and

insert the support tubes.

[01]

[19, 20]

[21]

[01]

[19, 20]

[21]

400 x 400mm

(W)

[01]

[21]

[19]

[22]

[06]

[21]

[19]

[22]

[09]

[01]

[21]

[20]

[23]

[12]

[21]

[20]

[23]

[15]
