3) PRODUCT DESCRIPTION

Note: Top of the line model is used as representative for illustration purposes. Please

refer to your respective model for function availability.

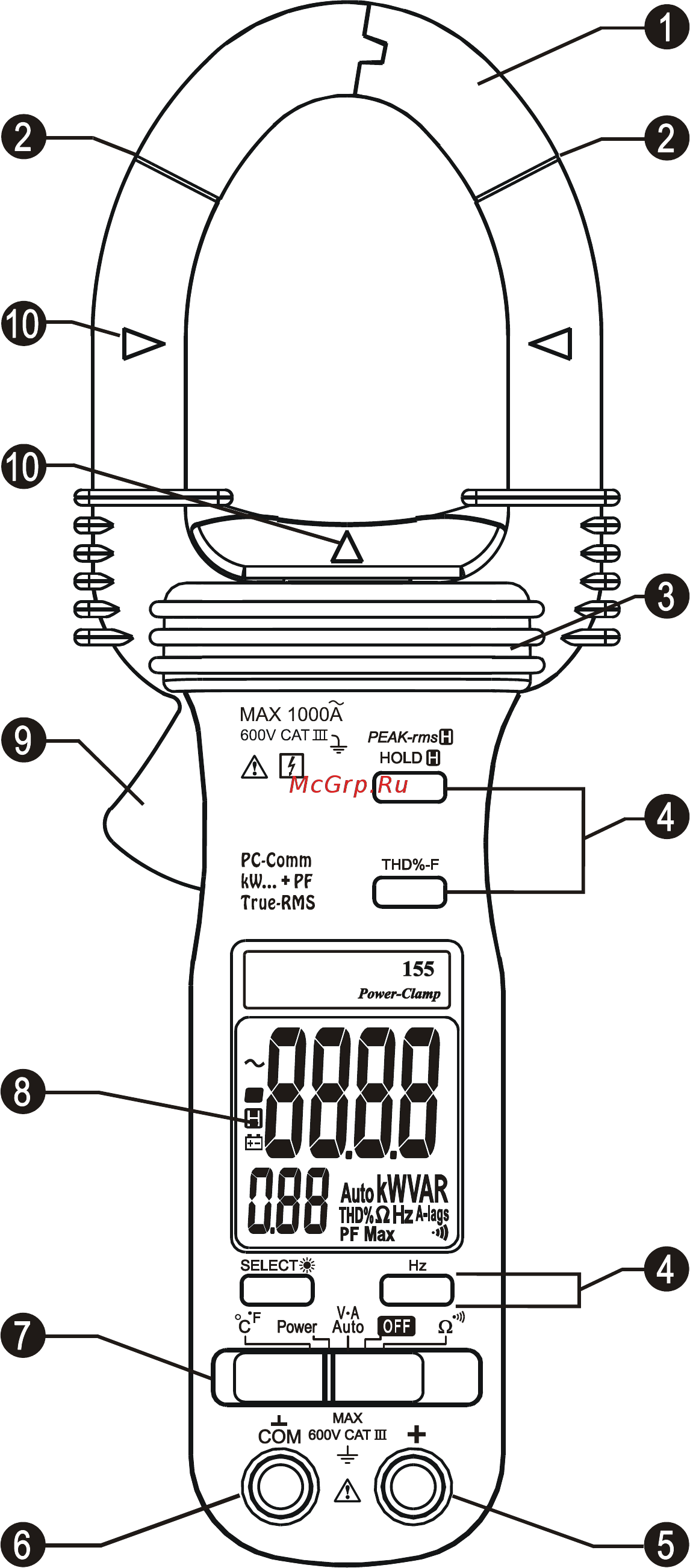

1) Transformer Clamp Jaws for

AC current magnetic field pick up

2) Jaw marking lines for ACA (&

thus Power) position error

indication

3) Hand/Finger Barrier to indicate

the limits of safe access to the

jaws during current

measurements

4) Push-buttons for special

functions & features

5) Input Jack for all functions

EXCEPT non-invasive ACA

current (& thus Power) function

6) Common (Ground reference)

Input Jack for all functions

EXCEPT non-invasive ACA

current (& thus Power) function

7) Slide-switch Selector to turn

the power ON/OFF and Select a

function

8) LCD display

9) Jaw trigger for opening the

transformer clamp jaws

10) Jaw center Indicators, at

where best ACA (& thus Power)

accuracy is specified
