3) PRODUCT DESCRIPTION

Note: Top of the line model is used as representative for illustration purposes. Please

refer to your respective model for function availability.

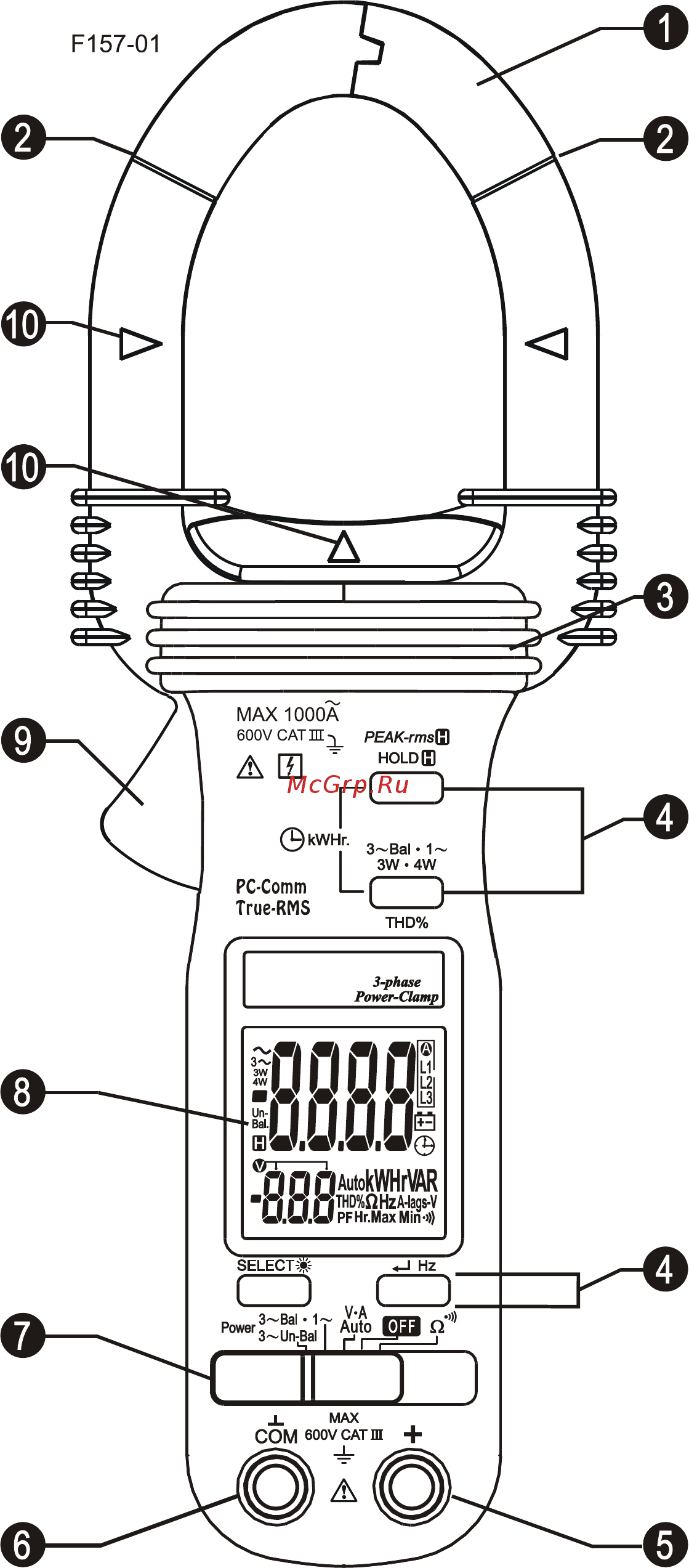

1) Transformer Clamp Jaws for AC

current magnetic field pick up

2) Jaw marking lines for ACA (& thus

Power) position error indication

3) Hand/Finger Barrier to indicate the

limits of safe access to the jaws during

current measurements

4) Push-buttons for special functions &

features

5) Input Jack for all functions EXCEPT

non-invasive ACA current (& thus

Power) function

6) Common (Ground reference) Input

Jack for all functions EXCEPT

non-invasive ACA current (& thus

Power) function

7) Slide-switch Selector to turn the

power ON/OFF and Select a function

8) LCD display

9) Jaw trigger for opening the

transformer clamp jaws

10) Jaw center Indicators, at where

best ACA (& thus Power) accuracy is

specified
