BT100-en-GB_V4.0 11/16

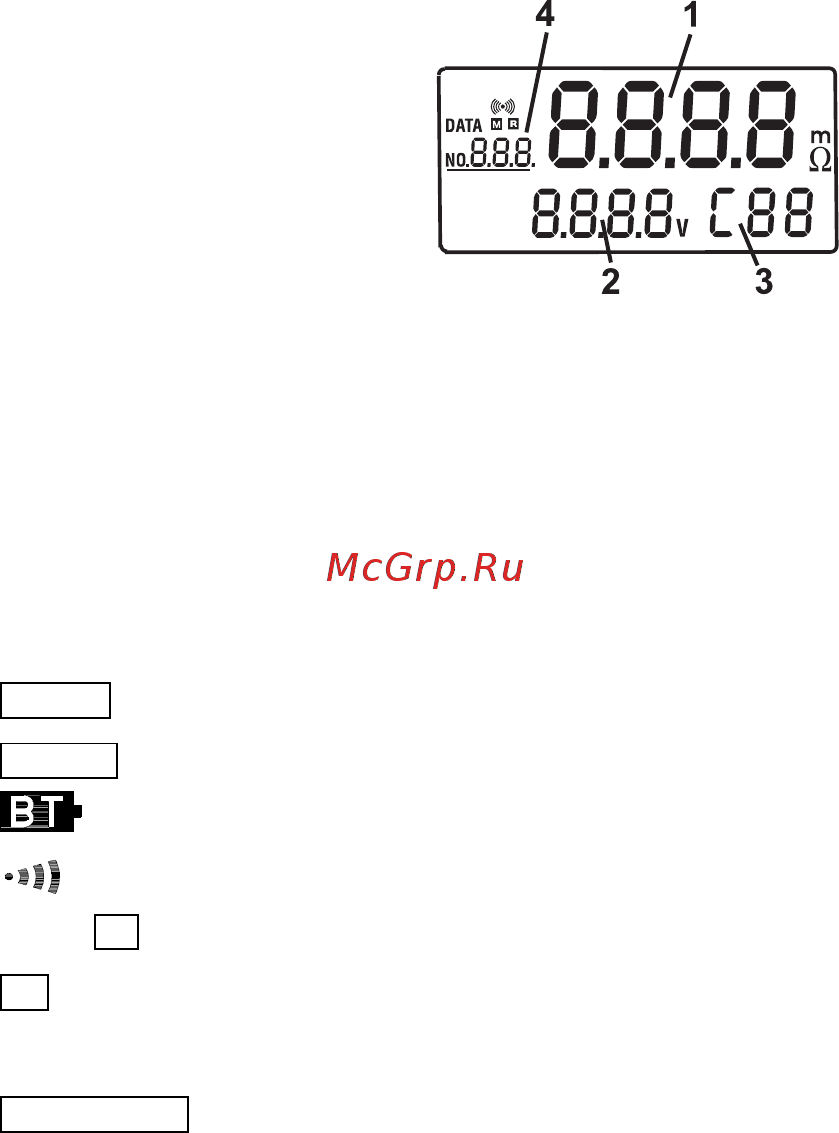

Display Description

1. Measured resistance reading (or High/Low resistance limit when setting up the comparator)

2. Measured voltage reading (or High/Low voltage limit when setting up the comparator)

3. The comparator set number (there are 99 sets total)

4. The memory location for manually logged data.

Symbols:

mΩ: Milliohm (resistance)

V: Voltage

HOLD : Hold function (display freeze)

COMP : Comparator function enabled

: Low-Battery

Beeper enabled

DATA R : Manual datalogging enabled

M : Continuous datalogging enabled (flashes each time data is stored)

INTV: Interval time setting for the continuous datalogging function. (1 to 255 seconds)

COMP.SET : Comparator settings mode

HIGH: High limit setting (threshold) for the comparator

LOW: Low limit setting (threshold) for the comparator

LED Test Status Indicators

PASS (green LED): Battery is good (within the tolerances of the comparator’s preset limits)

WARNING (yellow LED): Battery is beginning to deteriorate

FAIL (red LED): Battery has failed

The LED status indications listed above are active when the High/Low comparator limits for internal

resistance and the comparator threshold value for voltage are properly configured.
