33

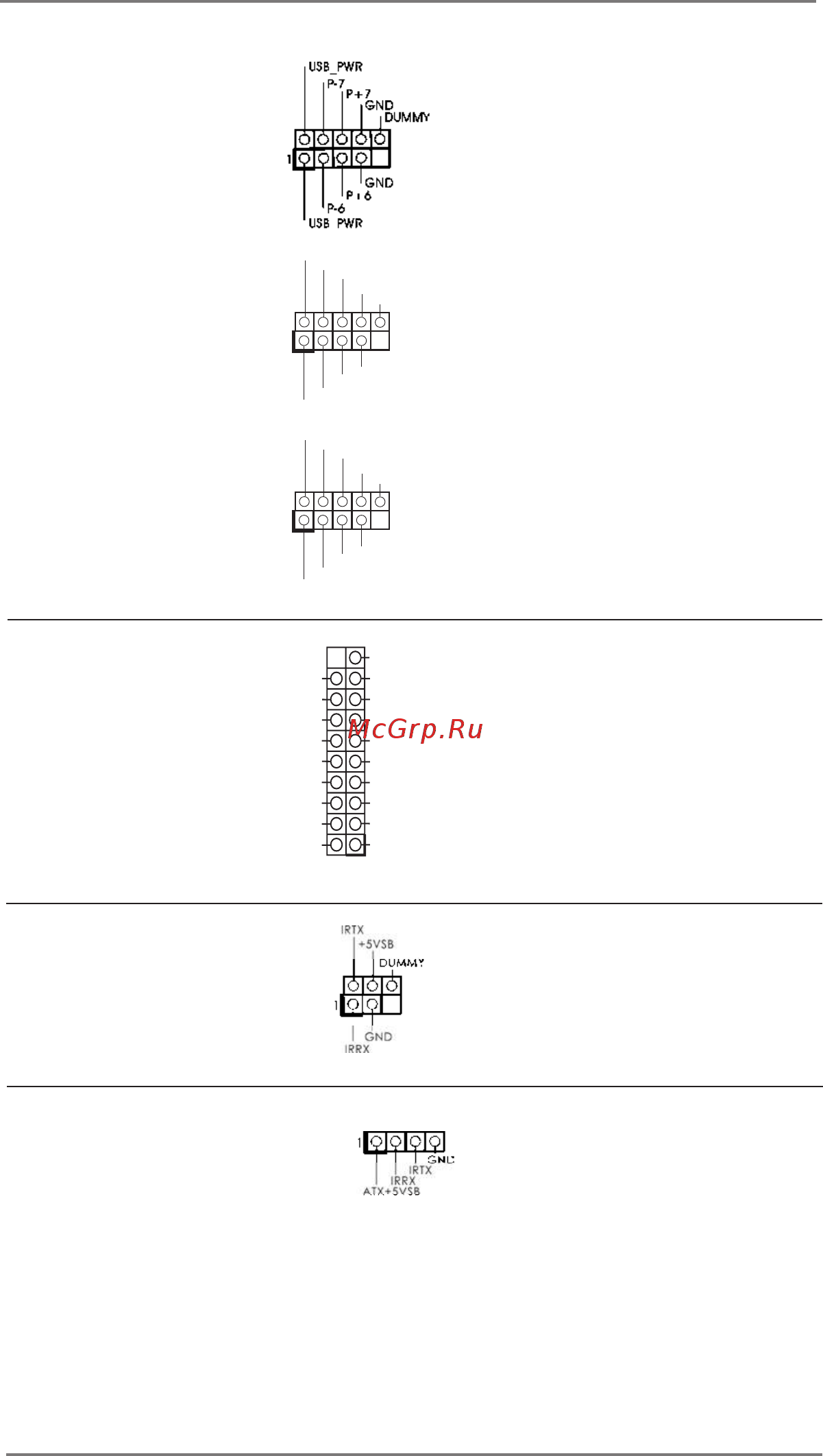

USB 2.0 Headers Besides four default USB 2.0
(9-pin USB_6_7)
ports on the I/O panel, there are
(see p.13, No. 25)
three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
(9-pin USB_8_9)
(see p.13, No. 24)
(9-pin USB_10_11)
(see p.13, No. 23)
USB 3.0 Header Besides two default USB 3.0
(19-pin USB3_12_13)
ports on the I/O panel, there is
(see p.13, No. 9)
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
IntA_P13_D
DUMMY
IntA_P13_D
GND
IntA_P13_SSTX
GND
IntA_P13_SSTX
IntA_P13_SSRX
IntA_P13_SSRX
VbusVbus
Vbus
IntA_P12_SSRX
IntA_P12_SSRX
GND
IntA_P12_SSTX
IntA_P12_SSTX
GND
IntA_P12_D
IntA_P12_D
Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.13, No. 19)
and receiving infrared module.
Consumer Infrared Module Header This header can be used to
(4-pin CIR1)
connect the remote controller
(see p.13, No. 26)
receiver.
1
U SB_PWR
P-8
GND
DUMMY
U SB_PWR
P +8
GND
P-9
P +9
1
U SB_PWR
P-10
GND
DUMMY
U SB_PWR
P +10
GND
P-11
P +11
