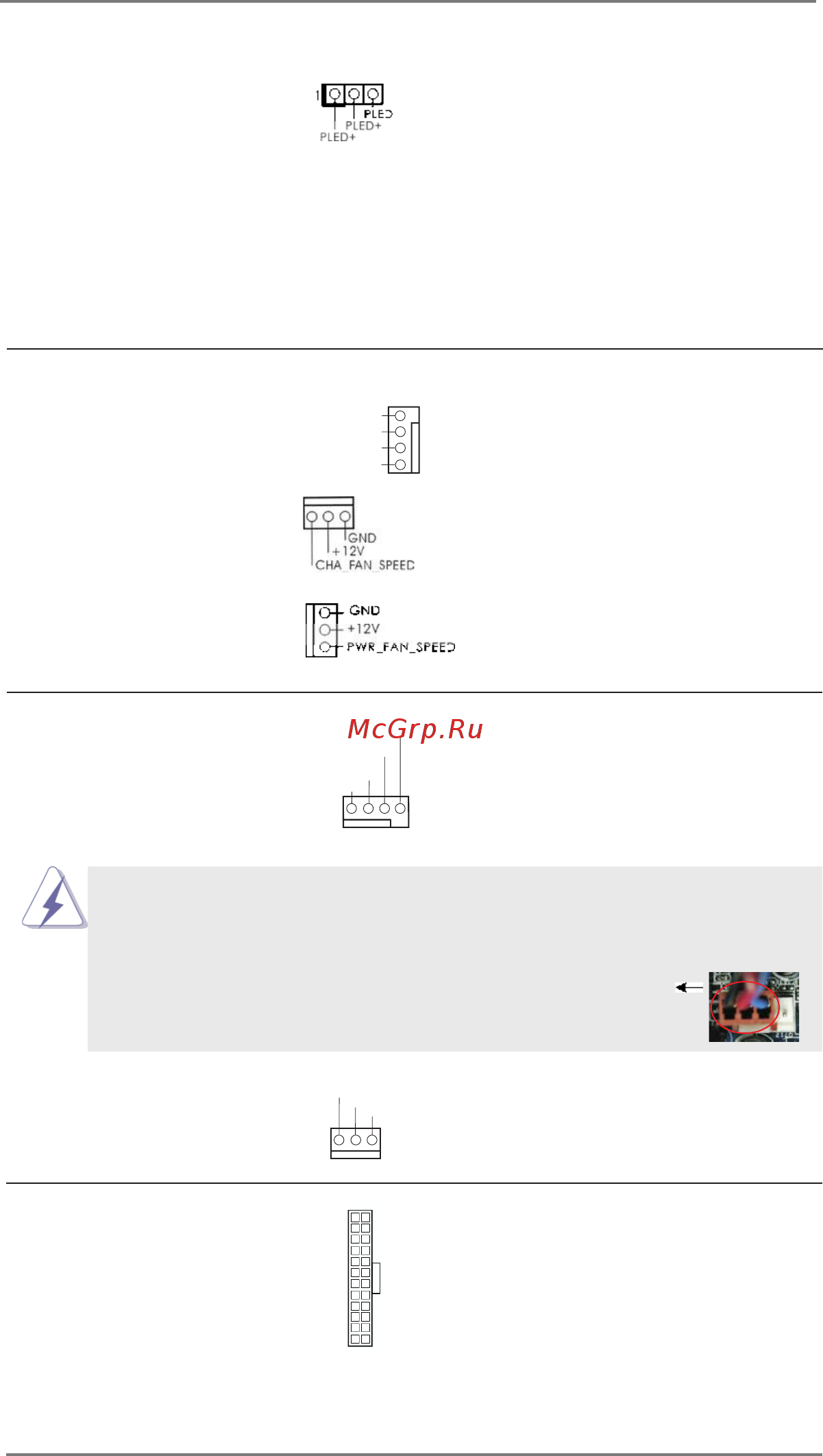

Power LED Header Please connect the chassis
(3-pin PLED1)
power LED to this header to
(see p.13, No. 19)
indicate system power status.
The LED is on when the system
is operating. The LED keeps
blinking in S1/S3 state. The
LED is off in S4 state or S5
state (power off).
Chassis and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1)
to the fan connectors and match
(see p.13, No. 7)
the black wire to the ground pin.
CHA_FAN1 and CHA_FAN2
(3-pin CHA_FAN2)
supports Fan Control.
(see p.13, No. 21)
(3-pin PWR_FAN1)
(see p.13, No. 35)
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.13, No. 1)
match the black wire to the
ground pin.
GN D
+ 12V
CPU_FAN_SPEED
FAN_SPEED_CONT ROL
1 2 3 4
(3-pin CPU_FAN2)
(see p.13, No. 2)
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
GN D
+ 12V
CPU_FAN_SPEED
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
supply to this connector.
(see p.13, No. 8)
12
1
24
13
FA N _SPEED_CONTROL
GN D
+1 2 V
CH A _FAN_SPEED
