40

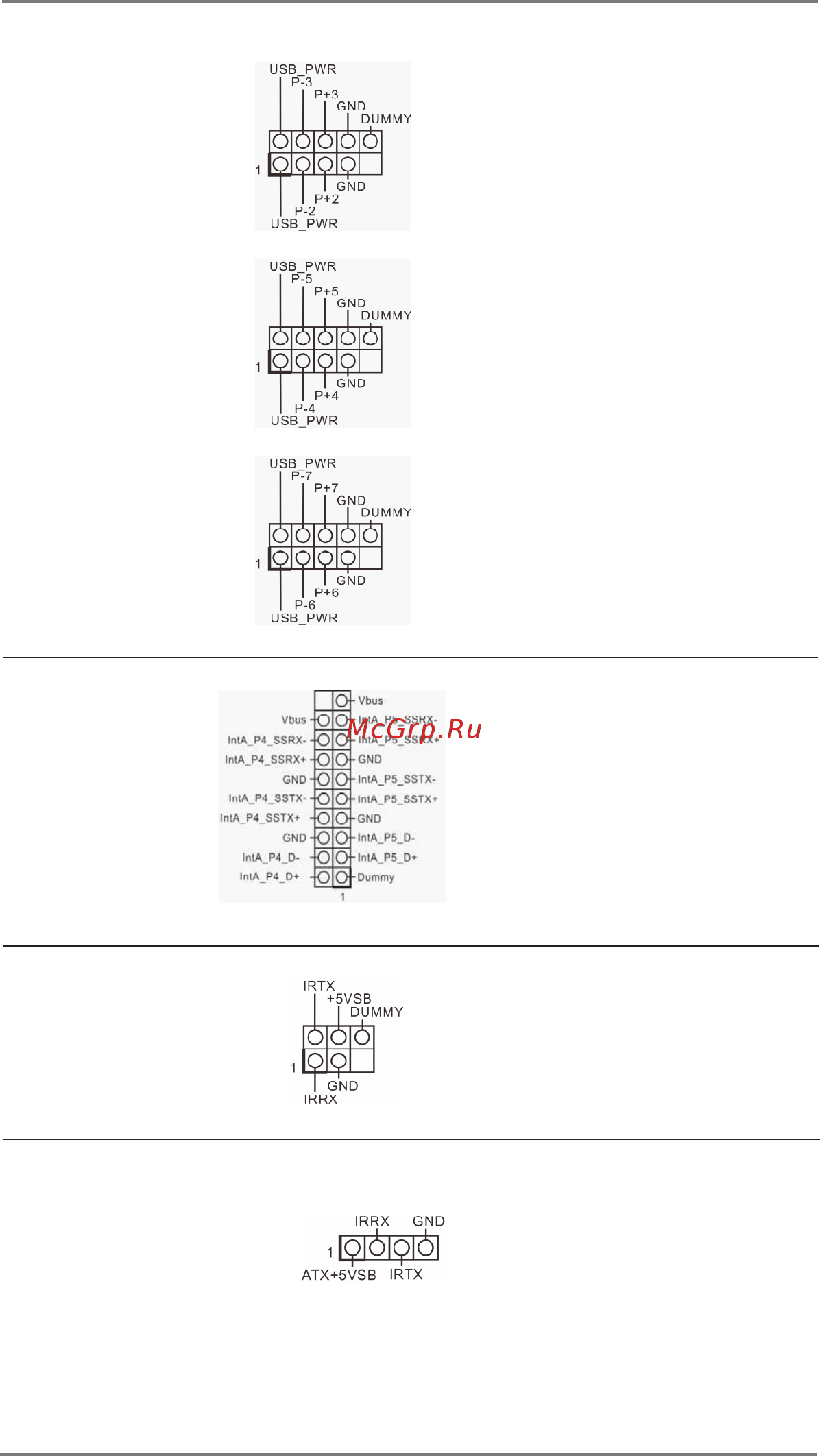

USB 2.0 Headers Besides two default USB 2.0
(9-pin USB2_3)
ports on the I/O panel, there are
(see p.14, No. 26)
three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
(9-pin USB4_5)
(see p.14, No. 28)
(9-pin USB6_7)
(see p.14, No. 29)
USB 3.0 Header Besides four default USB 3.0
(19-pin USB3_4_5)
ports on the I/O panel, there is
(see p.14, No. 12)
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.14, No. 32)
and receiving infrared module.
Consumer Infrared Module Header This header can be used to
(4-pin CIR1)
connect the remote controller
(see p.14, No. 30)
receiver.
