16

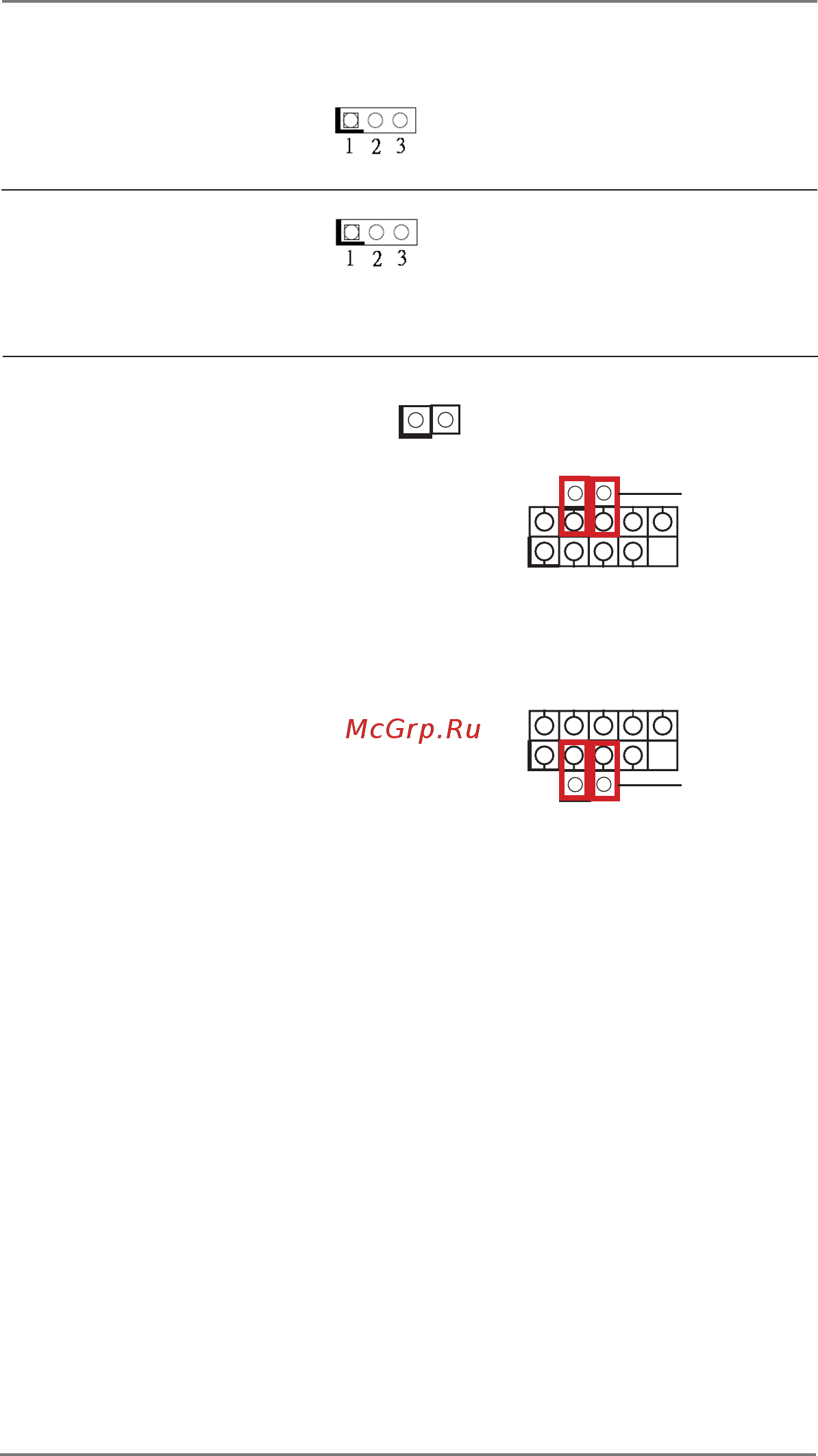

Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SET1)
2-3: Pull-Low
(see p.8, No. 18)
EDP_LVDS Jumpers 1-2: eDP
(3-pin EDP_LVDS_J1, EDP_LVDS_J2)
2-3: LVDS
(see p.8, No. 1)
* Standard BOM supports
LVDS output only.
USB7_S_M2, USB6_S_MPCIE1
USBPort7_S_M2_2 Slot:
(2-pin USB7_S_M2, USB6_S_MPCIE1)
Open: USB2.0 Connector
(see p.8, No. 31)
Short: M2_2 slot Function
USBPort6_S_Mini-PCIE Slot:
Open: USB2.0 Connector
Short: Mini-PCIe Function
1
1
1
USBPort6_S_Mini-PCIE Slot
USB2.0 Connector
(USB2_6_7)
1
1
USBPort7_S_M2_2 Slot
USB2.0 Connector
(USB2_6_7)
