19

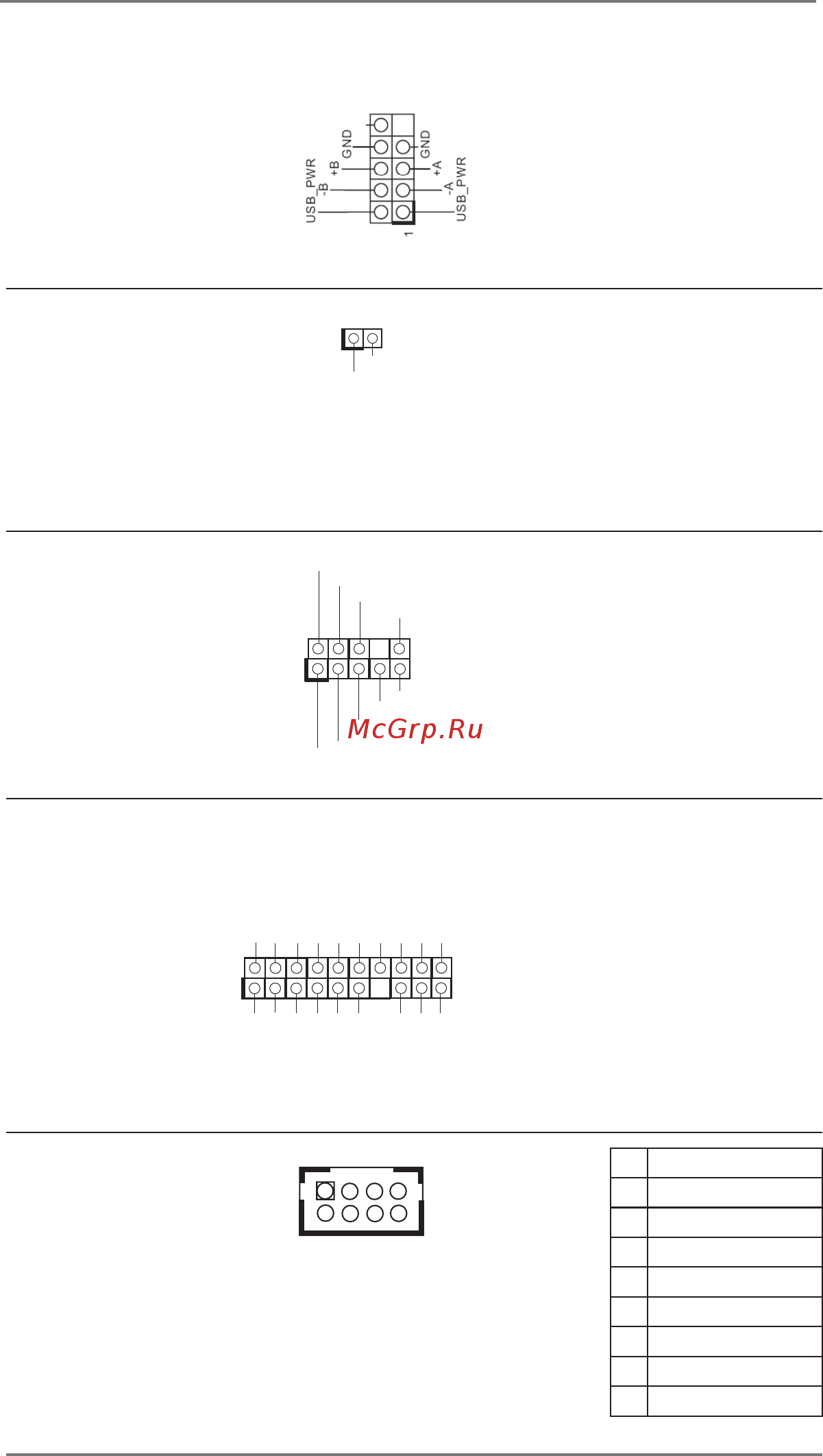

USB 2.0 Headers Besides four default USB 2.0
(9-pin USB4_5: see p.8, No. 16)
ports on the I/O panel, there
(9-pin USB6_7: see p.8, No. 17)
are two USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
Chassis Intrusion Headers This motherboard supports
(2-pin CI1/CI2: see p.8, No. 29)
CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.8 No. 26)
convenient connection and
control of audio devices.
HD LE D-
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
TPM Header This connector supports a
(17-pin TPM1)
Trusted Platform Module (TPM)
(
see p.8, No. 23)
system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
PS2_KB_MS1
(8-pin PS2_KB_MS1)
(see p.8, No. 21)
1
GND
GND
S_PWRDWN#
LAD2
SMB_CLK_MAIN
PCICLK
PCIRST#
LAD3
+3V
LAD0
GND
FRAME
SMB_DATA_MAIN
LAD1
SERIRQ#
GND
+3VSB
48MHz
+5V
1
PIN Signal Name
1 KBCLK
2 +5V
3 KBDATA
4 +5V
5 MSDATA
6 GND
7 MSCLK
8 GND
