1 SFP+ Port (Fiber) (LAN1)

2 SFP+ Port (Fiber) (LAN2)

M599R

•

1 x Mezzanine Card

•

4 x Screws

•

4 x Standos

•

4 x Nuts

•

1 x Support CD

•

1 x Quick Installation Guide

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these head-

ers and connectors. Placing jumper caps over the headers and connectors will cause permanent

damage to the motherboard.

Front LAN LED Connector

(LAN_ LED_1)

LAN3_LINK

LED_PWR

LAN4_LINK

is 4-pin connector is used for

the front LAN status indicator.

LAN Port LED Indications

Package Contents

mm (2.7in)68.00

mm (4.3in)109.40

mm (0.46in)11.60

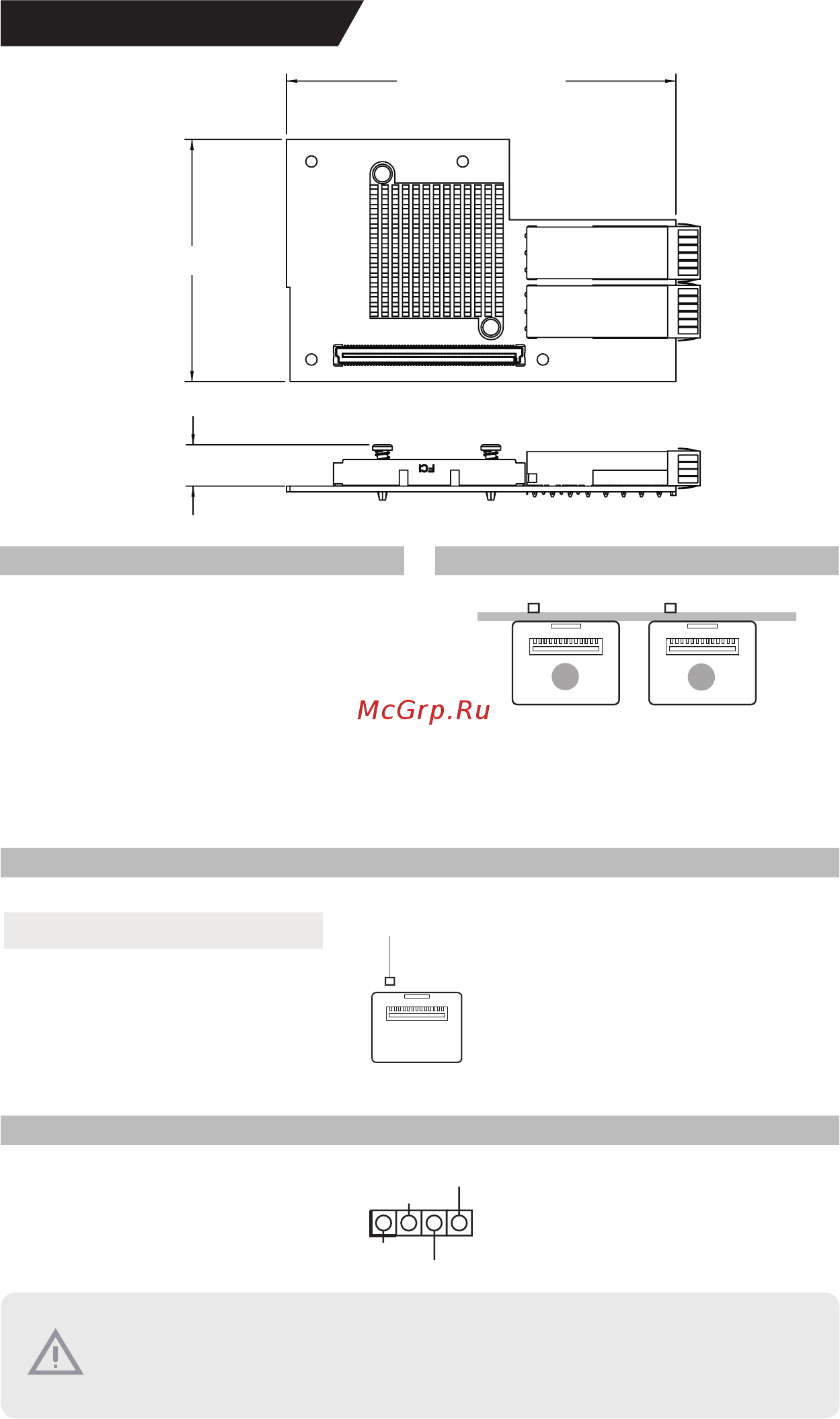

Layout

Onboard Header

Activity/LinkLED

Status Description

O No Link

Blinking 10G Data Activity

On 10G Link

ACT/LINK LED

LAN Port
