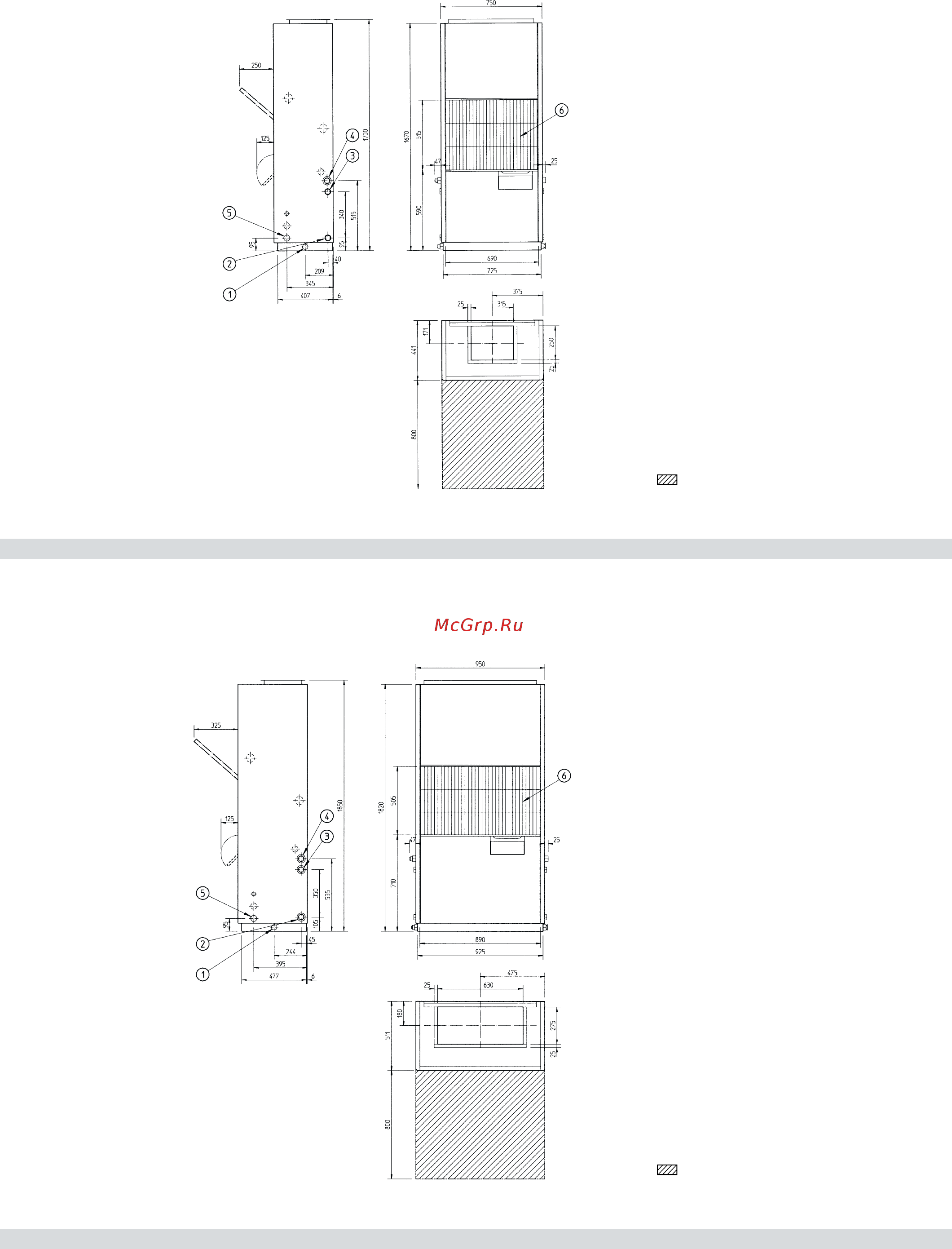

EUC3JB
EUC5JB
➀
lower drain connection 1" FPT
➁
condenser water inlet 3/4" FPT
➂
condenser water outlet 3/4" FPT
➃
upper drain connection 1" FPT
➄
power supply intake Ø45
➅
suction grille
service space
➀
lower drain connection 1" FPT
➁
condenser water inlet 1" FPT
➂
condenser water outlet 1" FPT
➃
upper drain connection 1" FPT
➄
power supply intake Ø45
➅
suction grille
service space
