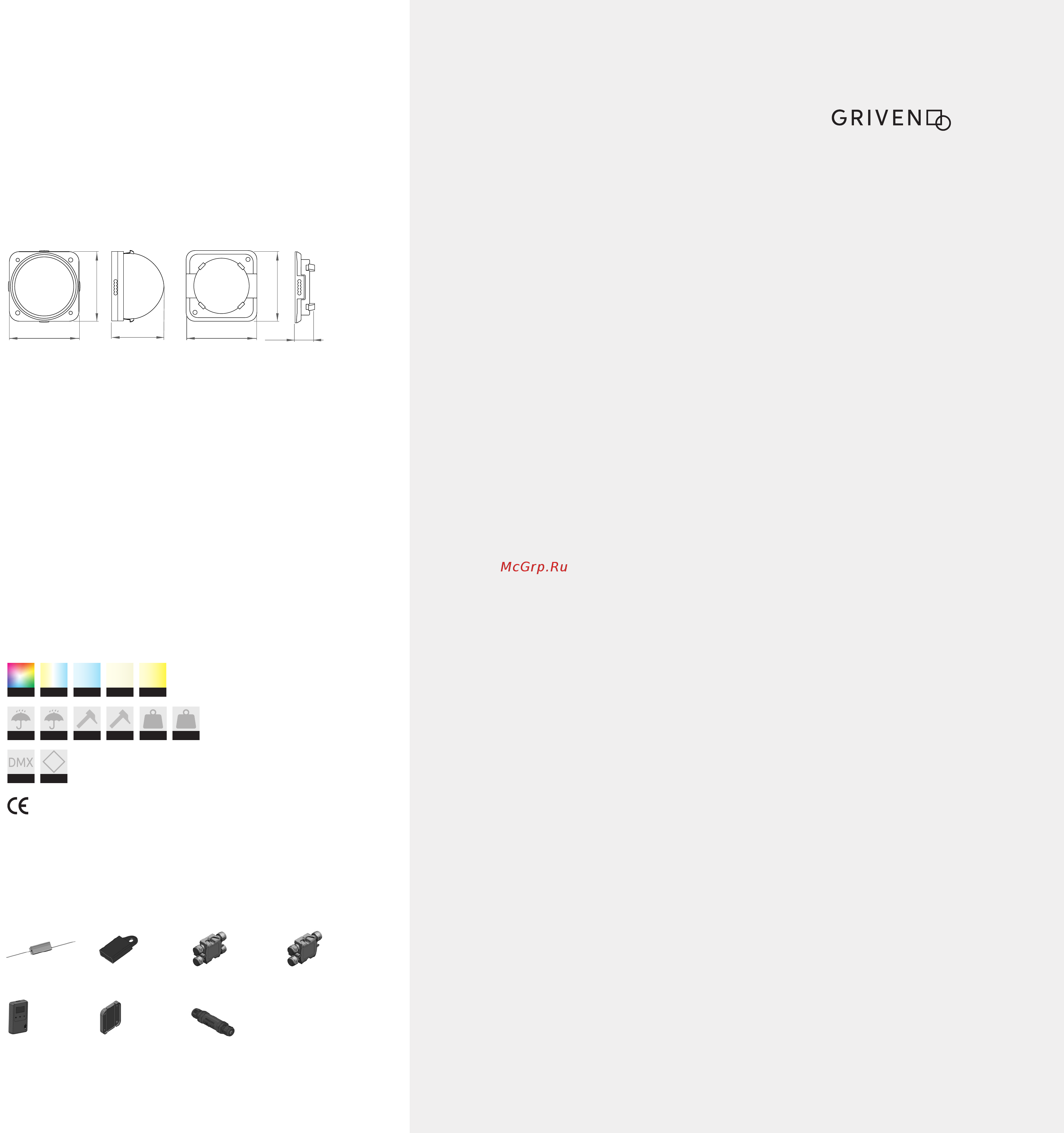

FEATURES AND OPTIONS
ACCESSORIES
GRAPH-i-DOT
16 mm
57,8 mm
43,5 mm
[2.3”]
[1.7”]
[0.6”]
57,8 mm
[2.3”]
59 mm
[2.3”]
59 mm
[2.3”]
RGB WWCW NWDW
DMX
IK09 IK10IP68 IP65
0.055 KG 0.080 KG
DIGITAL CONTROL SYSTEM SPECIFICATIONS AND CONFIGURATIONS AVAILABLE ON OUR WEBSITE
TECHNICAL SPECIFICATIONS
GRAPH-i-DOT is an ultra compact single pixel fixture module (IP68 FL version, IP65 DO version), whose
transparent plastic body hosts 6 mid-power RGB, Cold White, Natural White, Warm White or, on request,
monochrome power LEDs. Available with flat clear diffuser or opaline dome. Dimensions: 59 mm x 16 mm x
59 mm, 57.8 mm x 43.5 mm x 57.8 mm (with dome). Available in DMX remote control mode. GRAPH-i-DOT
must always be purchased with AL4707 Address setting DMX driver to set the DMX address. More GRAPH-i-
DOT units can be addressed with one AL4707. IP65 separate electronic driver. Power supply: Electronic driver
100÷277V / 50-60Hz LED module 24V DC. Power consumption: 1.44 W (max intensity). Electrical class: III.
Operating temperature: -40°C to 50°C (-40°F to 122°F).
CODES
AL4700 GRAPH-i-DOT
LED TYPE
RG RGB
DW From 2700K to 6500K
CW Cold White 6500K
NW Natural White 4000K
WW Warm White 3000K
OPTICS
FL Flat clear diffuser
DO Opaline dome
AL4702
ELECTRONIC DRIVER
AL4707 ADDRESS
SETTING DMX DRIVER
AL4708
ROPE FIXING PLATE
AL8210
SINGLE JOINT
AL4706
TERMINATOR
AL8211
MULTI-JOINT
AL8208
START LINE
AL8209
REPOWER T-JOINT
CLASS
III
FL
FL
FL
DO
DO
DO
NOTES
GRAPH-i-DOT must always be purchased with AL4707 Address setting DMX driver to set the DMX address.
More GRAPH-i-DOT units can be addressed with one AL4707.
