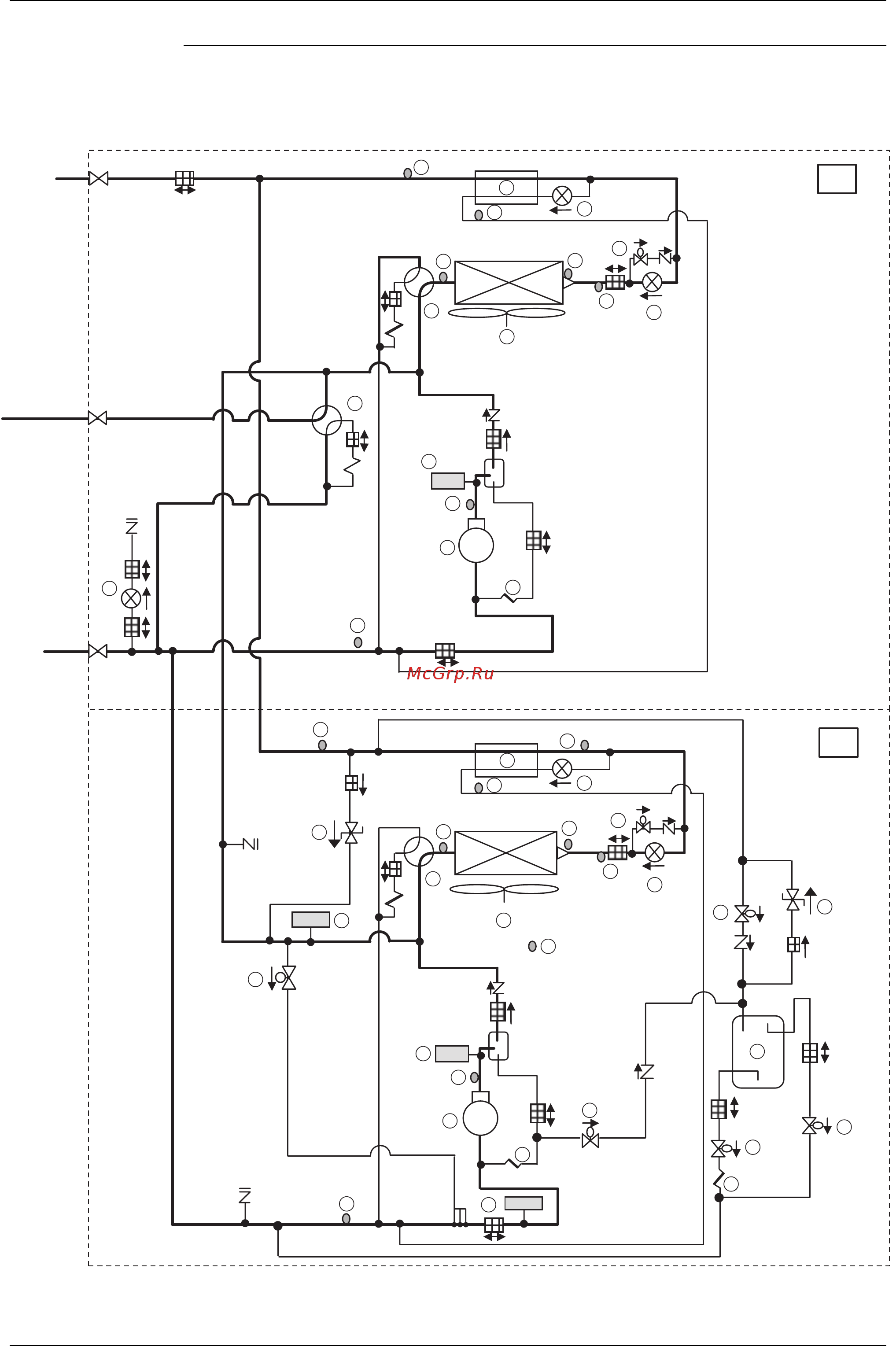

SiENBE37-704 Refrigerant Circuit
Refrigerant Circuit 59
REYQ8P, 10P, 12P
(8HP, 10HP, 12HP Single Type)
(INV Unit + STD Unit)
Right
INV
S1PH
STD
S2PH
Liquid
Pipe
Stop
Valve
Subcool Heat Exchanger 2
Heat Exchanger 2
Dual Pressure
Gas Pipe
Suction
Pipe
Stop
Valve
Left
Subcool Heat Exchanger 1
Gauge Port
Heat Exchanger 1
Gauge Port
Stop
Valve
19
18
46
48
50
26
45
47
23
34
29
42
40
24
26
38
36
39
35
37
25
27
30
22
33
28
31
32
S1NPH
S2NPL
8
11
6
4
2
9
20
17
7
10
5
3
13
12
1
21
15
14
16
