A68N-5200/A68N-5000/A68N-3800/A68N-2100 UEFI BIOS Manual

Change Settings

This item selects an optimal setting for Super IO device.

Options: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, 4, 5, 6, 7, 10,

11, 12 / IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12 / IO=3E8h; IRQ=3,

4, 5, 6, 7, 10, 11, 12 / IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12

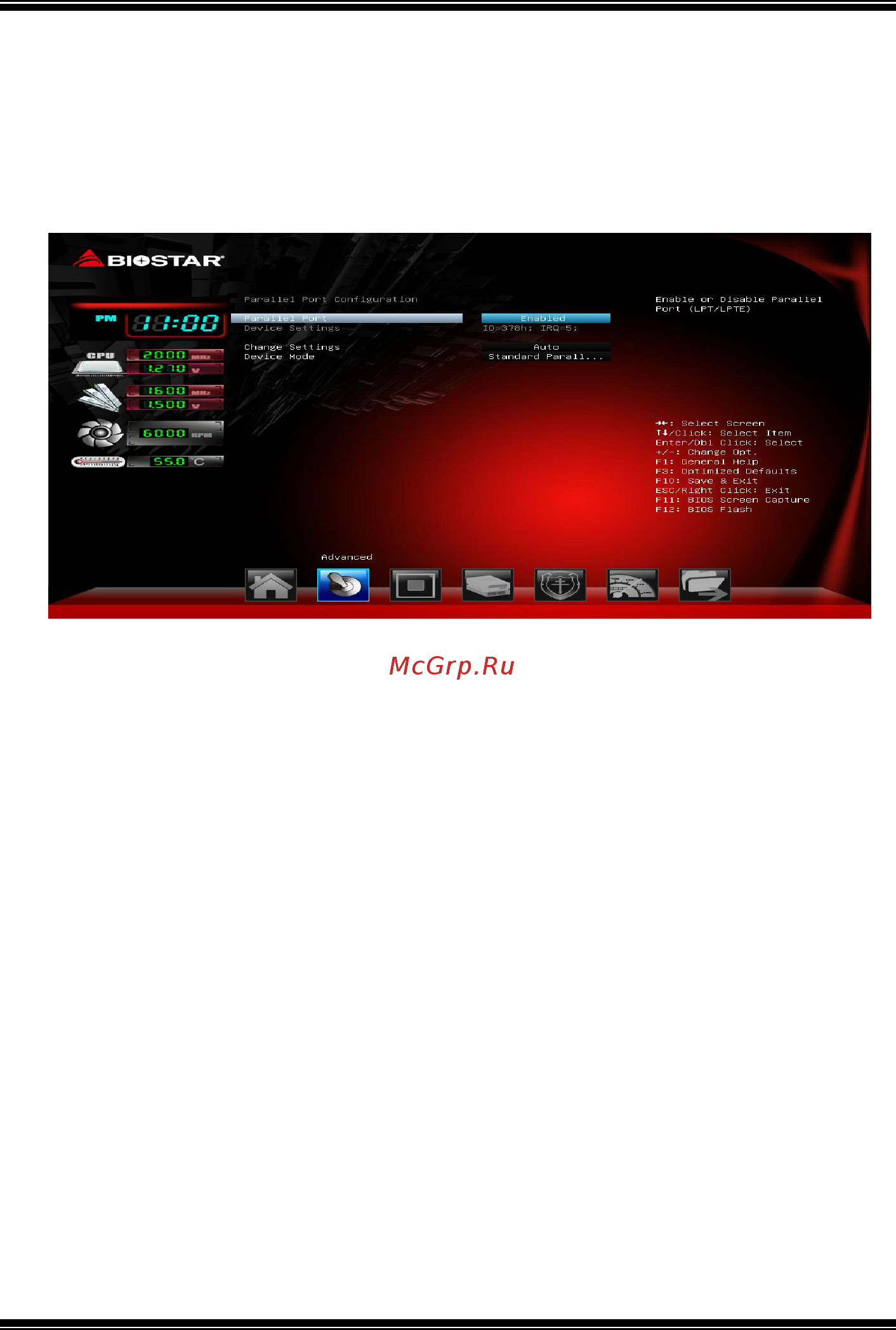

Parallel Port Configuration

Parallel Port

This item enables or disables Parallel Port (LPT/LPTE).

Options: Enabled (Default) / Disabled

Change Settings

This item allows you to select an optimal setting for Super IO device.

Options: Auto (Default) / IO=378h; IRQ=5 / IO=378h; IRQ=5, 6, 7, 10, 11,

12 / IO=278h; IRQ=5, 6, 7, 10, 11, 12 / IO=3BCh; IRQ=5, 6, 7, 10,

11, 12 / IO=378h; / IO=278h; / IO=3BCh;

Device Mode

This item allows you to change the Printer Port mode.

Options: Standard Parallel Port Mode (Default) / EPP Mode / ECP Mode /

EPP Mode and ECP Mode
