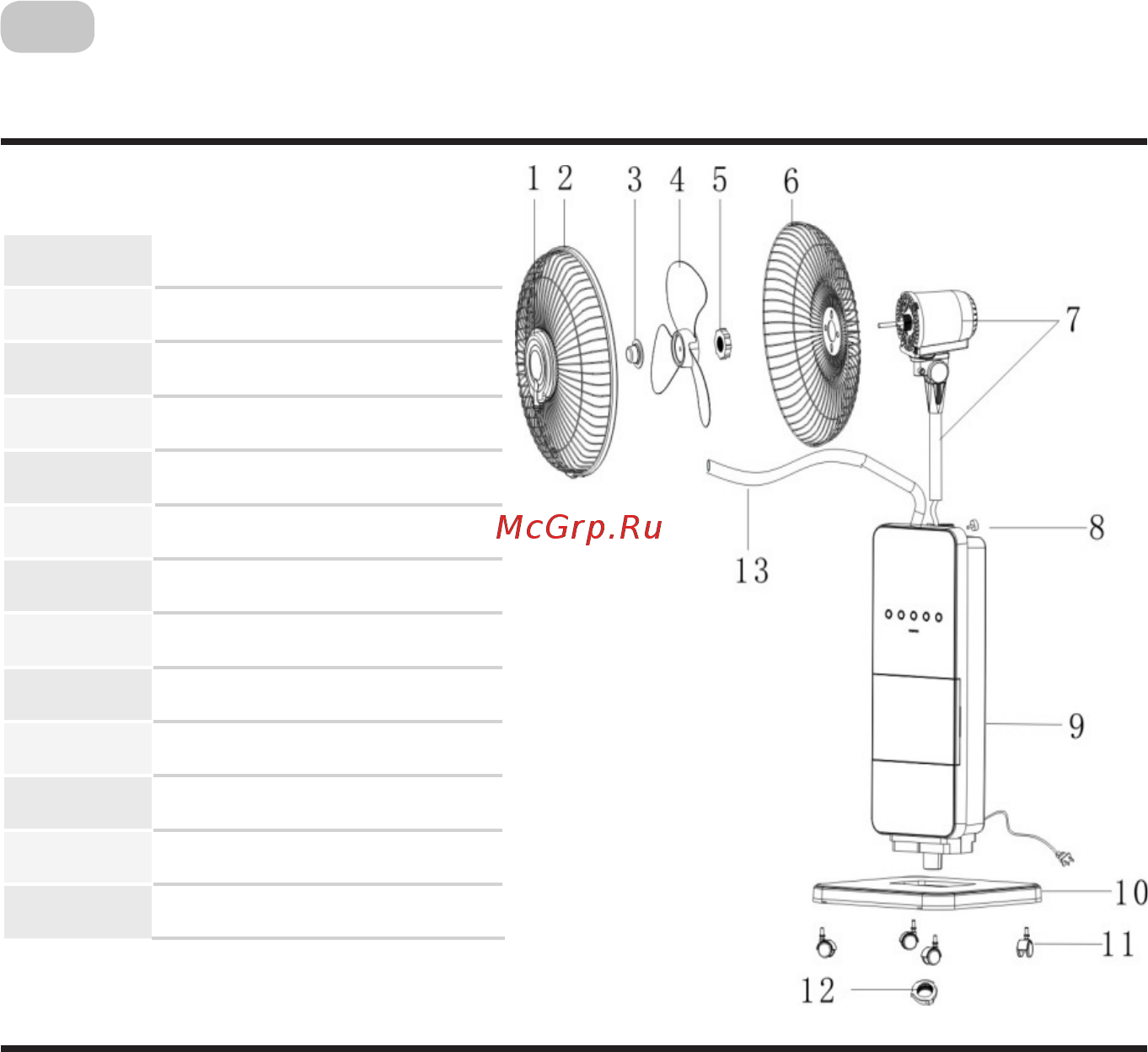

FAN ASSEMBLY

INDEX PART NAME

1 Mist outlet dish

2 Front fan grill

3 Blade cap

4 Fan blade

5 Grill mounting nut

6 Rear fan grill

7 Motor set

8 Set screw

9 Fan body

10 Base

11 Wheel(s)

12 Base nut

13 Mist tube

HOW TO ASSEMBLE:

1. Fix the 6 wheels into their holes of base.

2. Install fan body on the base, and fasten the base nut.

3. Insert the rear guard into the motor and match 3 rods on the front

side of the motor to 3 holes of the rear guard, and fasten the rear

guard tightly by turning the guard mounting nut clockwise.

4. Insert the blade to the shaft and ensure the pin enter the

blade slot and tighten the blade using the blade cap turning

anticlockwise.

5. Fix the front guard in the upright position on the rear guard, and

clip it properly. Make sure that they are connected from the upper

side.

6. Fix the plastic tube into front mist plate and tube joint, then nish

assembling.
