288
Commissioning Manual ED721208
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
98

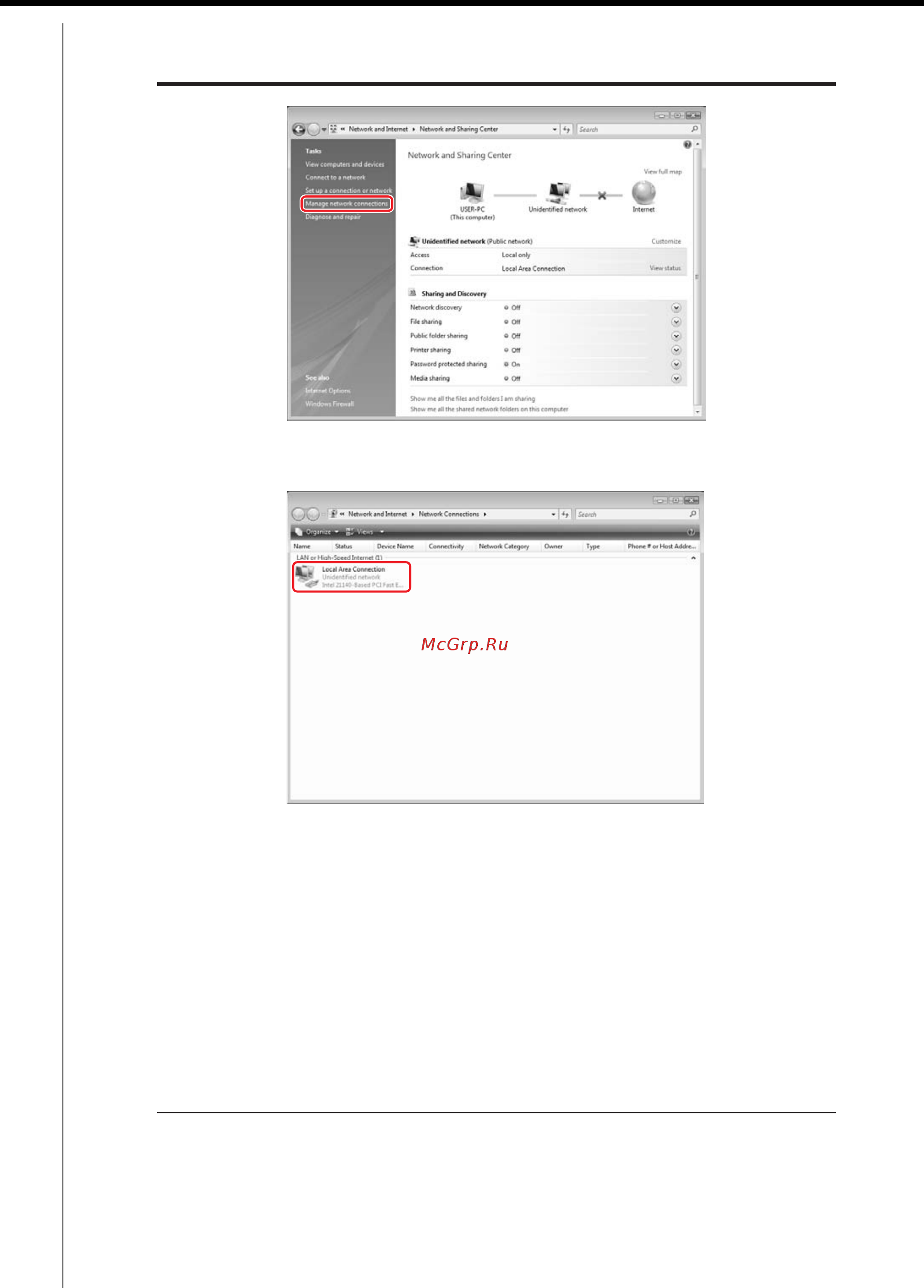

4. Click [Manage network connections].
5. Double click [Local Area Connection].
