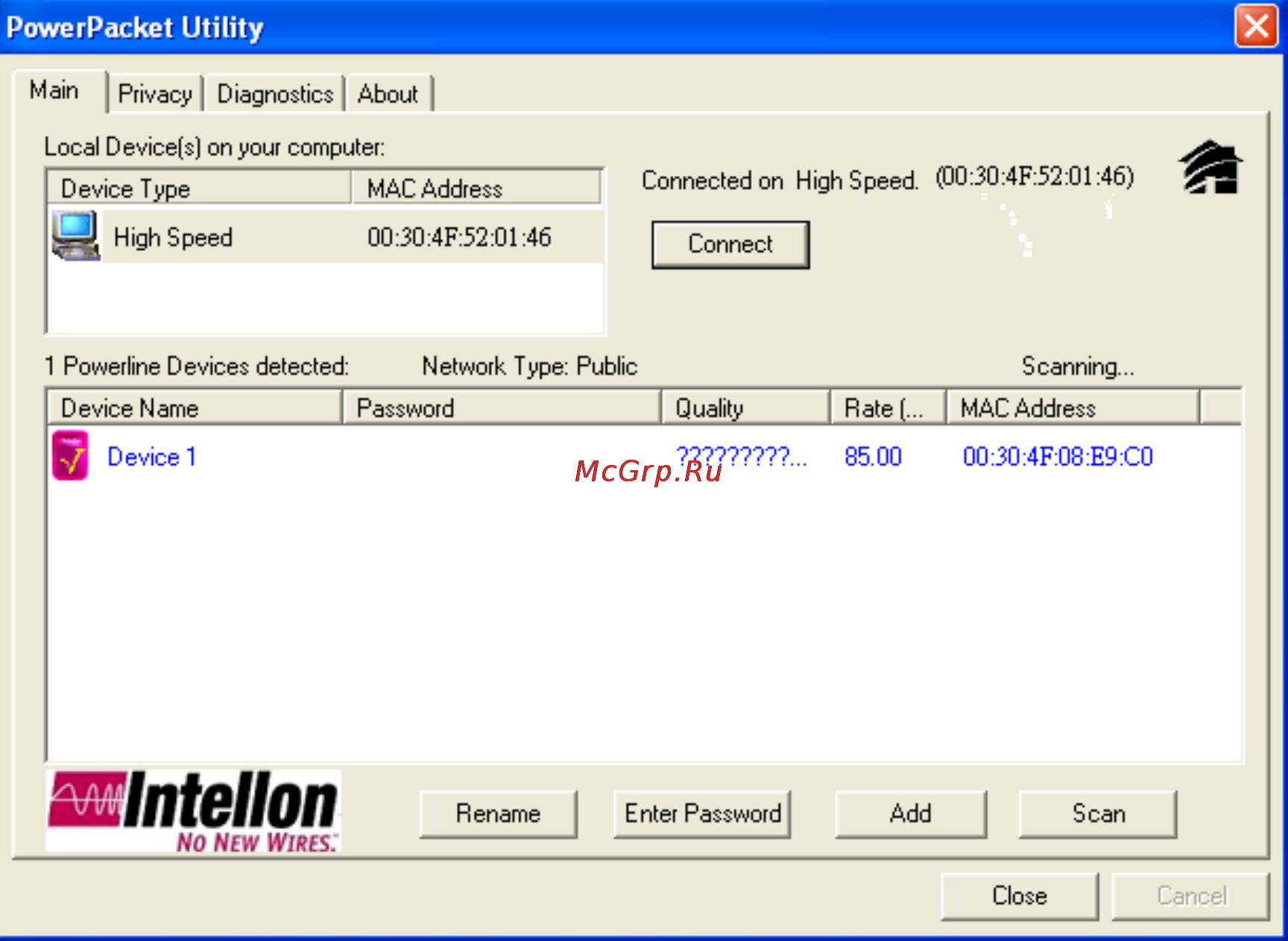

The Main tab shows all the other powerline units on your home network. It
will represent them by MAC Address, and will also show the available
bandwidth to each unit (Units farther away from another powerline device
might have a lower Data Rate). If you add or remove units from your
home network, click the “Scan” button to re-scan the network, and refresh
with any changes.
**Note** Only units with the same Network Password will be shown,
(Password case sensitive).
**Note** If a unit shows MAC Address of all 0’s, this unit might not have a
solid connection, or might not connect at all.
**Note** If there are units in the home network, but nothing displays in this
Network scan, try to unplug all devices, and plug them back (Only do this
with the units that you do not view in the network screen, you don’t have to
do this with all units.)
If the problem persists, try to move the unit closer to this current unit
(adjacent plugs on the same wall socket is most preferable). If the
problem still persists and that unit is still not shown on the network, then
the unit might be defective. Please contact technical support. Otherwise if
you view the unit working, distance might be the only issue.
16
