Microsoft VPN

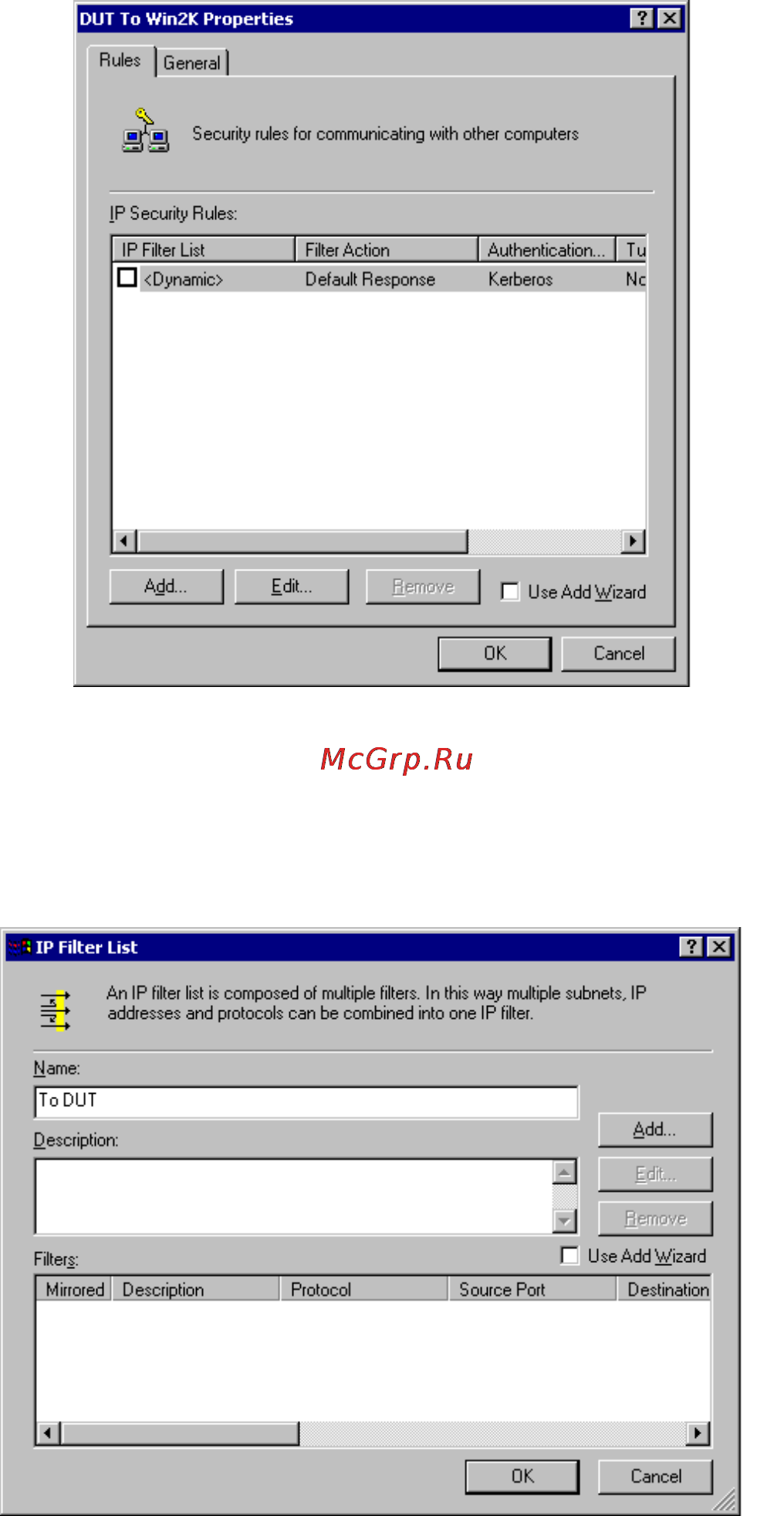

Figure61: Windows 2000/XP - Policy Properties

• Note that no rules are in use. Two 2 rules are required - incoming and outgoing.

• The outgoing rule will be added first.

6. Deselect the "Use Add Wizard" checkbox, then click "Add" to view the screen below.

Figure62: IP Filter List

7. Type "To DUT" for the name, then click "Add" to see a screen like the following.
