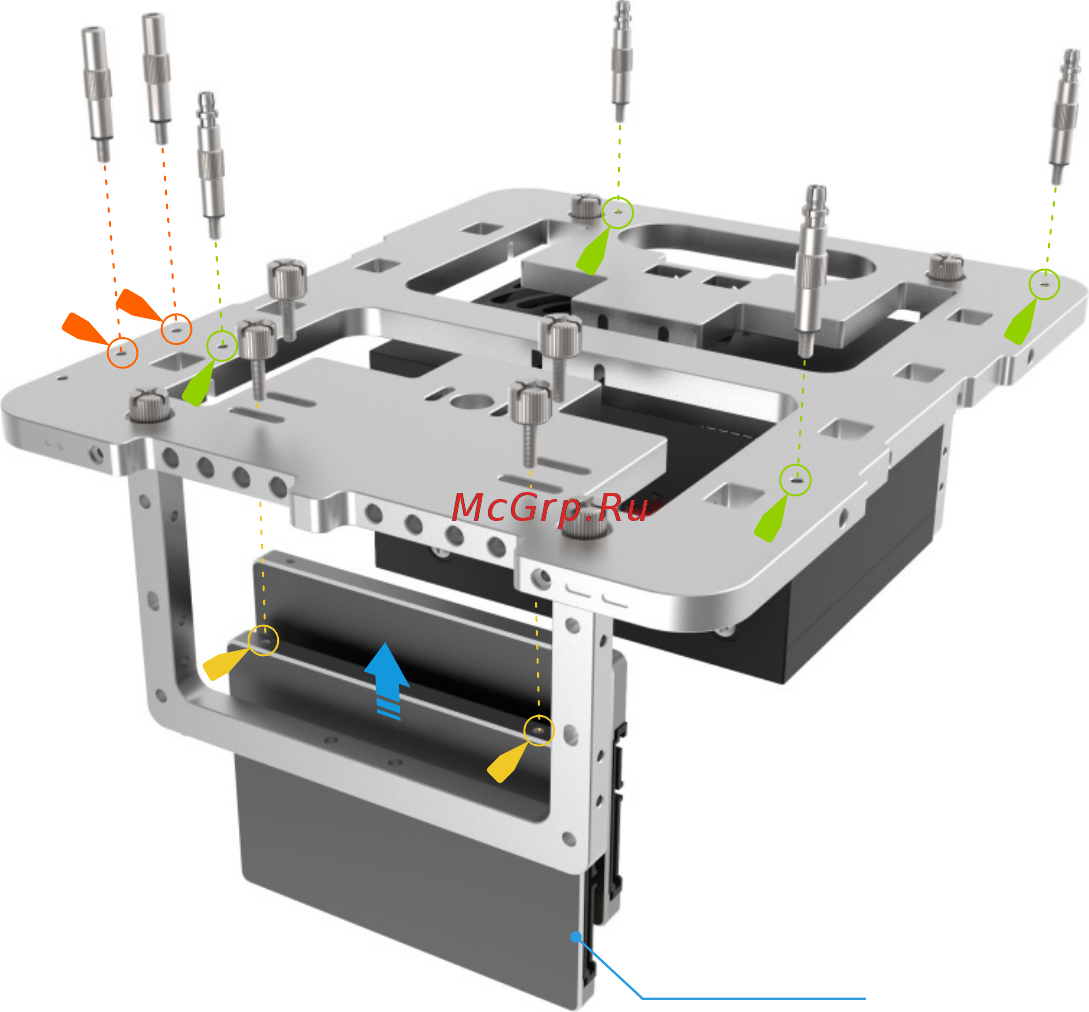

Fitting hard drives & standoffs to the main body

The BC1 Mini supports 2 x 2.5" drives which mount vertically to the underside of the

main body using the M3 thumbscrews.

In preparation for fitting the motherboard and PCI card, standoffs must be fitted to the

upper side of the main body. A total of 4 standoffs are required for the motherboard and 1

or 2 standoffs for the PCI card depending on single or dual width design. The

motherboard uses pushpin or standard standoffs while the PCI cards require the

threaded standoffs.

Note that threaded standoffs can also be used for the motherboard instead of the

pushpin ones or in combination to lock the motherboard more securely for permanent

setups, however additional M3 motherboard screws will be required.

2.5" Drive
