P4 - OVERVIEW OF ASSEMBLY WITHOUT HT4

Overview of Assembly Without HT4

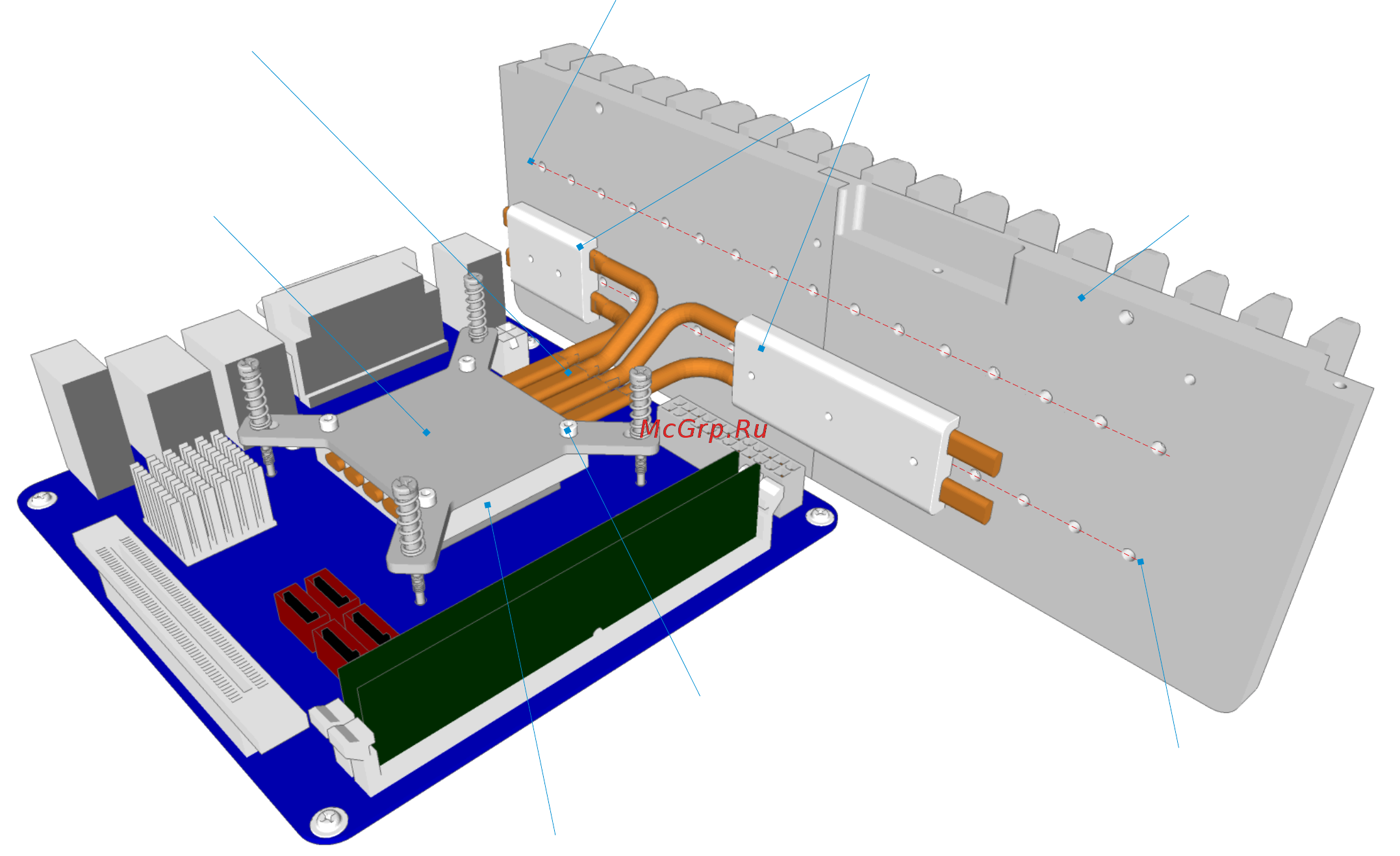

Below if a picture showing typical assembly without using the HT4. It is important to become familiar with

all the parts and assembly of this in order to understand the usage and fitting of the HT4. Note that all of

these parts are already supplied with your chassis. The HT4 will allow the heatpipes and connector

blocks to fix to the upper heatsink position.

Upper Chassis Heatsink Position

Lower Chassis

Heatsink Position

Heatsink Connector Blocks

Heatpipes

Chassis Heatsink

Upper CPU Mount

Lower CPU Mount

(not required when using the HT4)

Hex Screw M3 x 6
