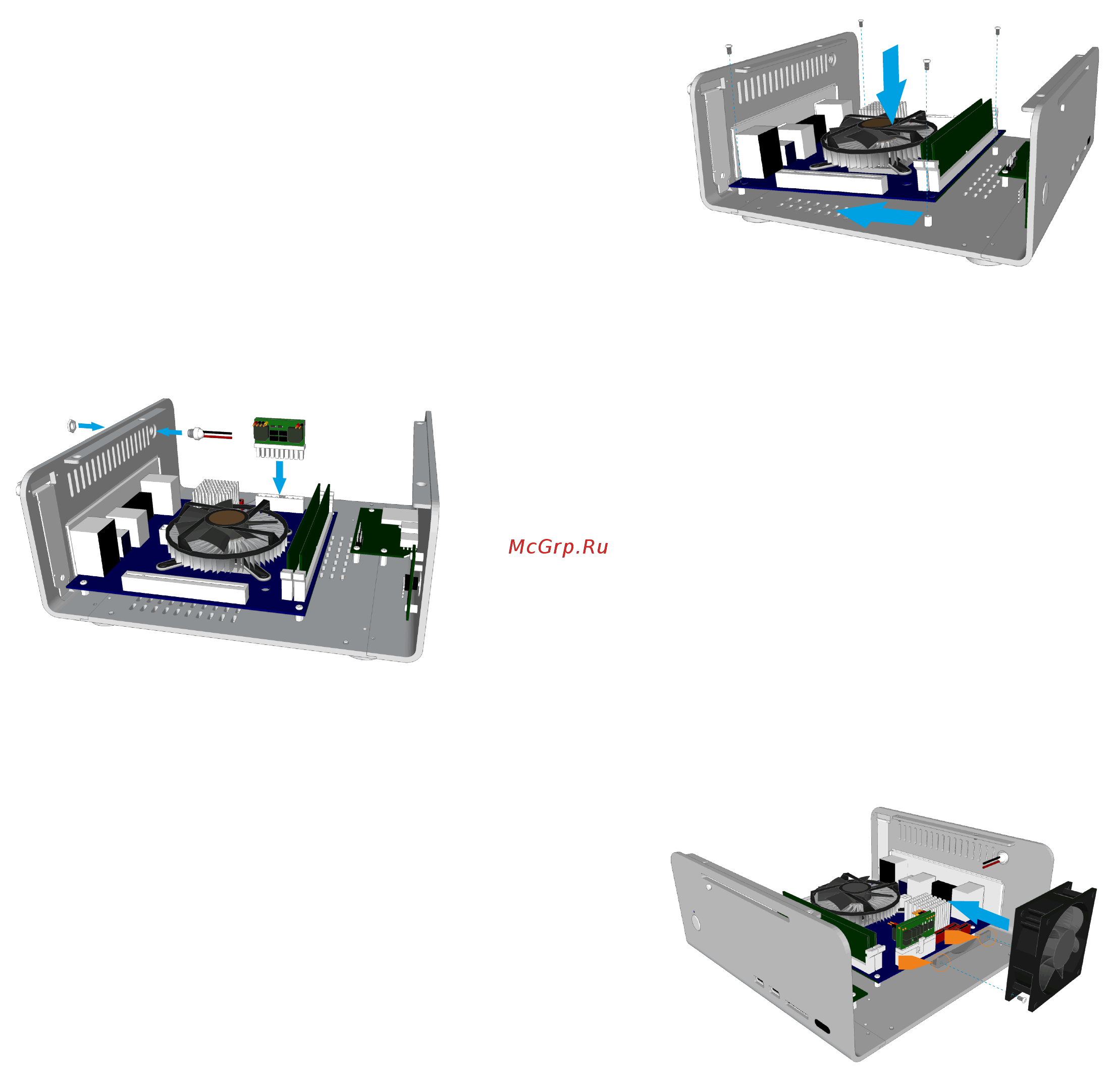

Installing the Motherboard

Carefully lower the motherboard into the chassis, with the

I/O port side leading so that the ports can fit into the I/O

shield.

When the motherboard is correctly in position, fix it to the

chassis stand-offs using the screws provided. Ensure that all

the holes correctly align before fully tightening the screws.

Connect NanoPSU & Other Cables

With the motherboard in place, you can now connect the

PSU and any other internal connectors such as the power

button switch. You should also connect the SATA cables in

perpetration for installing the HDD/ODD cage assembly.

The front USB & card reader require 3 motherboard USB

ports, 1 for the card reader, and 2 for the USB ports.

Fitting the Chassis Fan

The F7C can accommodate a single 80x80x20mm fan

to remove warm air from inside the chassis. The fan

is not supplied with the chassis and must be

purchased separately.

To install the fan, align it with the fan bracket and

secure it in place with 2 screws as shown.

P6 - INSTALLING THE MOTHERBOARD & CHASSIS FAN
