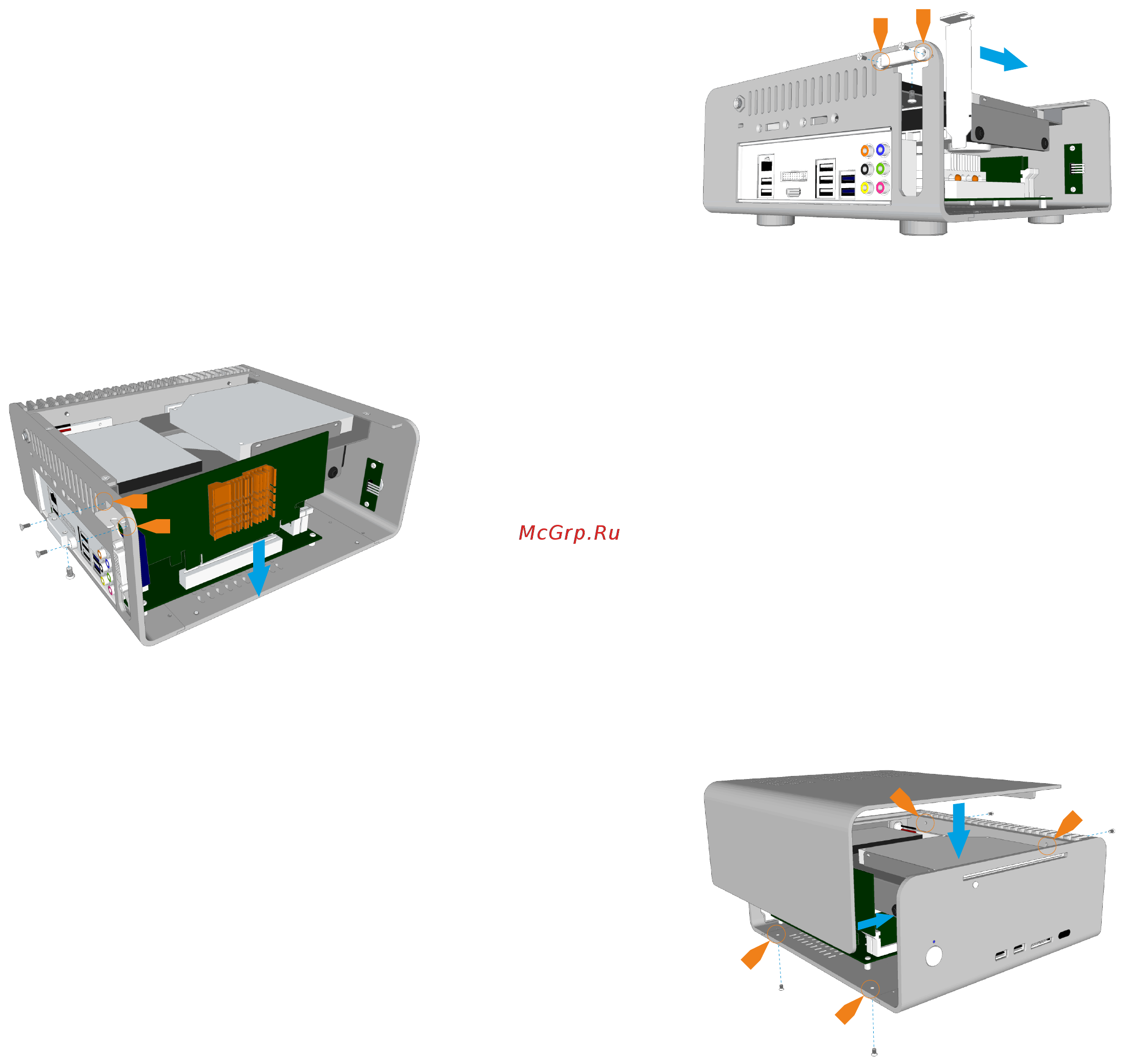

Installing PCI Card (Optional)

To install an expansion card, first remove the pre-installed

PCI blanking plate by removing the single lower screw. The

PCI mount can also be removed to make it easier to install

the expansion card. This is done by removing the 2 screws

either side on the mount.

Carefully place the card into the motherboard slot ensuring

the rear side (where the ports are located) firstly passes

through the expansion slot opening of the chassis. Once the

card is fully seated into the motherboard, replace the PCI

mount and finally secure the card with the single screw

from underneath the mount.

Replace the Top Panel

With all the components installed, all that remains is to

replace the top panel. Prior to doing this, ensure that all

cables are connected and all components are securely

fitted. Replace the top panel and secure it in place using 4

screws, 2 from the side and 2 from underneath the chassis.

P10 - INSTALLING PCI CARD AND TOP PANEL
