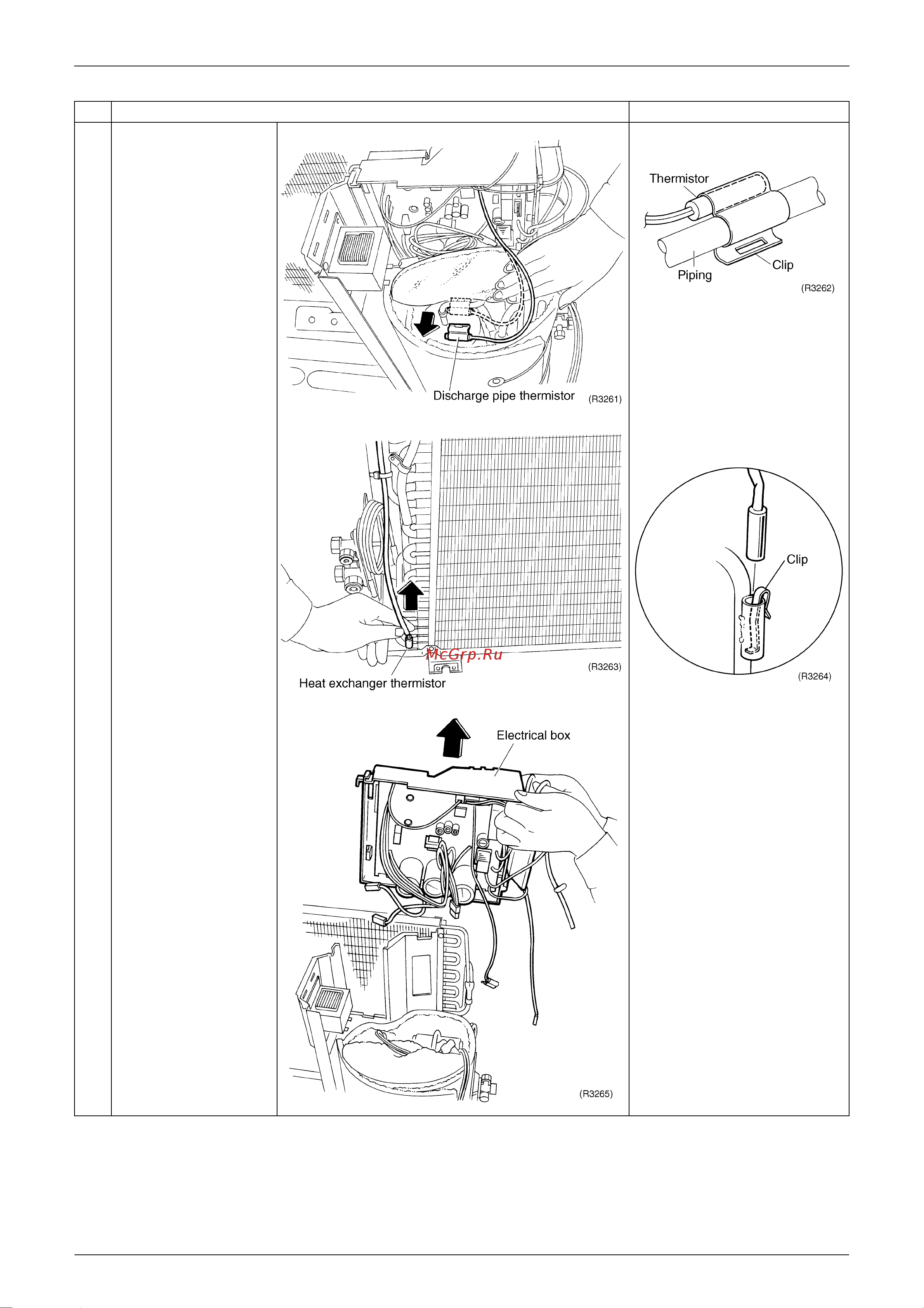

Outdoor Unit Si04-604
164 Removal Procedure
4
Release the discharge
pipe thermistor.
Be careful so as not to lose
the clip for thermistor.
5
Release the heat
exchanger thermistor.
Be careful so as not to lose
the clip.
6
Lift and remove the
electrical box.
Step
Procedure Points
