LEVEL MIDLOW HIGHGAIN VOLUME
CD/TAPE
INPUT
GUITAR
INPUT
POWER
LEAD RHYTHM
EQUALIZER
DIGITAL EFFECTS
LEVEL PROGRAM
Dual 35 DFX
5
6
7
8
2
3
4
1
PREAMP
CHANNEL
SELECT
EFFECTS
USA
UK
ON
OFF
LEAD
RHYTHM
1. HALL REVERB
2. SPRING REVERB
3. SLAP BACK
4. DELAY
6. CHORUS/REVERB
7. FLANGE/REVERB
5. CHORUS
8. TREMOLO
12
3
5
6
789
10
12
13
41114
15

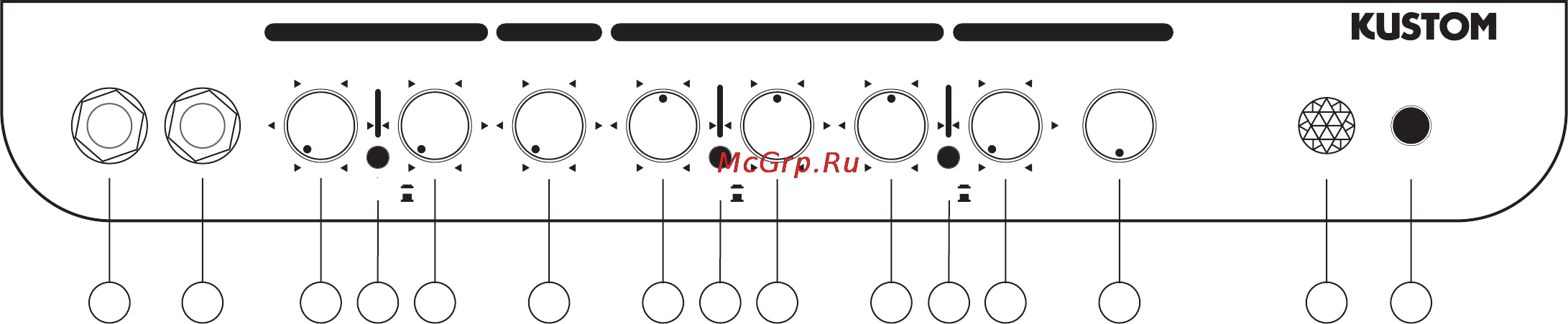

1.) CD/Tape Input
2.) Guitar Input Jack -
3.) Lead Gain -
4.) Channel Switch -
5.) Lead Volume -
6.) Rhythm Level -
7.) Bass -
8.) Preamp Switch -
9.) Mid -
10.) High -
11.) Digital Effects On/Off -
12.) Effects Level -
13.) Program Select -
14.) Jewel Light -
15.) Power -
Back Panel - (not pictured)
Speaker Out -
Line Output -
Headphone Jack -
Footswitch Jack -
- this 1/4" 3 conductor jack will allow you to plug in a CD player, tape or any other source
to practice along with. It sums the left and right signals into a mono signal. To control the volume of the
source, adjust the output volume of the device. We suggest you turn the volume all the way down then
plug in and adjust the volume according to your taste.
this is a 1/4" 2 conductor input jack for plugging in your instrument. It is intended for
guitars but will accept other instruments as well.
adjust this clockwise to increase the amount of distortion you add to the overdrive signal.
Used in the lower ranges of the control, you get a less distorted sound, a "bluesy" tone. As you increase
the gain, you add tremendous amounts of distortion to the signal for a harder edged "crunch" tone.
this switch selects which preamp you are using. It will switch between the Rhythm and
Lead channels.
this control is the output volume control for the Lead Channel. It follows the same tone
circuit as the other channel. It's gain structure is determined by the lead gain control but this serves as the
overall master volume for this channel.
this is the volume control for the clean channel. It's gain structure is preset for maximum
signal before distortion and determines the output level of the amp.
this control is the bass control. It is passive and set to shelve frequencies at 65 Hz. This will effect
the low frequency signals. Turning it fully clockwise, the signal is left alone. Turning it counterclockwise,
the lows will be rolled off.
this switch selects which preamp style you are using. It will switch between the classic
USA warm sound or Brighter sound famous in the UK.
this control is the midrange control. It is passive and set to shelve frequencies at 1KHz. This will
effect the middle frequency signals. Turning it counterclockwise, your signal will "hollow out" the mids
which is popular in today's music.
this control is the high control. It is passive and set to shelve frequencies at 5KHz. This will effect
the high frequency signals. Turning it fully clockwise, the signal is left alone. Turning it counterclockwise,
the highs will be rolled off.
this switch engages the digital effects section.
this control adds the digital effects section and mixes it into the main signal buss. Several
different effects are available.
this switch will select any of eight different effects. 2- Reverbs, 2- Delays,
Chorus/Reverb, Flange/Reverb, and Tremolo.
this jewel light lets you know that the amplifier is on.
this switch turns on and off the AC power to the amp.
this is a 2 conductor 1/4" speaker output jack. This will disconnect the internal speaker and
allow an external speaker cabinet to be employed. Rating is 8 ohms.
this is a 2 conductor 1/4" line output jack. This will allow an external amplifier or mixing
board to be supplied with the signal from this amp. This signal is attenuated and comes from the power
amp.
this is a 1/4" 3 conductor jack for plugging headphones. It will sum the signal and put
the sound in both ears, thereby creating a pseudo-stereo sound. Volume will be determined by the volume
control on the channel you are on. It will disconnect the internal speaker when plugged in. This will allow
quiet practicing.
this is a 3 conductor 1/4" jack. This is for hooking up a footswitch (optional) to switch
channels (tip) and to turn on/off the digital effects (ring) .
Содержание
- Owner s manual dual 35 dfx 1
- Caution 2
- Kustom inc 4940 delhi pike cincinnati oh usa 800 999 5558 fax 513 347 2192 www kustom com 2
- Warning 2
- Alternative harder edged rock this setting will deliver more of a cutting tone whether used for rhythm or lead sounds it will cut through the drums and get you heard if you need more grunge increase the gain control for more distortion this style of music requires a slightly thinner harder edged tone full of midrange less reverb is required as it tends to muddy up faster songs but chorus give the tone a fatter fuller sound adjust to taste 4
- Blues lead or mellow crunch this setting is particularly useful in blues or softer rock songs and it is good for leads as well as rhythm parts it is good for power chords in back of leads you need to switch to the lead channel to make these settings work blues depending on the guitar you use usually adds treble but with more midrange and a fat bottom end this setting does not have as much gain as full out crunch adjust the gain control to the amount of distortion you desire blues usually has a reverb trail on the notes chorus is sometimes used to create a vibrato style sound adjust to taste 4
- Clean rhythm or country guitar these settings are the basic clean sounds and for general rhythm guitar country lead guitar and funky chunky rhythm sounds usually country guitar is a brighter more trebly edged sound the bottom end depends on what type of guitar you are using digital effects depends on taste rhythm guitar is mostly a clean full type of sound a little less treble than the country sound and a bit more midrange digital effects again depends on taste 4
- Heavy metal maximum crunch this setting is a good starting point for the notched out middle sounds associated with metal and heavy alternative sounds adjust the treble lows and digital effects to taste usually for a rhythm tone you want to have more lower end and less for leads distortion is an integral part of this style of music and this amp delivers it quite well 4
- Lead rhythm equalizer digital effects 4
- Suggested settings 4
- These settings are general starting points they are designed to get you close to the sound you are looking for if the control is not shown then it doesn t apply to this particular sound 4
