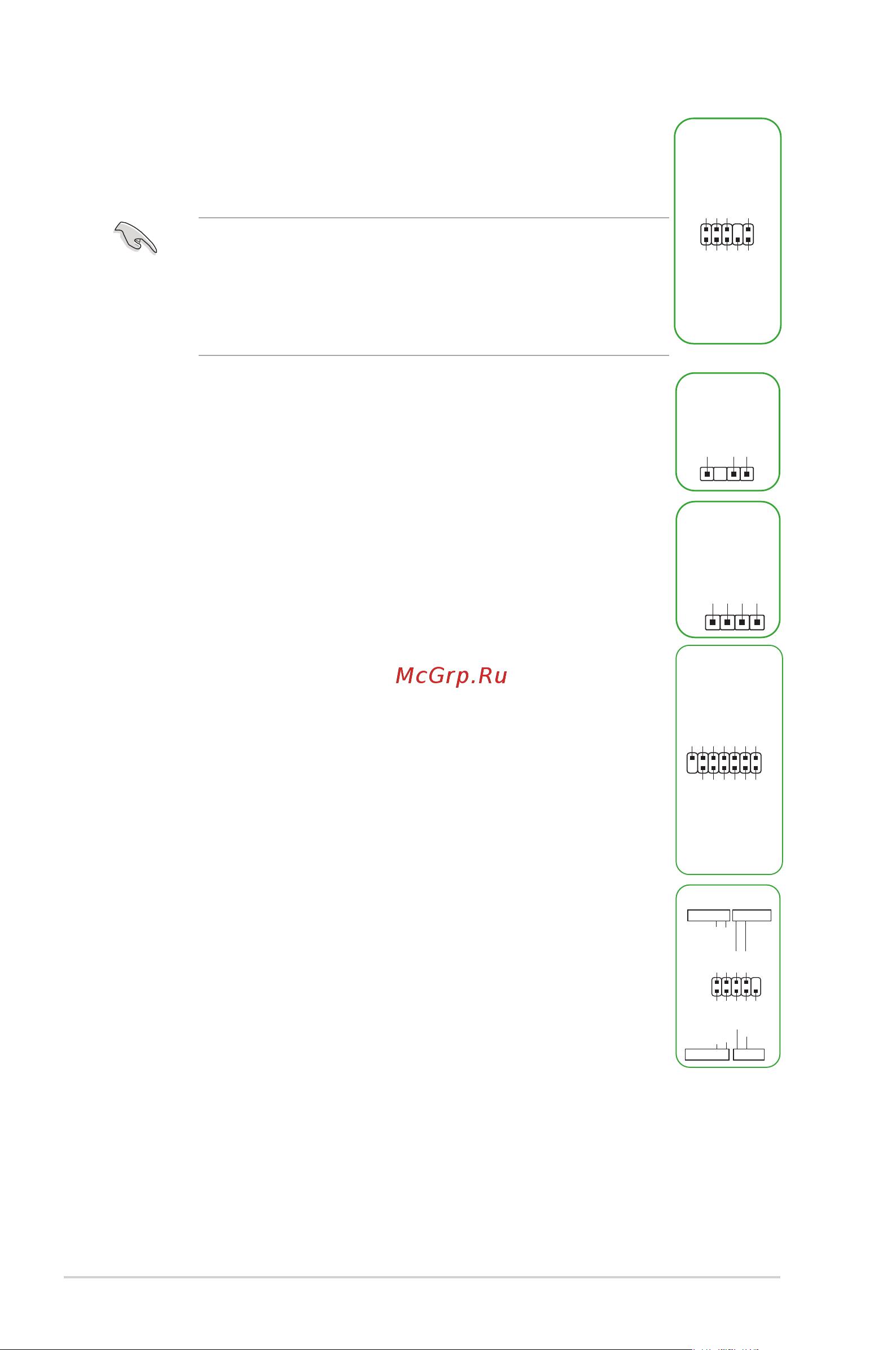

1-4
Chapter 1: Product Introduction
12. Front Panel Audio header
This header is for a chassis-mounted front panel audio I/O module that
supports HD audio standard. Connect one end of the front panel audio I/O
module cable to this header.
We recommend that you connect a high-denition front panel audio
module to this header to avail of the motherboard’s high-denition
audio capability.
If you want to connect a high-denition front panel audio module to
this header, set the Front Panel Type item in the BIOS setup to [HD
Audio]. By default, this header is set to [HD Audio].
13. S/PDIF Out header
This header is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Connect the S/PDIF Out module cable to this header, then install the module
to a slot opening at the back of the system chassis.
14. Speaker header
The 4-pin header is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
15. SPI TPM header
This header supports a Trusted Platform Module (TPM) system with a
Serial Peripheral Interface (SPI), allowing you to securely store keys, digital
certicates, passwords, and data. A TPM system also helps enhance network
security, protects digital identities, and ensures platform integrity.
16. 10-1 pin System Panel header
This header supports several chassis-mounted functions.
System power LED (2-pin +PWR_LED-)
This 2-pin header is for the system power LED. Connect the chassis
power LED cable to this header. The system power LED lights up when
you turn on the system power, and blinks when the system is in sleep
mode.
Hard disk drive activity LED (2-pin +HDD_LED-)
This 2-pin header is for the HDD Activity LED. Connect the HDD Activity LED cable to
this header. The HDD LED lights up or flashes when data is read from or written to the
HDD.
Power button/Soft-off button (2-pin PWR_BTN)
This header is for the system power button.
AAFP
AGND
NC
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
PWR_BTN
PWR_LED+
PWR_LED-
PWR
GND
HDD_LED+
HDD_LED-
Ground
HWRST#
(NC)
F_PANEL
+PWR_LED-
+HDD_LED- RESET
SPDIF_OUT
+5V
SPDIFOUT
GND
TPM
PIN 1
T_SPI_MOSI
T_SPI_CLK
GND
F_BIOS_WP#_R
S_SPI_TPM_CS2#
S_SPI_TPM_IRQ#
F_SPI_HOLD#_R
T_SPI_MISO
F_SPI_CS0#_R
+3V_SPI
NC
S_PLTRST#
VCCSPI
+5V
GND
GND
Speaker Out
SPEAKER
PIN 1
