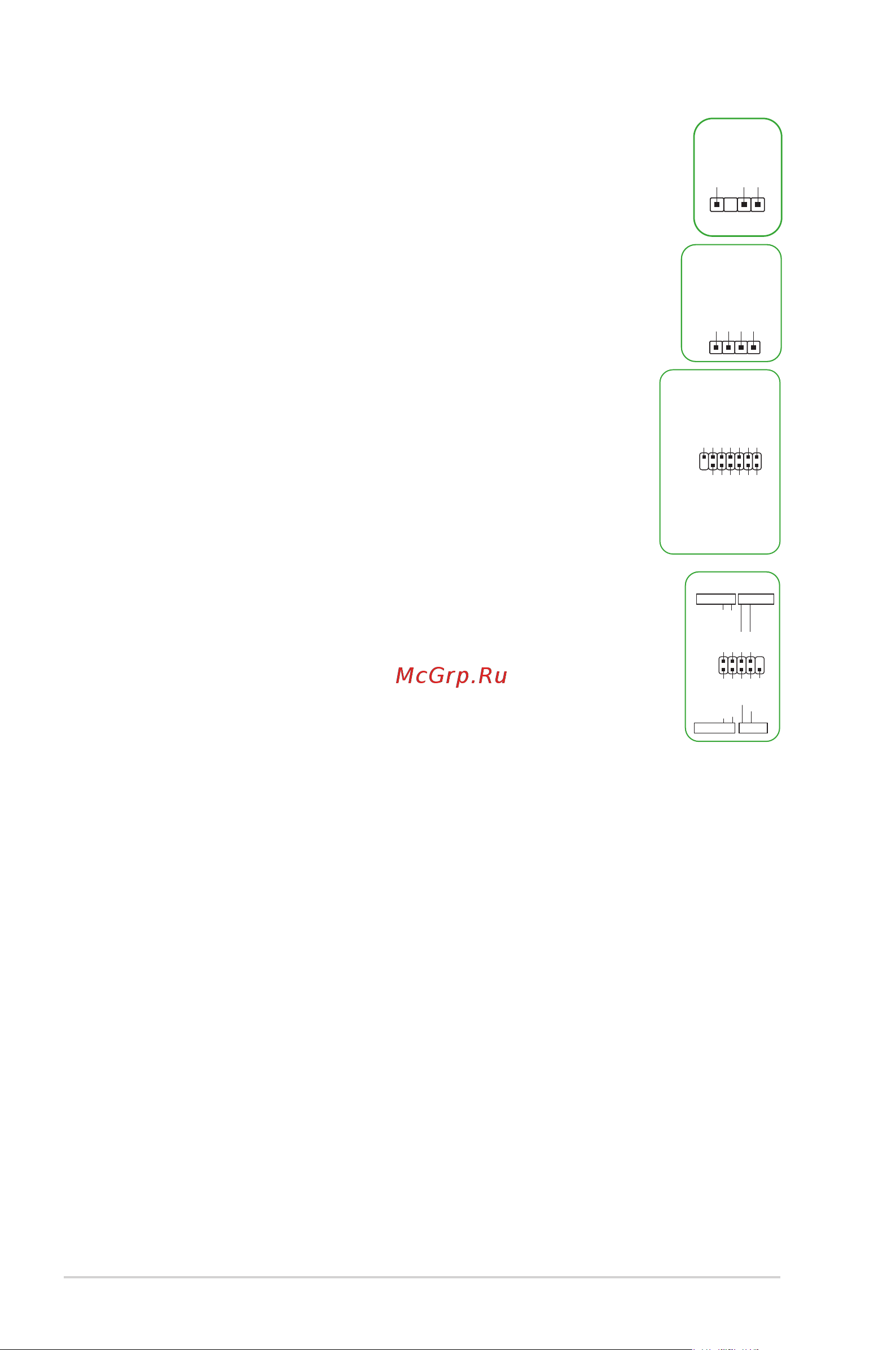

1-4
Chapter 1: Product Introduction
13. S/PDIF Out header
This header is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Connect the S/PDIF Out module cable to this header, then install the module to
a slot opening at the back of the system chassis.
14. Speaker header
The 4-pin header is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
15. SPI TPM header
This header supports a Trusted Platform Module (TPM) system with a Serial
Peripheral Interface (SPI), allowing you to securely store keys, digital
certicates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
16. 10-1 pin System Panel header
This header supports several chassis-mounted functions.
• System power LED (2-pin +PWR_LED-)
This 2-pin header is for the system power LED. Connect the chassis
power LED cable to this header. The system power LED lights up when
you turn on the system power, and blinks when the system is in sleep
mode.
• Hard disk drive activity LED (2-pin +HDD_LED-)
This 2-pin header is for the HDD Activity LED. Connect the HDD Activity LED cable to
this header. The HDD LED lights up or flashes when data is read from or written to the
HDD.
• Power button/Soft-off button (2-pin PWR_BTN)
This header is for the system power button.
• Reset button (2-pin RESET)
This 2-pin header is for the chassis-mounted reset button for system reboot without
turning off the system power.
TPM
PIN 1
T_SPI_MOSI
T_SPI_CLK
GND
F_BIOS_WP#_R
S_SPI_TPM_CS2#
S_SPI_TPM_IRQ#
F_SPI_HOLD#_R
T_SPI_MISO
F_SPI_CS0#_R
+3V_SPI
F2_SPI_CS1#_R
S_PLTRST#
VCCSPI
PIN 1
PWR_BTN
PWR_LED+
PWR_LED-
PWR
GND
HDD_LED+
HDD_LED-
Ground
HWRST#
(NC)
F_PANEL
+PWR_LED-
+HDD_LED- RESET
SPDIF_OUT
+5V
SPDIFOUT
GND
+5V
GND
GND
Speaker Out
SPEAKER
PIN 1
