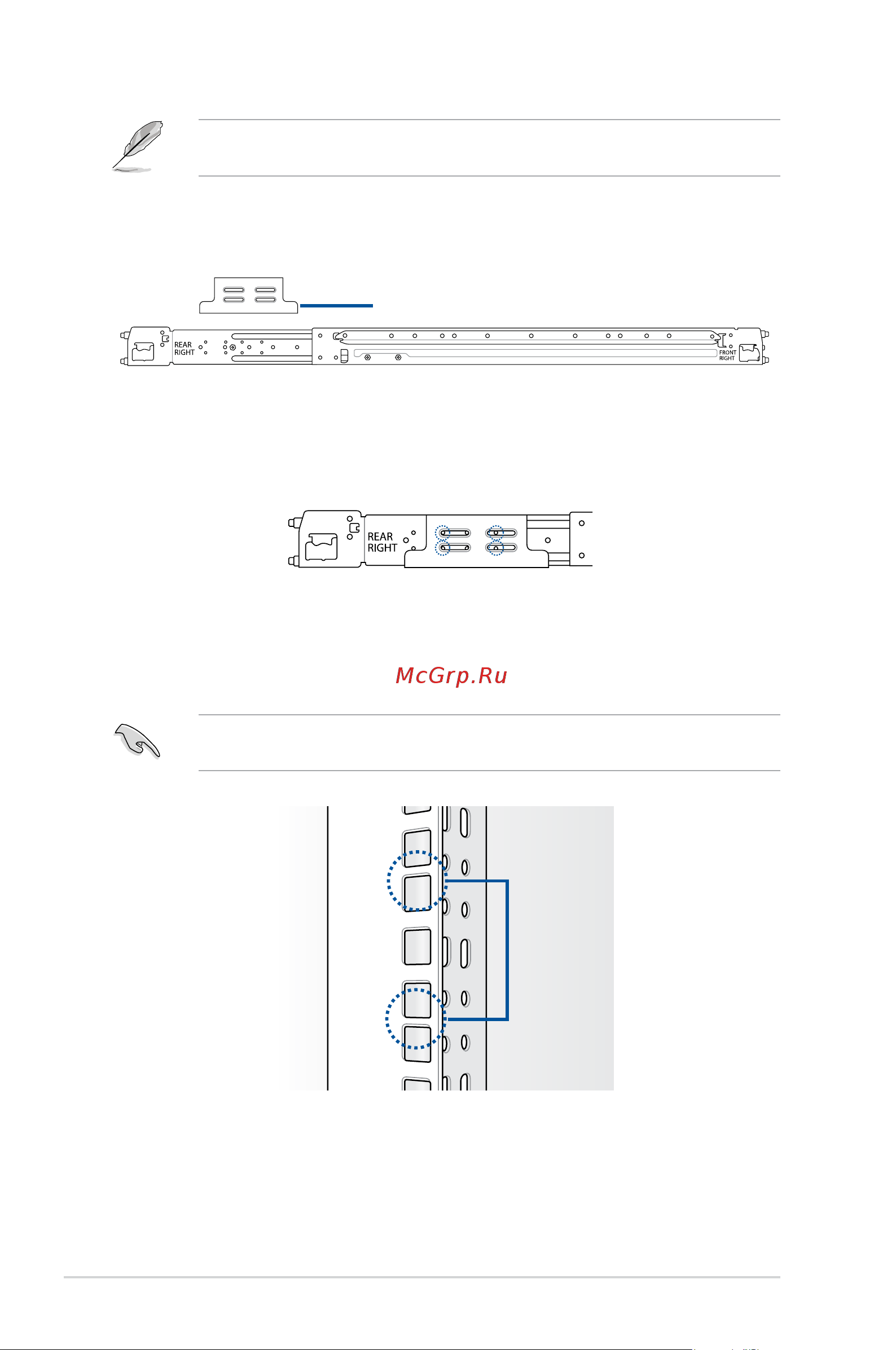

Rail Kit Installation Manual

Follow steps 2 to 4 if the depth of your server rack exceeds 850mm, if the depth of your

server rack is less than 850mm, please skip steps 2 to 4 and proceed with step 5.

2. Slightly slide out and extend the right rack rail, then prepare one of the bundled rail

components.

Rail component

3. Align the rail component with the right rack rail and secure it using four (4) bundled

screws.

4. Follow steps 2 and 3 to secure the rail component to the left rail rack.

5. Select a desired space and place the appropriate rack rail (left and right) on opposite

positions on the rack.

A 1U space is consists of three square mounting holes with two thin lips on the top and the

bottom.
