Rail Kit Installation Manual

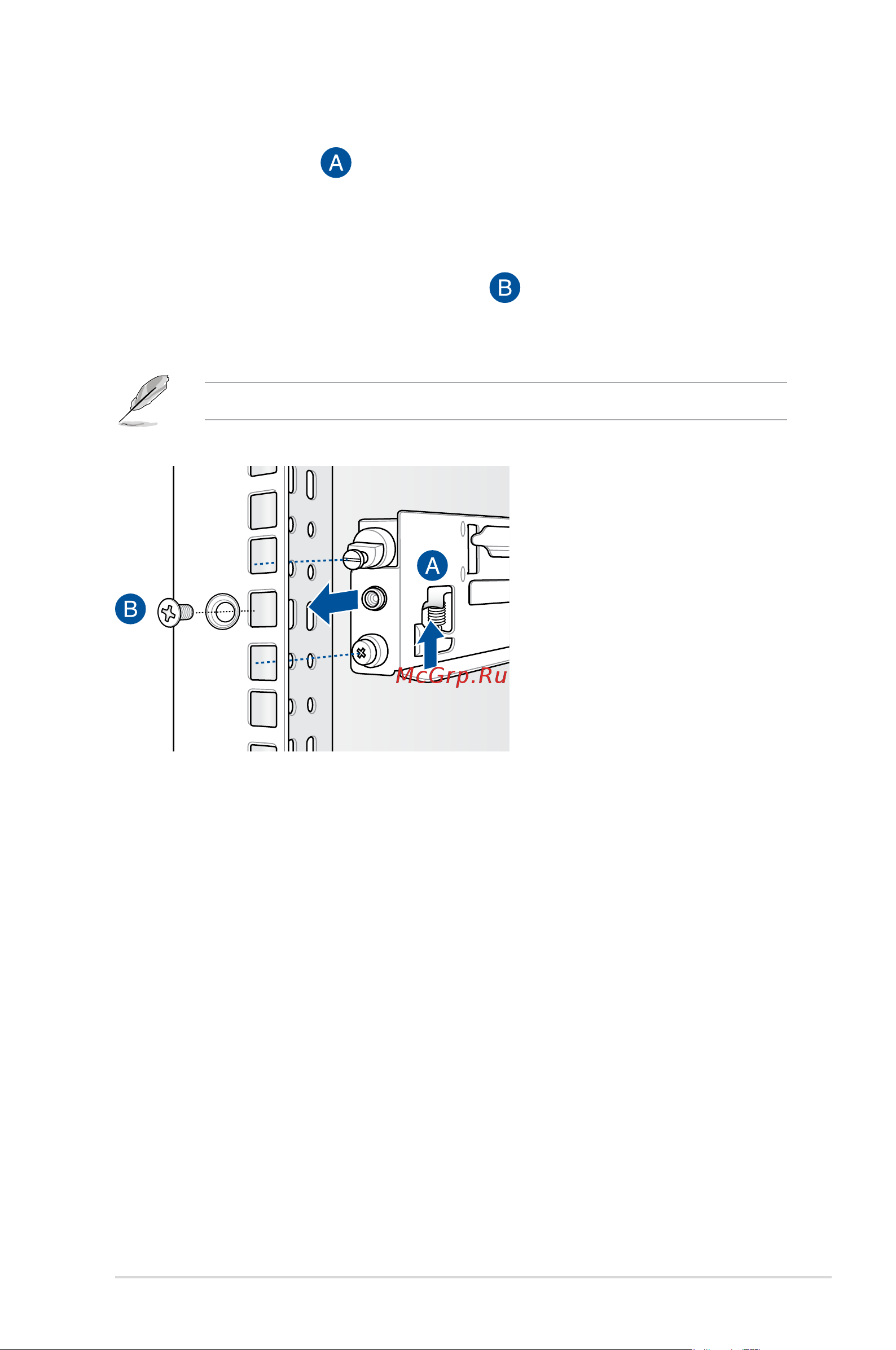

3. Secure the rail components to the rail using the bundled screws.

4 Press the spring lock (

) then insert the studs into the selected square mounting

holes on the rack post.

5. Press the spring lock on the other end of rail then insert the stud into the mounting hole

on the rack post. Extend the rack rail, if necessary.

(Optional) Use the rail screw and rail washer ( ) that comes with the kit to secure

the rack rail to the rack post. Recommended screw torque is less than 14 kgf.cm

7. Perform steps 3 to 5 for the other rack rail.

Ensure that the installed rack rails (left and right) are aligned, secured, and stable in place.

8. Lift the server chassis and insert into the rack rail.
